Audio-Technica VM760SLC
Click to zoom in

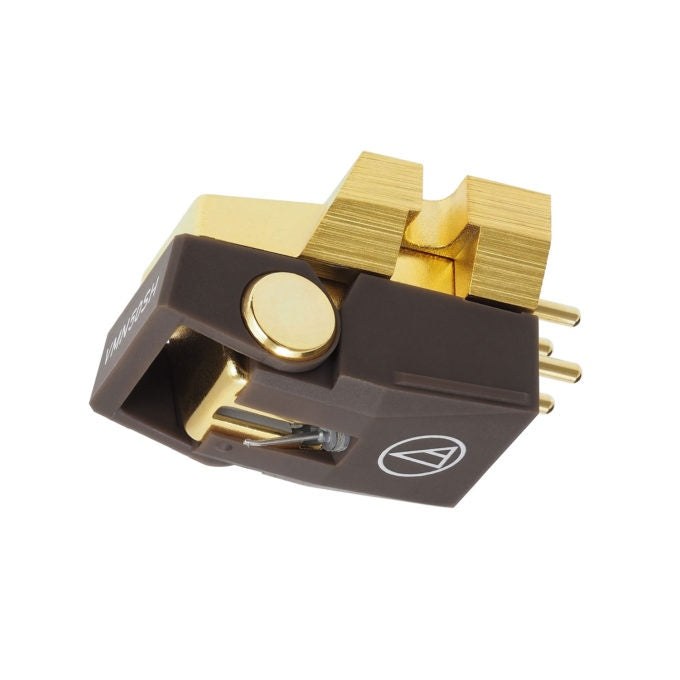

Audio-Technica VM760SLC

$1,199.00
$1,199.00

Audio-Technica VM760SLC

The VM760SLC special line contact stylus cartridge is the flagship model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM760SLC is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s ultra-lightweight special line contact stylus allows it to trace the record groove with incredible accuracy and minimum abrasion, resulting in nuanced audio reproduction, low distortion and low record wear. Includes mounting hardware.

Read More
Read Less

Technical Specifications

Performance Characteristics
Frequency Response

20-30,000 Hz

Channel Separation

30 dB (1 kHz)

Channel Balance

1.0 dB (1 kHz)

Output

4.0 mV (at 1 kHz, 5 cm/sec)

Vertical Tracking Force

1.8-2.2 g (2.0 g standard)

Vertical Tracking Angle

23°

Stylus Specifications

Stylus Shape

1.5 × 0.28 mil special line contact

Stylus Construction

Nude rectangular shank

Cantilever

Aluminum tapered pipe

Compliance & Impedance

Static Compliance

40 × 10⁻⁶ cm/dyne

Dynamic Compliance

10 × 10⁻⁶ cm/dyne (100 Hz)

Coil Impedance

2,700 ohms (1 kHz)

DC Resistance

800 ohms

Coil Inductance

460 mH (1 kHz)

Recommended Load Impedance

47,000 ohms

Load Capacitance

100-200 pF

Mounting & Replacement

Mount

Half-inch

Replacement Stylus

VMN60SLC

Physical Specifications

Dimensions

17.3 mm H × 17.0 mm W × 28.2 mm D

Weight

8.0 g

Accessories

Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts, non-magnetic screwdriver, brush, lead wire set
