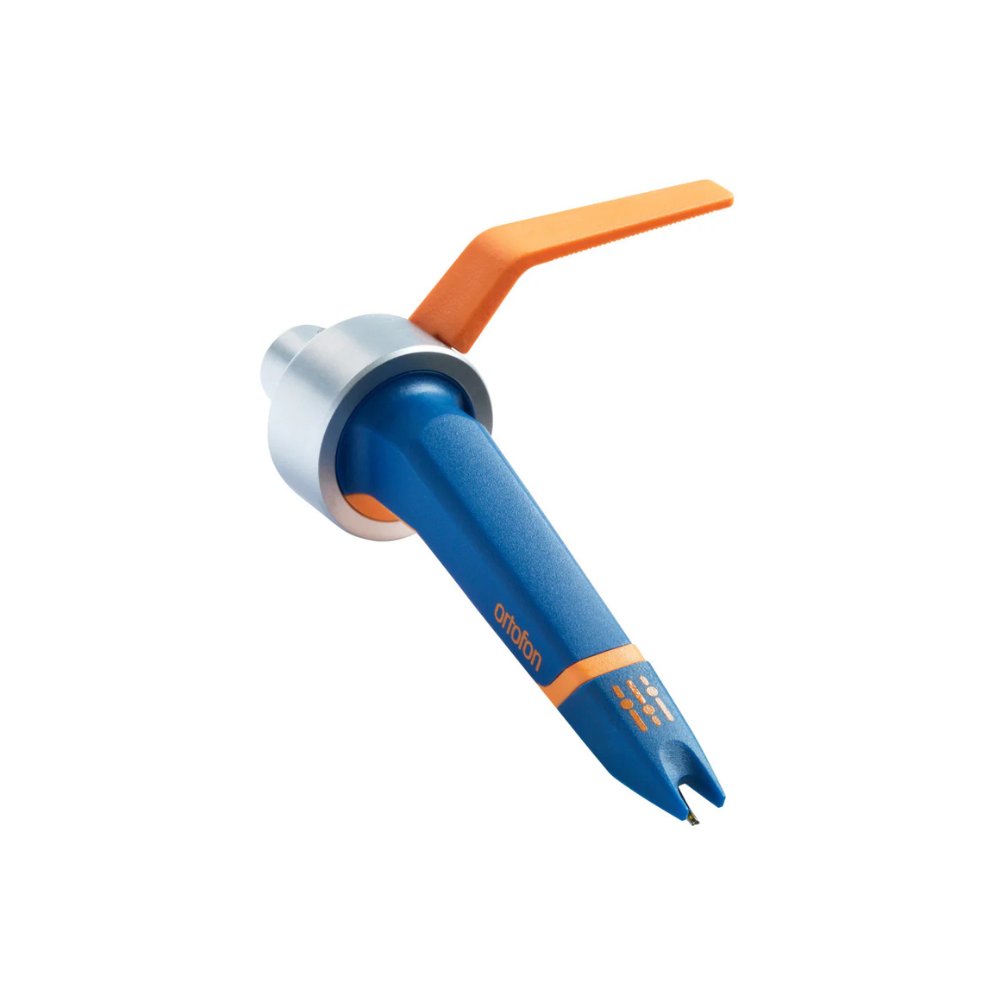

Ortofon Concorde MKII DJ
Ortofon Concorde MKII DJ
Ortofon Concorde MKII DJ
Click to zoom in

Ortofon Concorde MKII DJ

$189.00 $179.00
$179.00

Ortofon Concorde MKII DJ

The Concorde DJ is considered the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling. Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear.

Accuracy level

The DJ is great for any style of music. It has a spherical stylus and an extremely balanced cantilever that provides outstanding rigidity. Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear. All in all: improved tracking, alongside of accurate sound reproduction and an excellent groove handling.

Output

The Concorde MKII DJ cartridge guarantees exceptional sound quality and precise tracking capabilities. Additionally, it offers a balanced output of 6 mV and remarkable transparency across the entire sonic spectrum.

Read More
Read Less
Channel Balance at 1 kHz

1 dB

Output Voltage at 1 kHz, 5 cm/sec

6 mV

Channel Separation at 1 kHz

22 dB

Tracking Ability at 315 Hz

100 µm

Compliance, Dynamic, Lateral

14 µm/mN

Cantilever Material

Aluminium

Stylus Type

Spherical diamond

Stylus Tip Radius

R 18 µm

Tracking Force Range

3 – 5 g

Tracking Force, Recommended

4 g

Internal Impedance, DC Resistance

700 Ohm

Cartridge Weight

18.5 g

Recommended Load Resistance

47 kOhm

Internal Inductance

450 mH

Recommended Load Capacitance

200 – 600 pF
