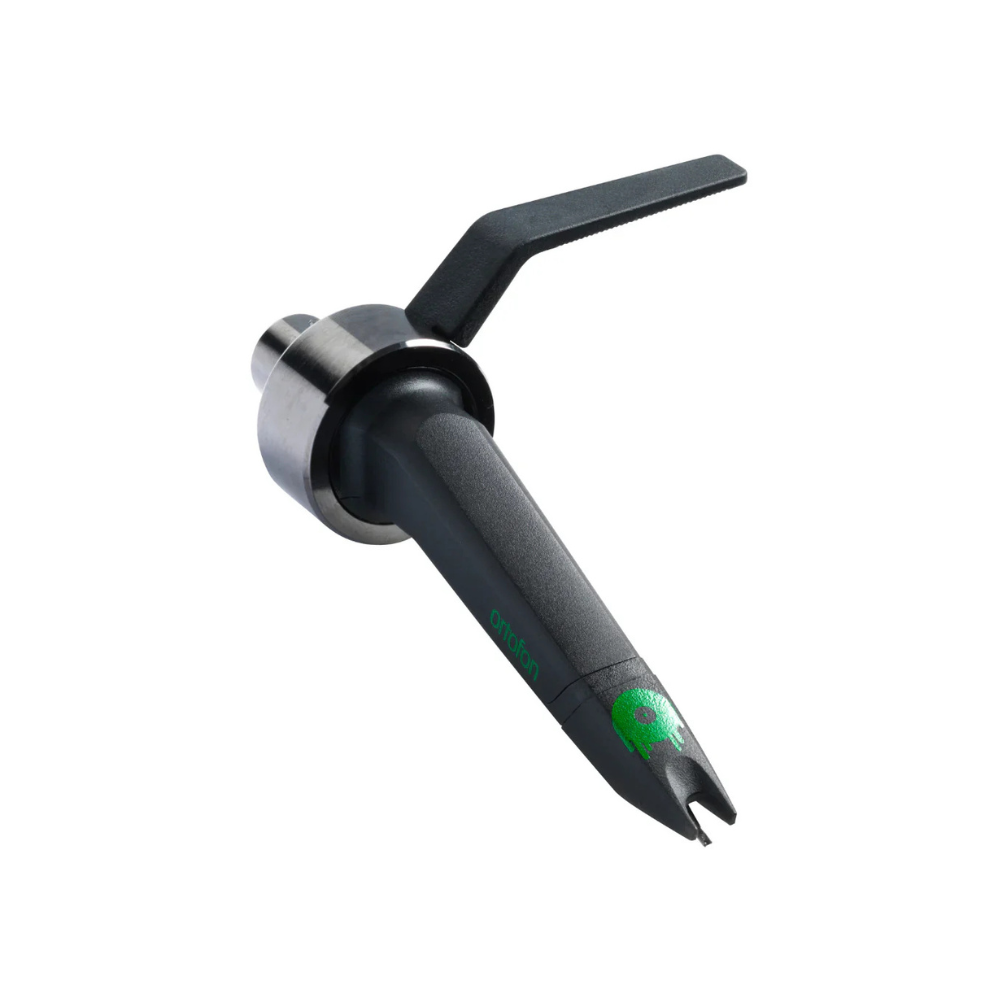

Ortofon Concorde MKII Mix
Click to zoom in
Load image into Gallery viewer, Ortofon Concorde MKII Mix

Ortofon Concorde MKII Mix

$159.00
$159.00
Ortofon 2M Red
Ortofon 2M Red
$179.00 $159.00
Ortofon 2MR Red
Ortofon 2MR Red
$179.00 $161.00
Ortofon Concorde MKII Mix
Description

The MIX is a general-purpose model for scratch and back-cueing, providing great performance and durability. With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.

Stylus

The Concorde MKII MIX provides great performance and durability with a good quality spherical stylus and a solid cantilever and serves general purposes well.

Output

At the forefront of the Concorde series, the MIX cartridge not only offers a pocket-friendly option but also ensures high sound quality and adept tracking ability. Moreover, it provides a reasonable output of 6 mV and transparency across the sonic spectrum.

Specifications

  • Channel balance at 1 kHz
    1,5 dB
  • Output voltage at 1 kHz, 5cm/sec
    6 mV
  • Channel separation at 1 kHz
    20 dB
  • Tracking ability at 315Hz
    100 μm
  • Compliance, dynamic, lateral
    14 μm/m N
  • Cantilever material
    Aluminium
  • Stylus type
    Spherical diamond
  • Stylus tip radius
    R 18 μm
  • Tracking force range
    2 - 4 g
  • Tracking force, recommended
    3 g
  • Internal impedance, DC resistance
    700 Ohm
  • Cartridge weight
    18,5 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    450 mH
  • Recommended load capacitance
    200-600 pF
Read More
Read Less
