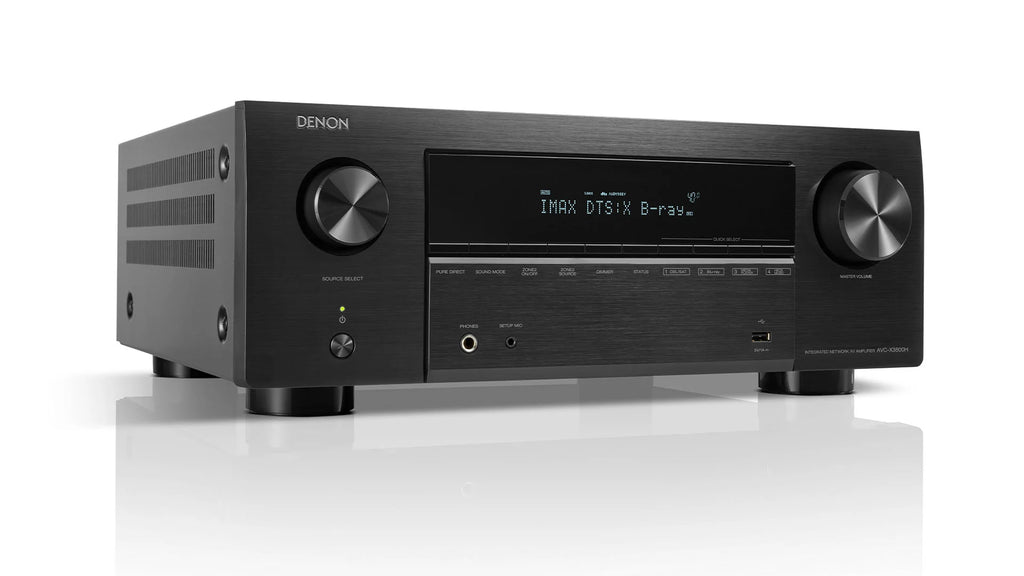

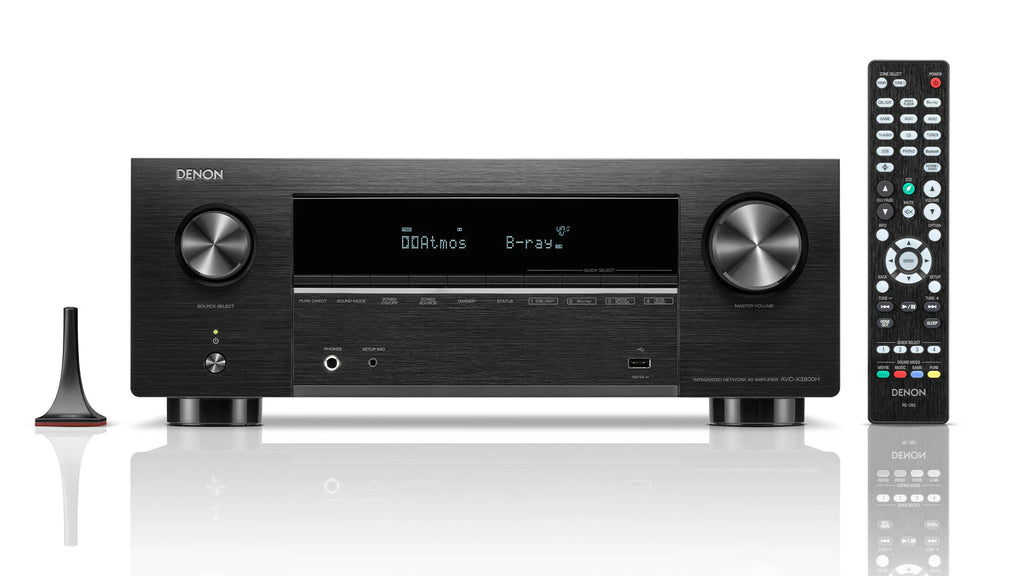

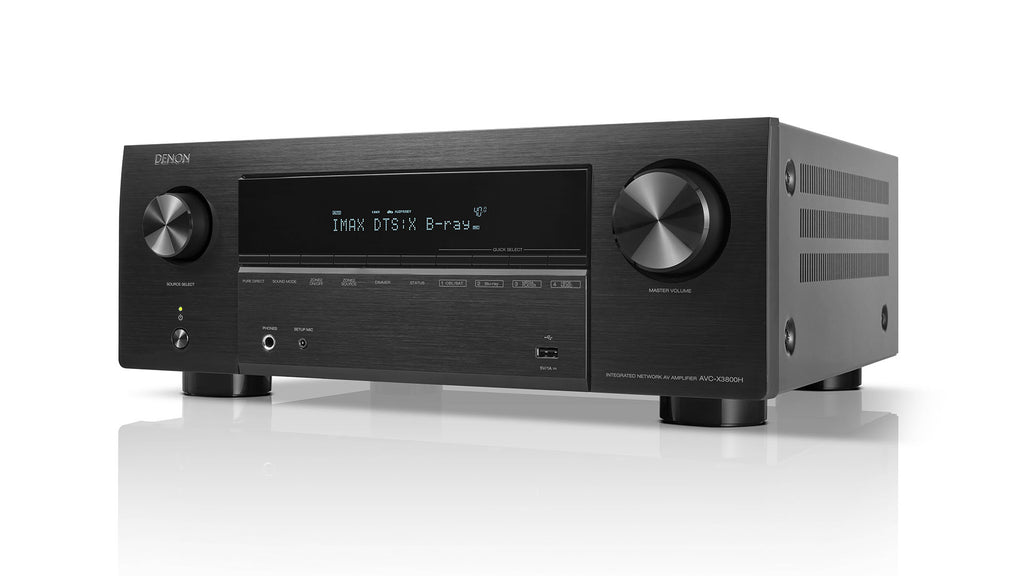

With nine channels of amplification, up to four independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVC-X3800H envelops larger living spaces in theater-quality sound. Enjoy amazing 8K video quality and with HEOS® Built-in, wirelessly stream and share online music between rooms.
- Enveloping 3D audio: Feel like you're in the center of the action with enveloping 3D sound.
- Expert ready: You'll be amazed at the available configuration options to best fit your space.
- Geared for 8K: Enjoy amazing video quality from the latest 8K technology available.
- Optimize for your room: Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional upgrade available with future SW
Dolby Atmos
Feel every dimension in Dolby Atmos. Upgrade your home theater with height speakers to unleash a fully immersive 3D audio experience from Dolby Atmos content. Dolby Surround upmixer engages all speakers to create 3D audio sensation from legacy content. Dolby Atmos Height Virtualization Technology creates the sensation of overhead sound even without height speakers. You can also enjoy Dolby Atmos music tracks available from Apple Music, Amazon HD and TIDAL and a compatible streaming device.
DTS:X
DTS:X immersive audio sound where it would naturally occur in space, creating lifelike, multi-dimensional audio. DTS Neural:X upmixer offers improved immersion and heightened realism for legacy content. DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 7.1, 5.1, or 2.1speaker setup.
IMAX Enhanced
Get the most premium at-home entertainment experience with IMAX Enhanced the latest technology from DTS that sets a new standard for home theater imaging, sound, scale, and clarity. See clearer pictures and brighter images. Feel immersive, heart-pounding audio and experience premium content digitally remastered by IMAX. You can enjoy IMAX Enhanced experience starting from the 5.1.4 speaker setup. IMAX Enhanced compatible TV or projector is required.
Auro 3D
Auro 3D elevates the home theater experience to amazing new levels by delivering the excitement of three-dimensional sound for music, games, broadcast, and films, putting you in a cocoon of life-like sound. Turn your existing audio-visual collection into an Auro 3D experience, thanks to the Auro-Matic upmixing engine. Supports up to 7.1.4.Auro 3D speaker configuration with an external 2 channel amplifier.
SPECIFICATIONS
MULTICHANNEL SURROUND
| DTS HD Master, DTS:X, DTS:X Pro | Yes, Yes, No |
| DTS Neo:X, DTS Neural:X | No, Yes |
| DTS Virtual:X | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music | Yes, Yes, Yes, Yes |
| Dolby ProLogic Ilz, Dolby Surround | No, Yes |
| Auro 3D | Yes |
| 360 Reality Audio / MPEG H | Yes, Yes |
| Multichannel Stereo | Yes |
| Max. Number of Processing (Pre-Amp) Channels | 11.4 |
SOUND ENHANCEMENTS
| Discrete Power Amplifier | Yes |
| Pure Direct | Yes |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ, Dynamic Volume | Yes, Yes |
| Audyssey LFC | Yes |
| Dirac Live Upgradability | Yes |
| Compressed Audio Restorer | Yes |
NETWORK
| Media Server | Yes |
| HEOS Wireless Multi-Room Technology | Yes |
| Alexa / Google Voice Assistant / Apple HomePod | Yes, Yes, Yes |
| Lossy Formats: MP3, WMA, AAC | Yes, Yes, Yes |
| Lossless Formats: FLAC, ALAC, WAV | Yes, Yes, Yes |
| Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) | Yes, Yes, Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| AirPlay 2 | Yes |
| TuneIn | Yes |
| Spotify Connect | Yes |
| Roon Tested | Yes |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI
| HDMI Inputs: Back, Front | 6, No |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main, Zone | 2, 1 |
| HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB | Yes, Yes |
| HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR | Yes , Yes, Yes, Yes, Yes |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate, Quick Flame Transport, Quick Media Switching | Yes, Yes, No |
| 3D Signal Pass-through | Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes, Yes, Yes |
| DSD Audio Capability | Yes |
| Audio Return Channel (ARC), Enhanced ARC | Yes, Yes |
| Auto LipSync | Yes |
MULTI-ROOM CI
| Multi-Room Zones | 2 |
| Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog | Yes (2ch), Yes (2ch), Yes, Yes |
| Zone Audio Output: Speaker, Pre-Out | Yes, Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP Control, RS232 Control, Web Control, App Control | Yes, Yes /Yes, Yes |
| Remote In / Out | Yes, Yes |
| DC Trigger Output | 1 |
| HDMI Diagnostics | Yes |
OTHERS
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 Dirac Live (upgrade) |
| Front Display | 1-Line FLD |
| GUI Languages | 3 |
| Setup Assistent | Yes |
| Quick Select Plus, Quick Select | Yes, No |
| Variable Crossover | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |

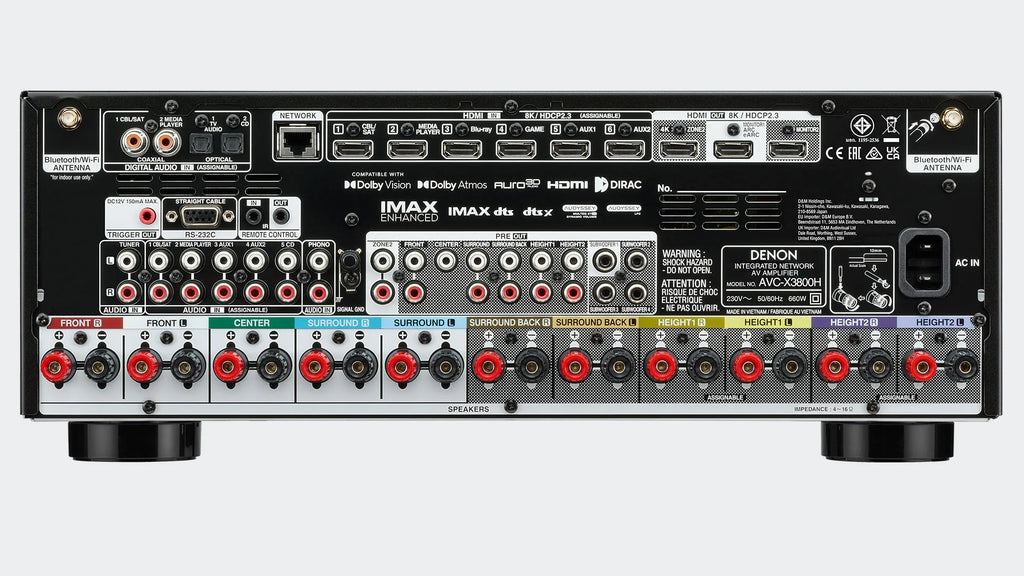

INPUTS OUTPUTS
| HDMI In, Out | 6, 3 |
| Multi-Room Video Out: Video, HDMI | No, Yes |
| Analog In, Out | 6 / No |
| Phono (MM) In | Yes |
| Digital In: Optical, Coaxial | 2 / 2 |
| Multi-Room Out: Analog, Digital | 1 / No |
| Multichannel Preout | Yes (11.4) |
| Subwoofer Out | 4 (independent) |
| Speaker Terminal: Gold-Plated Screw, Regular Screw | No, Yes |
| Number of Speaker Terminals | 11 |
| Speaker A / B | Assignable |
| Bi-amp Drive | Assignable |
| Multi-Room Speaker Terminal | Assignable |
| Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB | No, No, No, No, Yes |
| USB Audio, Made for iPod, Made for iPhone | Yes, No, No |
| AM/FM Tuner | Yes |
SPECIFICATIONS
| Number of Power Amps | 9 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 105W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 135W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 180W |
GENERAL
| System Remote Control | RC-1253 |
| Pre-Programmed, Learnable, LCD Display | No, No, No |
| Power Consumption in W | 660W |
| Power Consumption No-Sound (ECO On / Off) in W | 60W/100W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm ( Antenna:Vertical :(W x D x H) in mm) 【 w/o Antenna :(W x D x H) in mm】 |
434 x 389 x 167 ( 434 x 389 x 236 ) 【 434 x 379x 167 】 |
| Weight in kg | 12.5 |
| Carton Weight (inc. product) in kg | 15.1 |
