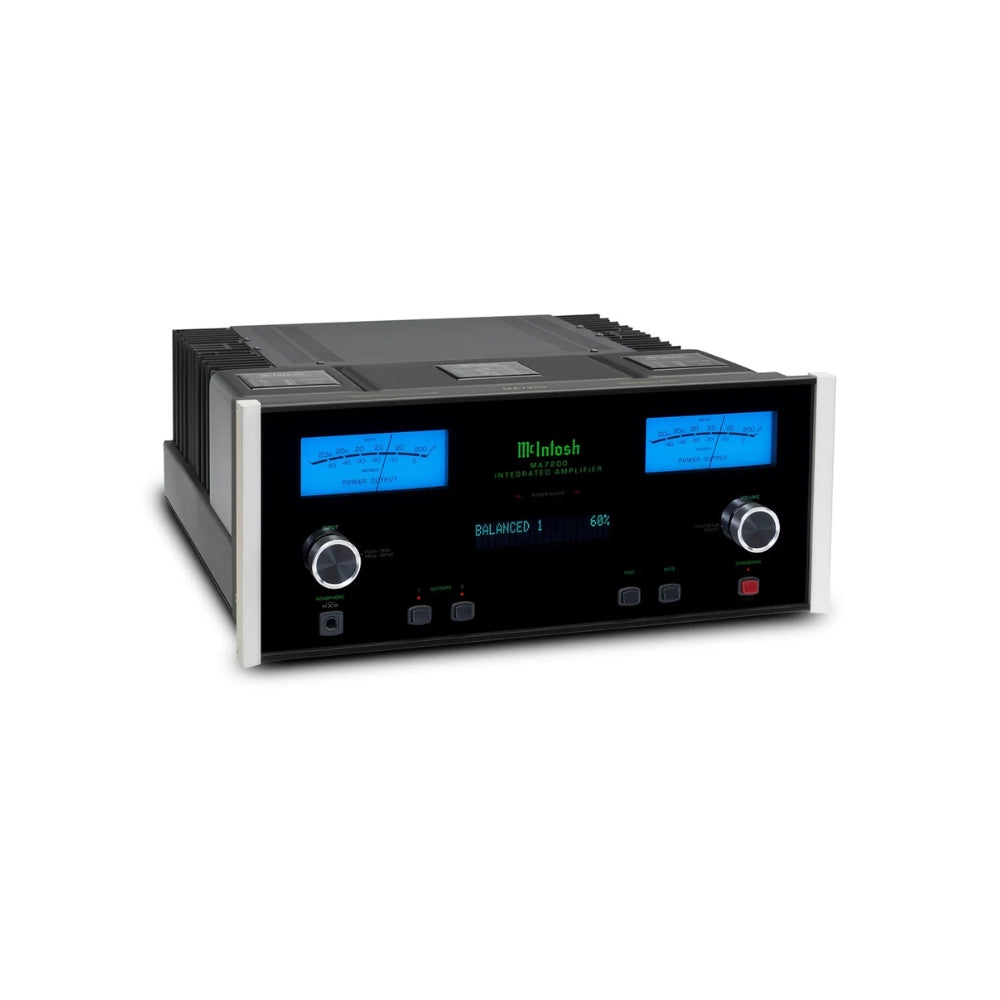

McIntosh MA7200
McIntosh MA7200
McIntosh MA7200
McIntosh MA7200
Click to zoom in

McIntosh MA7200

$17,995.00
$17,995.00

McIntosh MA7200

Offering 200 Watts per channel and 14 total inputs, the space-saving MA7200 Integrated Amplifier can easily become the core of your 2-channel home audio system. With powerful amplification, extensive analog and digital connectivity, and future-ready modular design, the MA7200 delivers uncompromising McIntosh performance.

Features

  • 200 Watts per channel integrated amplifier
  • 14 total inputs including analog, digital, MM and MC phono
  • DA1 Digital Audio Module with upgrade path to DA2
  • Quad Balanced 32-bit DAC for high-resolution audio
  • USB input supports up to DSD256 and DXD 384kHz
  • Autoformer™ technology delivers full power to any speaker impedance
  • Monogrammed Heatsinks™ for efficient heat dissipation
  • Power Guard®, Sentry Monitor™ and Home Theater PassThru
  • High Drive headphone amplifier with HXD®
  • Roon Tested certified for seamless music streaming

High Power & Connectivity

The MA7200 offers 8 analog inputs including balanced, moving coil and moving magnet phono stages, plus 6 digital inputs including USB, coaxial, optical and MCT for SACD/CD playback.

McIntosh Engineering

Features iconic McIntosh technologies including Autoformers™, Power Guard®, Sentry Monitor™, tone controls, gold-plated speaker binding posts, and Monogrammed Heatsinks™ for instant peak performance.

Future-Ready Digital Audio

The DA1 Digital Audio Module supports high-resolution formats up to 32-bit/384kHz and DSD256, and can be upgraded to newer modules like DA2 to stay current with evolving digital audio technologies.
Read More
Read Less

ELECTRONIC SPECIFICATIONS

FTC Power Output Rating

200 W

Power Output per Channel

200 W into 2, 4, or 8 ohms

Number of Channels

2

Rated Power Band

20 Hz to 20 kHz

Total Harmonic Distortion

0.005%

Dynamic Headroom

2 dB

Frequency Response (+0, -0.5 dB)

20 Hz to 20 kHz

Frequency Response (+0, -3 dB)

10 Hz to 100 kHz

Sensitivity – Phono (Moving Coil)

0.25 mV

Sensitivity – Phono (Moving Magnet)

2.5 mV

Sensitivity – High Level (Balanced / Unbalanced)

0.5 V / 0.25 V

Sensitivity – Power Amp Input

1.4 V

Signal to Noise Ratio – Moving Coil

80 dB

Signal to Noise Ratio – Moving Magnet

82 dB

Signal to Noise Ratio – High Level

95 dB

Signal to Noise Ratio – Power Amp Input

113 dB

Input Impedance (Balanced / Unbalanced)

20K / 20K

Damping Factor

40

Maximum Output (Unbalanced)

8 V Unbalanced

CONNECTIVITY

Balanced Input

1

Unbalanced Input

5

Phono Input – Moving Coil

1 (adjustable loading)

Phono Input – Moving Magnet

1 (fixed loading)

Upgradeable Digital Audio Module

Yes: DA1

Digital Coaxial Input

2

Digital Optical Input

2

Digital MCT Input

1

Digital USB Input

1

HDMI (ARC) Input

0

Balanced Variable Output

0

Unbalanced Fixed Output

0

Unbalanced Variable Output

2

Headphone Output

1/4" High Drive with Headphone Crossfeed Director (HXD®)

Subwoofer Output

0

AM/FM Tuner Option

No

Home Theater PassThru

Yes

Unbalanced Analog Connector Type

Standard

Speaker Binding Post Type

Standard

Service Port

1

DIGITAL AUDIO SPECIFICATIONS

Digital-to-Analog Converter (DAC) Type

8-channel, 32-bit / 384 kHz PCM / DSD, Quad Balanced

Digital Coaxial Input Sample Rate

24-bit / 44.1 kHz to 192 kHz

Digital Optical Input Sample Rate

24-bit / 44.1 kHz to 192 kHz

Digital MCT Input Sample Rate
  • 16-bit / 44.1 kHz (CD)
  • DSD64 (SACD)
Digital USB Input Sample Rate
  • 32-bit / 44.1 kHz to 384 kHz (PCM)
  • DSD64, DSD128, DSD256
  • DXD352.8 kHz, DXD384 kHz

CONTROL

Tone Controls

Bass and Treble

Tone Bypass and Input Assign

Yes

RS232 Control Input

Yes

Power Control Output

1 Main, 2 Trigger

Rear Panel Data Port

4

Rear Panel IR Sensor Input

Yes

Input Level Match

Yes

GENERAL SPECIFICATIONS

Amplifier Type

Solid State

Output Type

Autoformer™

Output Meters

Yes

Dual Layer Chassis

Yes

Chassis Finish

Black painted steel

Heatsinks

McIntosh Monogrammed Heatsinks™

Power Requirement

120 V, 50/60 Hz, 4.4 amps

Standby Power Requirement

< 0.25 Watts

WEIGHTS & DIMENSIONS
Unit Dimensions (W × H × D)

44.5 cm × 19.4 cm × 47.6 cm

Unit Weight

34.1 kg

Shipping Weight

42.3 kg
