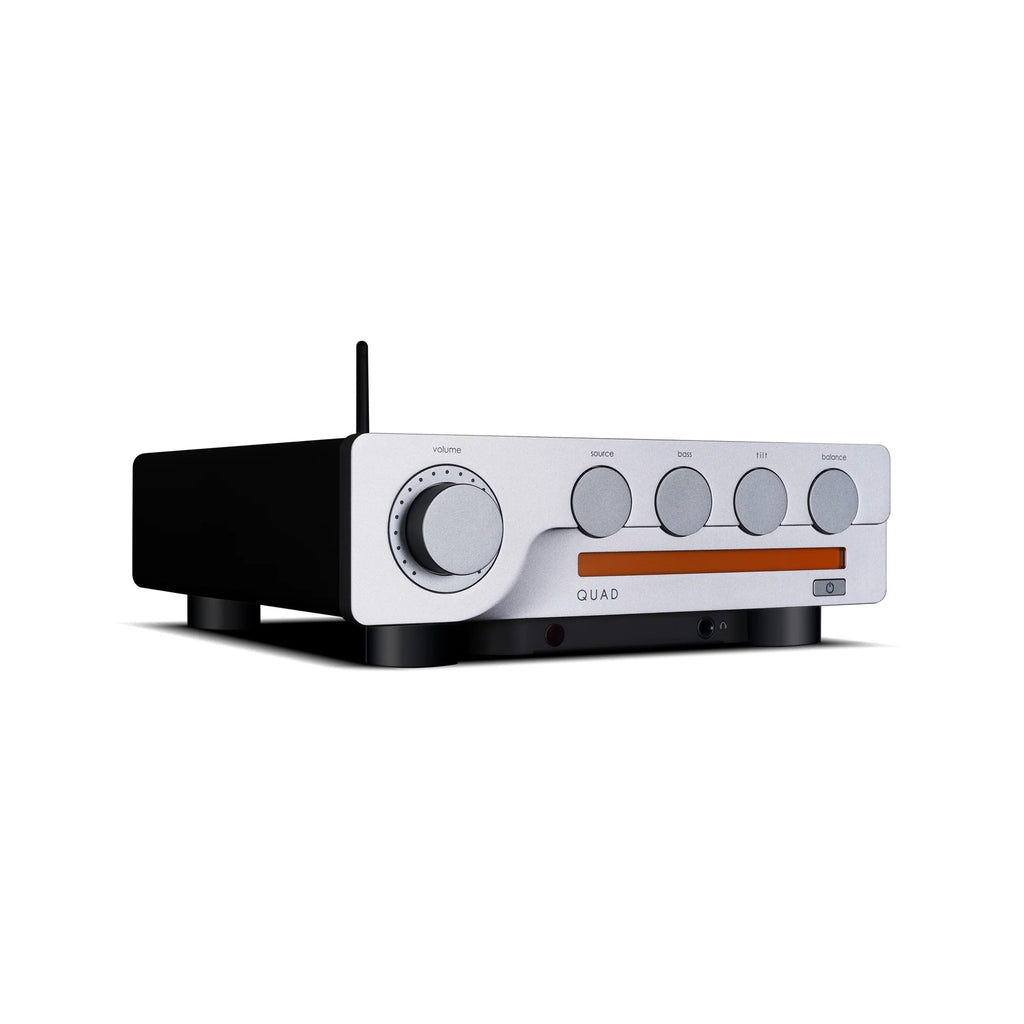

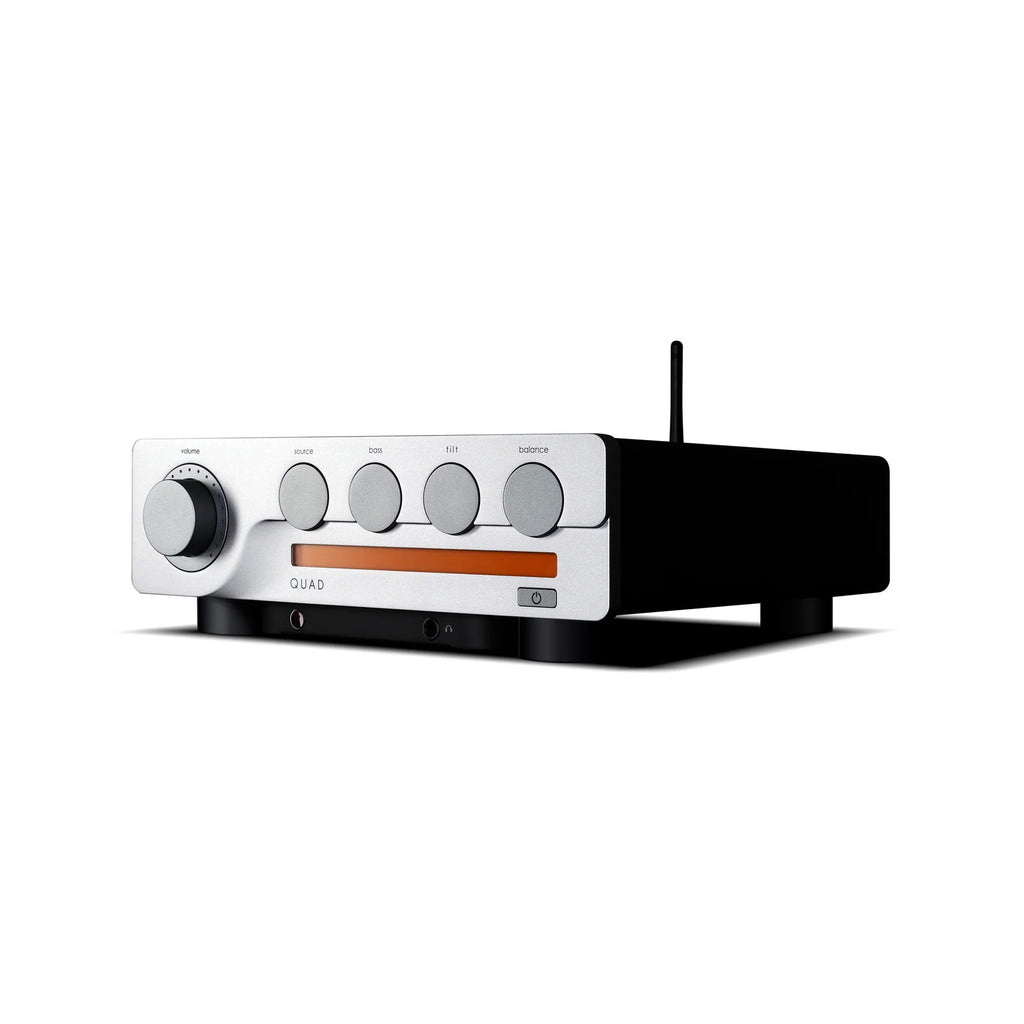

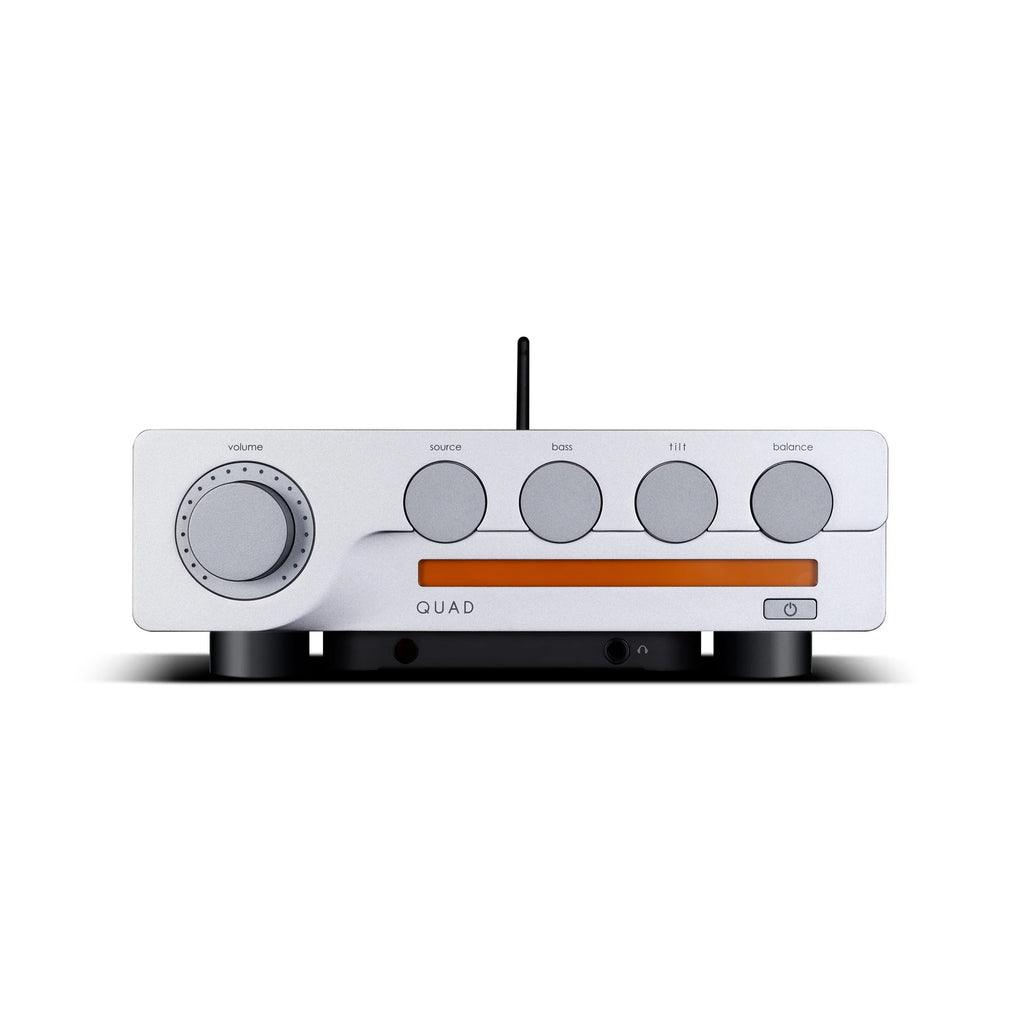

Quad 3
Description

The QUAD 3 brings a stunning blend of timeless QUAD design and cutting-edge technology, delivering an integrated amplifier solution that caters to both traditional analogue enthusiasts and modern digital audiophiles alike.

OLD SOUL, NEW STANDARD

Quad 3 is a compact integrated amplifier featuring 65W per channel (8Ω) Class AB amplification, a high-performance ESS9038Q2M DAC, MM phono stage, and HDMI ARC. With extensive digital and analogue connectivity, it’s ideal for modern two-channel listeners who demand versatility, clarity, and classic design.



RAIDERS OF THE LOST ARC

Quad 3’s HDMI ARC input creates perfect symmetry between your TV and two-channel stereo system, unlocking richer, more articulate sound from movies, series, music streaming, and games––all with the convenience of single-cable simplicity and volume control via your TV remote.



HEADROOM NOT HEADACHES

A custom-engineered Class AB amplifier—driven by a 235VA toroidal transformer and 30,000uF capacitor bank—forms an architecture built for dynamic headroom and confident drive. Quad 3 delivers remarkable control, so that even at low volumes bass lines stay grounded and transients land with authority.

Read More
Read Less

General

Power Amp Section — Class AB, 2 x 65W (8 ohm), 2 x 100W (4 ohm)

DAC — ES9038Q2M 32-bit

Bluetooth — 5.1 (aptX/aptX HD) Streaming

Phono Stage — Dedicated High Performance Low Noise MM

Headphone Amp — Dedicated Current-Feedback

Tone Controls — Built-in Bass and Tilt adjustment

Firmware — USB Firmware Upgrade

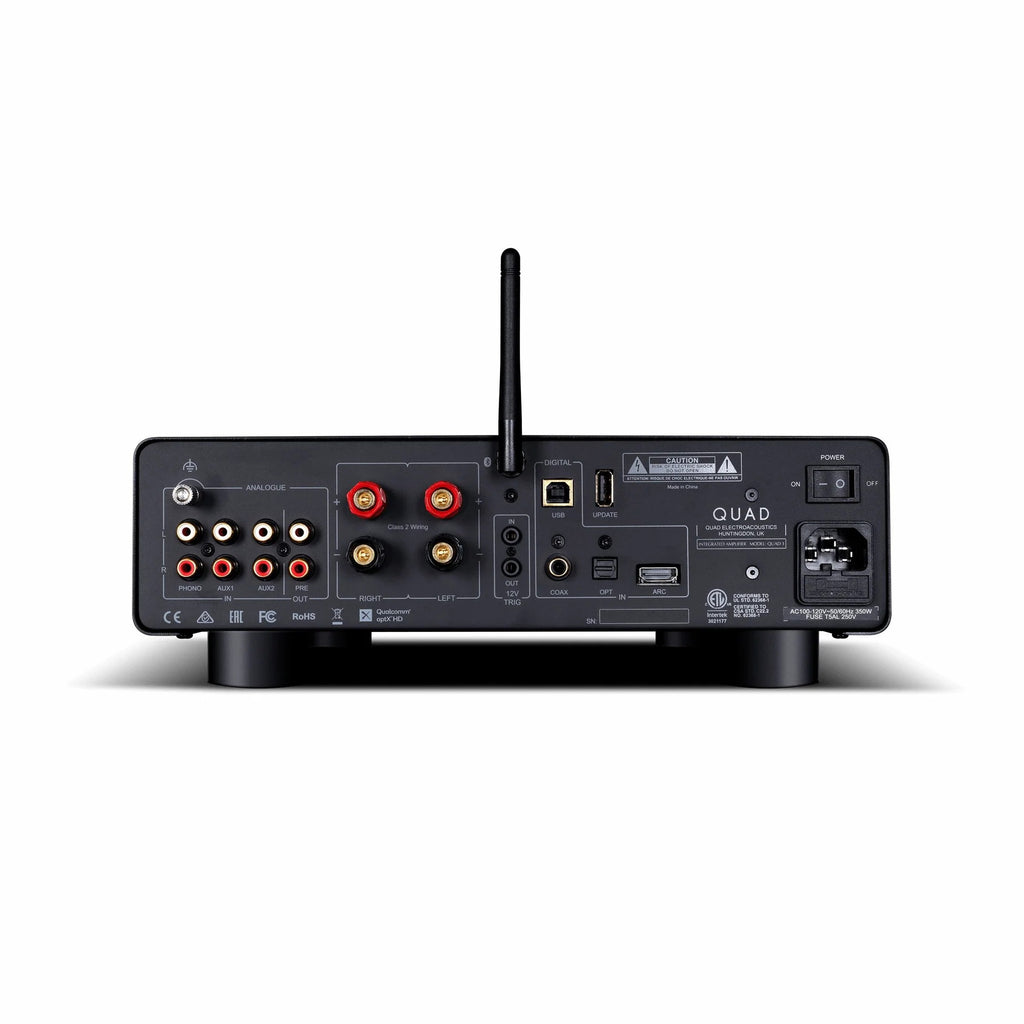

Inputs & Outputs

Analogue Inputs — 2 x Aux, 1 x Phono (MM)

Digital Inputs — 1 x SPDIF (Coax), 1 x SPDIF (Optical), 1 x PC USB

HDMI — 1 x HDMI ARC

Wireless — 1 x Bluetooth (aptX/aptX HD)

Trigger — 1 x 12V Trigger (In)

Outputs — 1 x Pre Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger

Sampling Frequency

Optical/Coaxial — 44.1kHz–192kHz

PC USB — 44.1kHz–768kHz (PCM) / DSD64, DSD128, DSD256, DSD512

Preamplifier Section

Gain (max.) — +0dB (Line), +47dB (Phono MM)

Input Sensitivity — 800mVrms (Line, Volume = 0dB), 3.6mV (Phono MM, Volume = 0dB)

Input Impedance — 10K (Line), 47K / 100pF (Phono MM)

Total Harmonic Distortion — <0.001% (1kHz @ 2V, Volume = 0dB)

Frequency Response — 20Hz–20kHz (±0.1dB)

Output Voltage — 2.3V max. (Volume = 0dB)

Output Impedance — 120 ohm

Signal-to-Noise Ratio — >110dB (A-weighted), >78dB (Phono MM, A-weighted)

DAC

D/A Converter — ES9038Q2M

Total Harmonic Distortion — <0.001% (1kHz @ 0dBFS)

Output Level — 2.05Vrms (0dBFS, 1kHz)

Max. Sampling Frequency — 192kHz (Optical/Coaxial), PCM 768kHz / DSD512 (PC USB)

Signal-to-Noise Ratio — >116dB (A-weighted)

Power Amplifier Section

Gain — +29dB

Rated Power Output — 2 x 65W (8 ohm, THD<1%), 2 x 100W (4 ohm, THD<1%)

Frequency Response — 20Hz–20kHz (±0.3dB)

Total Harmonic Distortion — <0.003% (1kHz @ 30W/8 ohm)

Input Sensitivity — 800mVrms

Signal-to-Noise Ratio — >110dB (A-weighted)

Max. Output Current — 10A

Headphone Amplifier

Total Harmonic Distortion — <0.01% (1kHz, 50mW)

Output Impedance — 2.35 ohm

Load Impedance — 20–600 ohm

General

Standby Power Consumption — <0.5W

Net Weight — 8kg

Gross Weight — 9.3kg

Dimensions (W x H x D) — 30 x 10.1 x 33.2 cm

Carton Size (W x H x D) — 36.6 x 21.5 x 42 cm

Finish — —

Power Requirements — 220–240V ~ 50/60Hz, 100–120V ~ 50/60Hz (region dependent)

Standard Accessories

Power Cord, Remote Control, User Manual, 2 x AAA batteries
