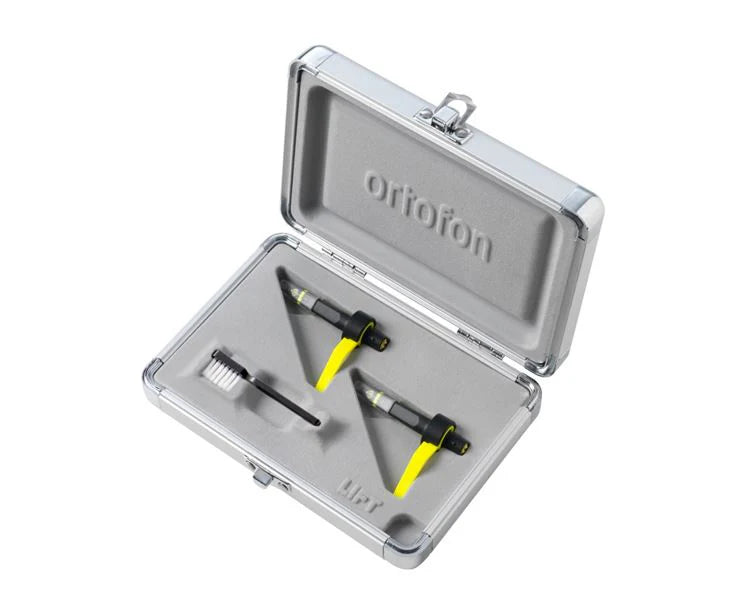

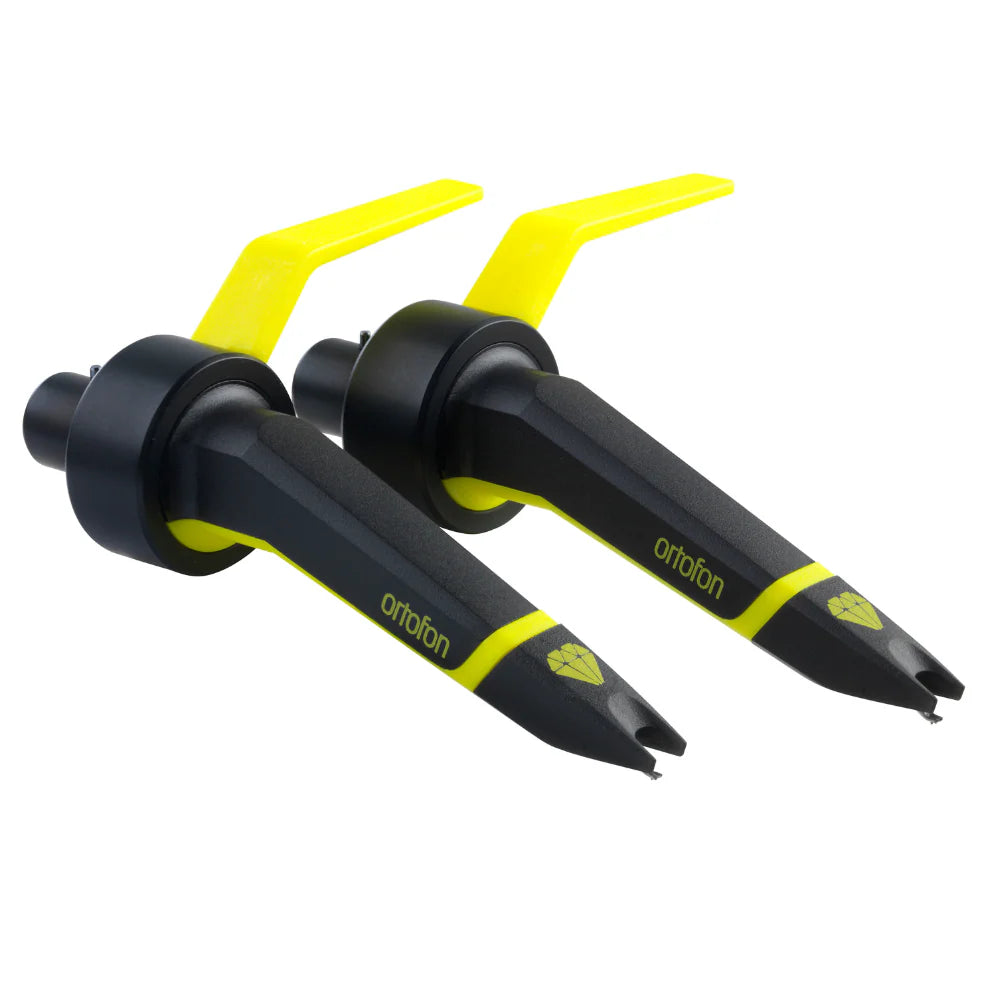

Ortofon Concorde Club MKII Twin

The Concorde CLUB presents outstanding sound quality and an increased output of 8 mV, translating into a robust and vibrant audio performance. This heightened output voltage significantly reduces the demand for preamp gain, resulting in a cleaner and more faithful sound reproduction. Additionally, this attribute minimizes susceptibility to feedback, a particularly advantageous feature when performing in dynamic live environments.

 Specifications

• Channel balance at 1 kHz
  1 dB
• Output voltage at 1 kHz, 5cm/sec
  8 mV
• Channel separation at 1 kHz
  25 dB
• Tracking ability at 315Hz
  100 μm
• Compliance, dynamic, lateral
  14 μm/m N
• Cantilever material
  Aluminium
• Stylus type
  Special Elliptical diamond
• Stylus tip radius
  r/R 13/25 μm
• Tracking force range
  2 - 4 g
• Tracking force, recommended
  3 g
• Internal impedance, DC resistance
  1000 Ohm
• Recommended load impedance
  200-600 pF
• Cartridge weight
  18,5 g
• Recommended load resistance
  47 kOhm
• Internal inductance
  650 mH
