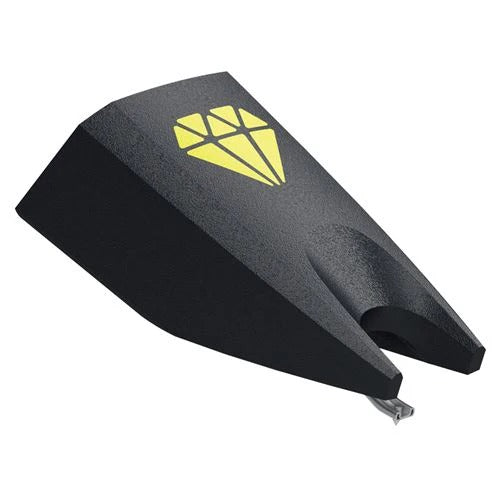

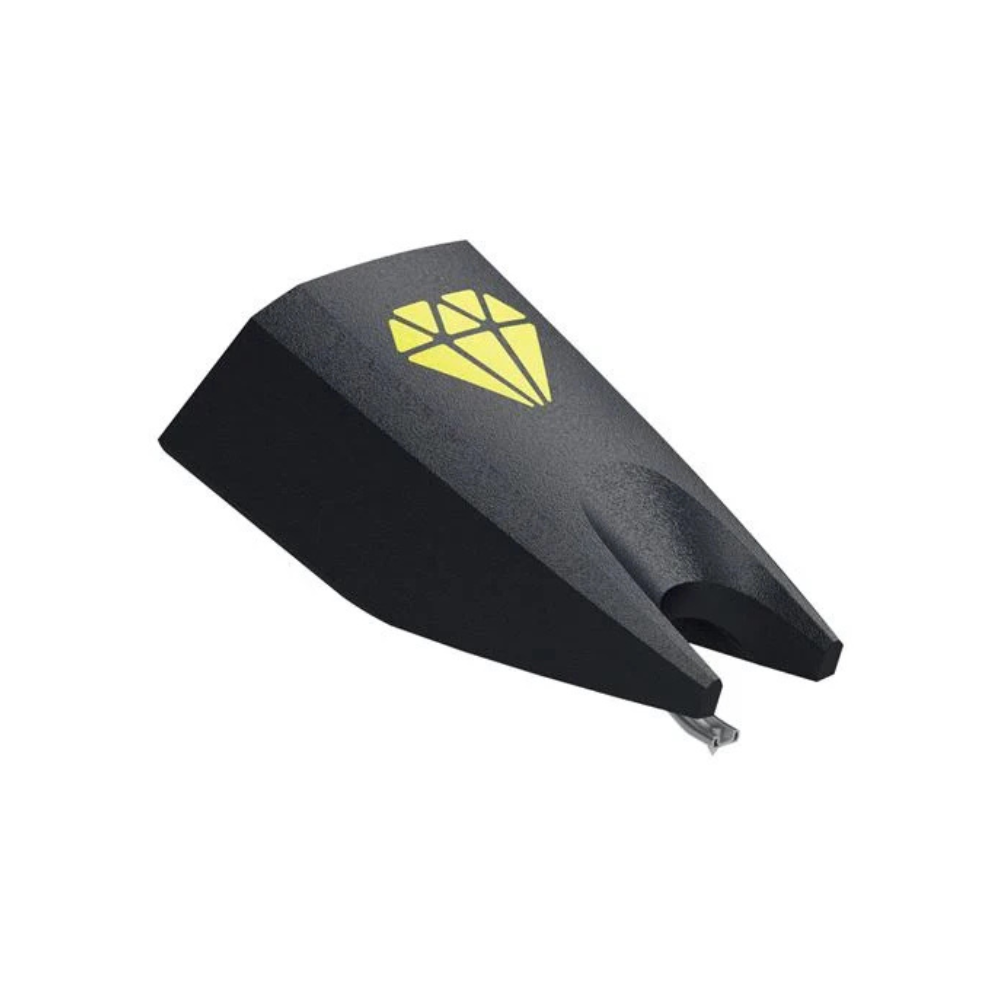

Ortofon Concorde MKII Club Stylus

The replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.

Specifications

• Channel balance at 1 kHz
  1 dB
• Output voltage at 1 kHz, 5cm/sec
  8 mV
• Channel separation at 1 kHz
  25 dB
• Tracking ability at 315 Hz
  100 μm
• Compliance, dynamic, lateral
  14 μm/m N
• Stylus type
  Special Elliptical
• Stylus tip radius
  r/R 13/25 μm
• Tracking force range
  2 - 4 g
• Tracking force, recommended
  3 g
• Cartridge weight
  stylus = 1 g
