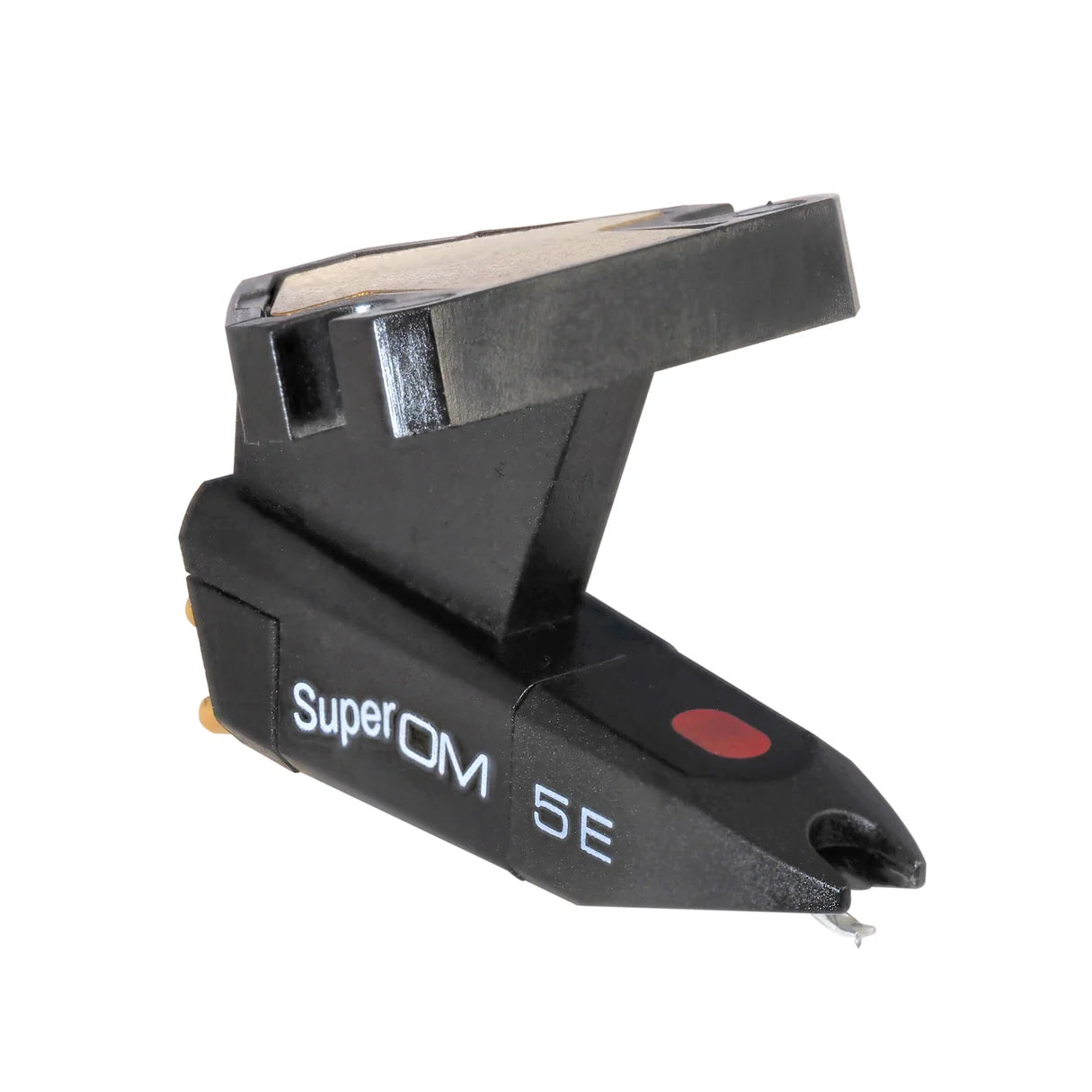

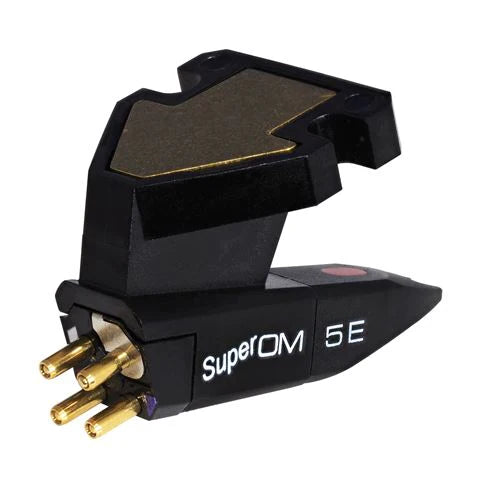

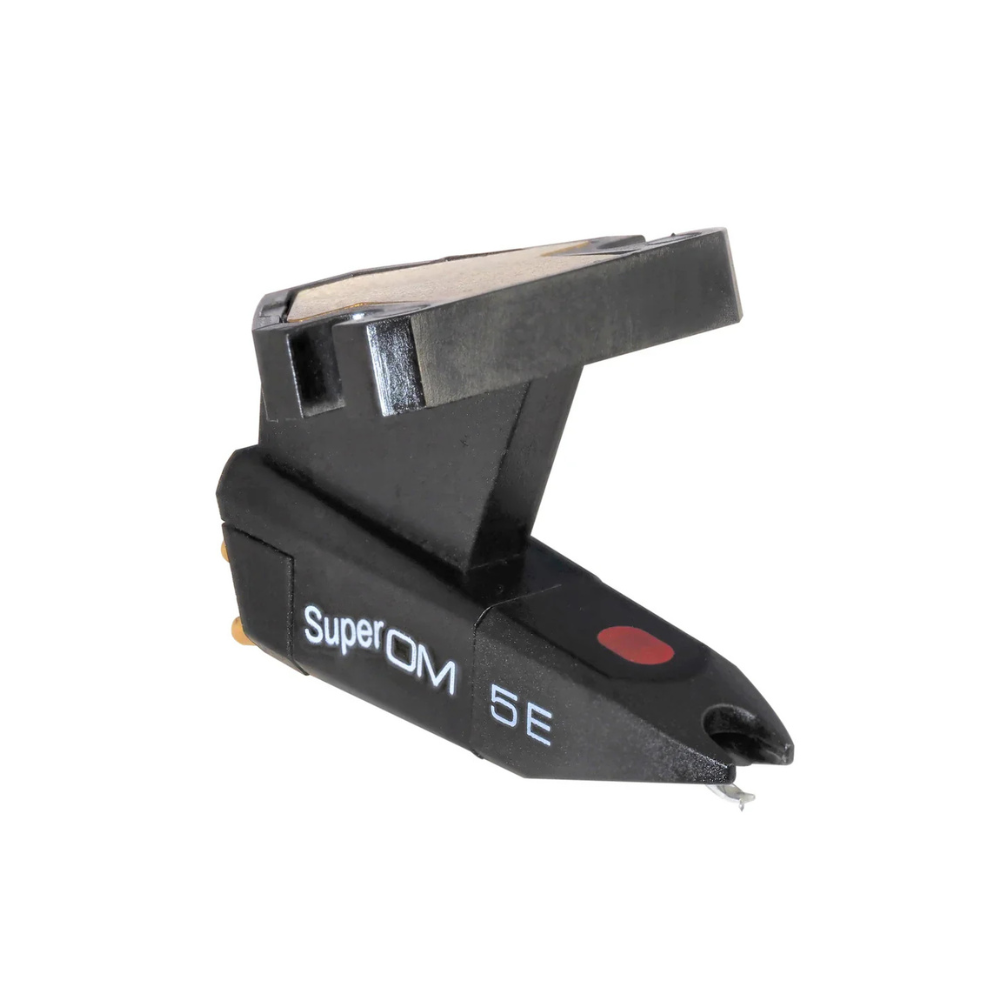

The OM 5s features a Spherical diamond. Spherical diamonds are the simplest and most robust diamonds. The OM 5E and Super OM 5E feature an Elliptical diamond.
In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.
Specifications
Channel balance at 1 kHz
1.5 dB
Output voltage at 1 kHz, 5cm/sec
4 mV
Channel separation at 1 kHz
22 dB
Frequency response 20 Hz - 20 kHz
20-22.000 Hz + 3 / -3
Tracking ability at 315 Hz
60 µm
Compliance, dynamic, lateral
20 µm/mN
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
1.5-2.0 g (15-20 mN)
Tracking force, recommended
1.75 g (17.5 mN)
Tracking angle
20°
Internal impedance, DC resistance
1 kOhm
Cartridge colour
Black/Black
Cartridge weight
incl. extra weight 5 g, excl. extra weight 2.5 g
Recommended load resistance
47 kOhm
Internal inductance
580 mH
Recommended load capacitance
200-500 pF
