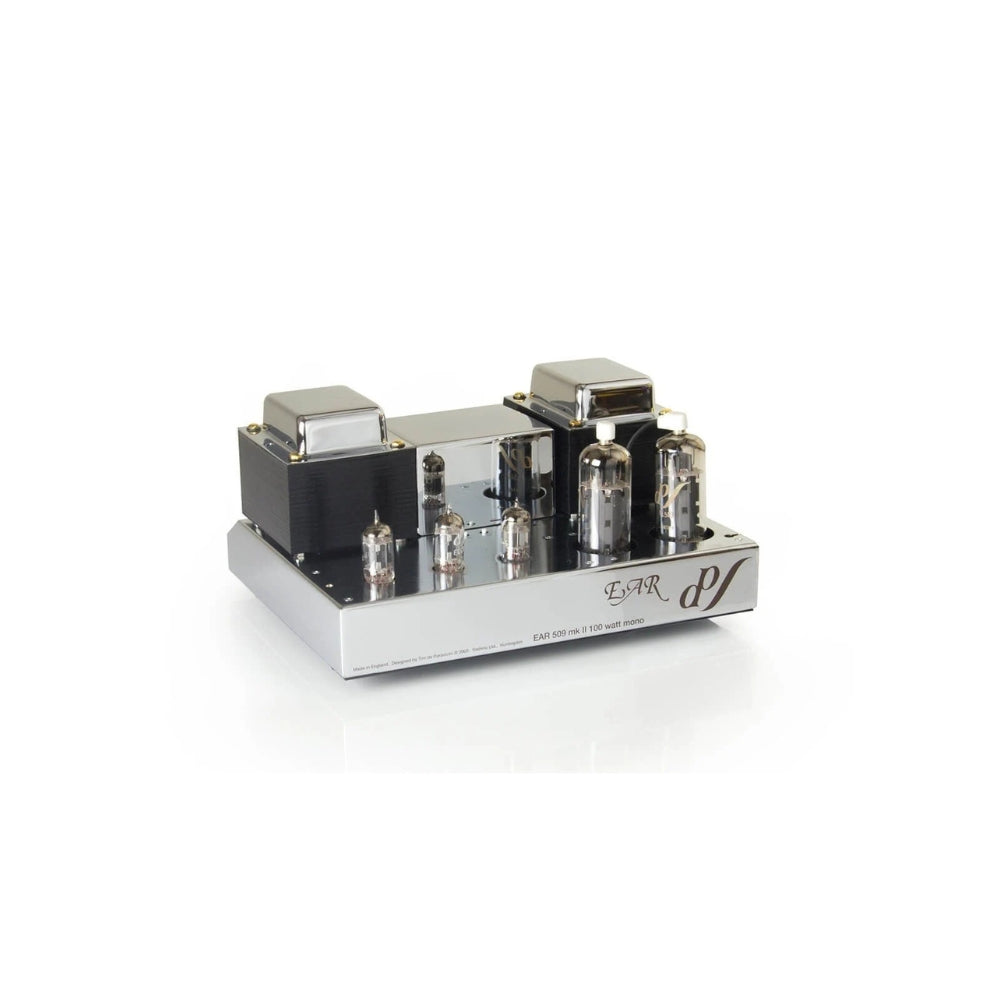

EAR Yoshino 509 Monoblock Pair

$22,499.00
$22,499.00
Contact

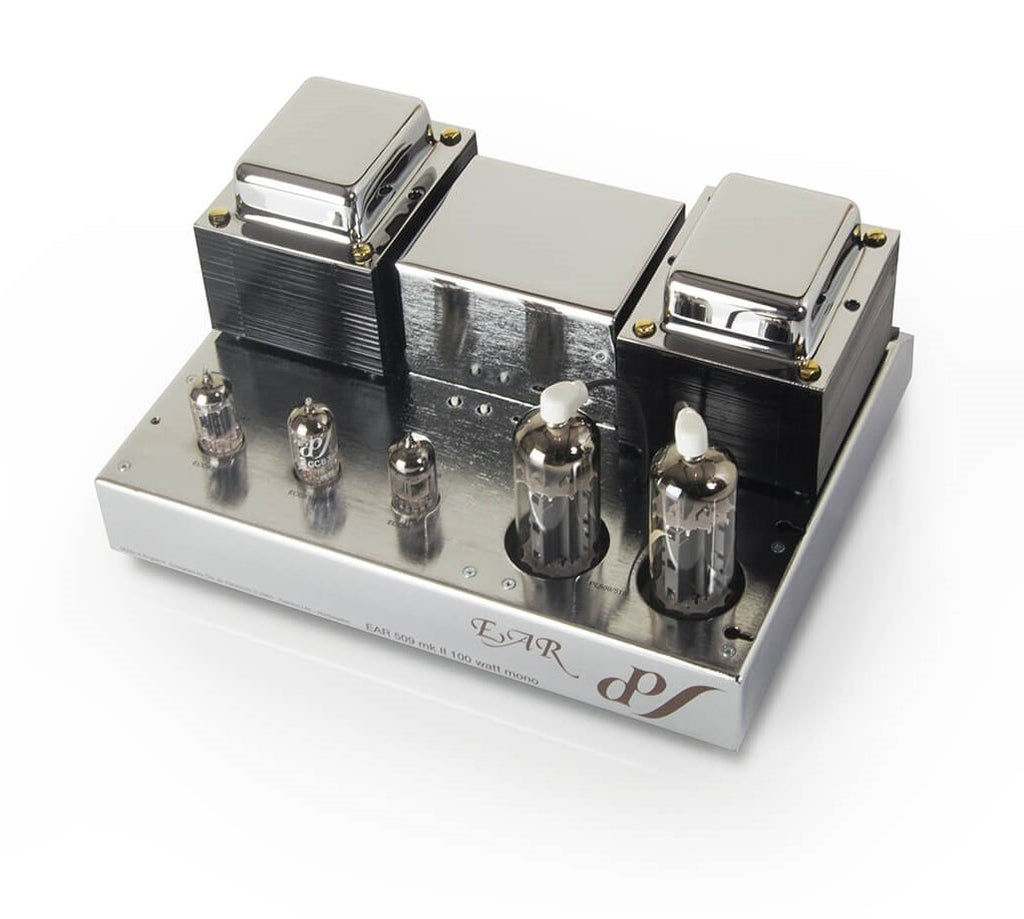

EAR509 Front

Classic beauty

The EAR 509 mono was born to serve professional studios. The nature of high fidelity in studios makes it perfectly suited for audio playback in the home.

The 100 Watt mono is a Tim de Paravicini design classic that has been in continual production for over 30 years. Its timeless rectilinear form is hand finished in polished chrome giving a clean and elegant look.

EAR509 Side

Limitless possibilities

The EAR 509 have been built with reliability at its heart, backed up by three decades of servicing experience for the product.

Changing valves is intuitive with the EAR 509’s self-biasing. Accurately set the operational biasing by adjusting two sets of dials.

EAR509 Top

Double the output

Tim de Paravicini designed the EAR 509s with industrial grade components for reliability and performance.

Each mono and its valves are analysed and paired for stereo output, giving the highest quality performance.

EAR509 Top Detail

Bespoke from the ground up

EAR Yoshino’s transformers sing with just about anything. Tim de Paravicini bespoke designed both output and power transformers with music in mind.

Read More
Read Less

Valves

Two PL509 (EL519)

Two ECC83 (12AX7)

One ECC85 (6AQ8)

Performance

Frequency response: 3Hz–30kHz (-1dB)

Signal-to-noise ratio: 96dB

Distortion (I.M.D.): 0.2%

Harmonic distortion: 0.5% at 3dB, 12Hz–60kHz

Input sensitivity (unbalanced): 1.2V

Input impedance (unbalanced): 25kΩ

Output damping factor: 20

Connectivity

One line input (RCA) or balanced input (XLR)

Output

Power output (20–20kHz): 100W into 4Ω and 8Ω

Dimensions & Weight

Weight: 15.3kg

Length: 300mm

Width: 254mm

Height: 150mm

Power

Power consumption: 180 watts
