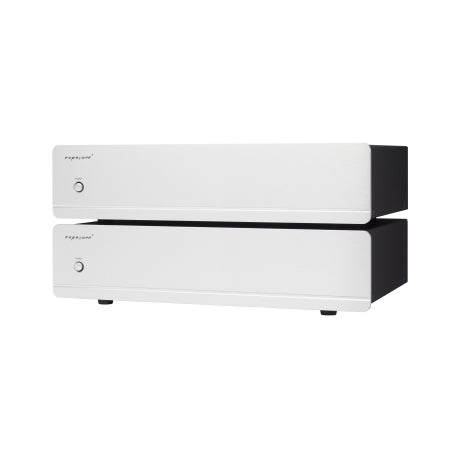

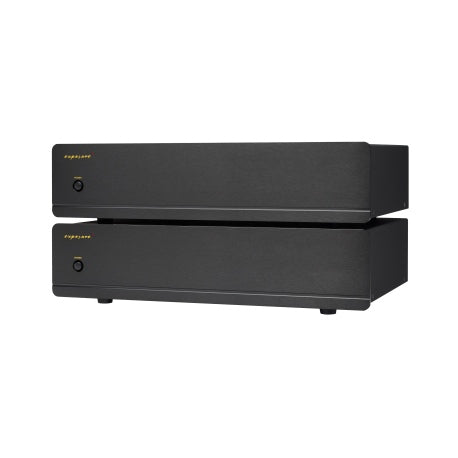

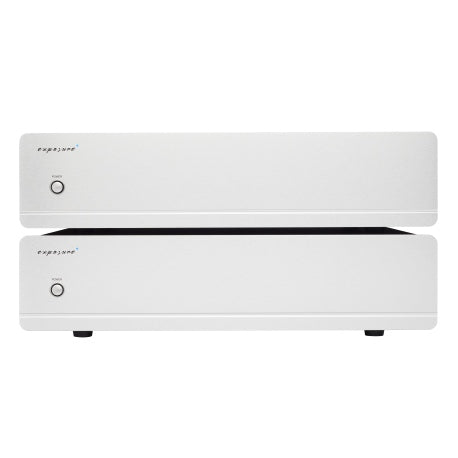

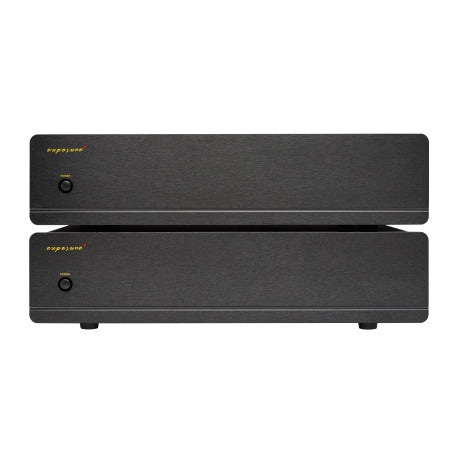

Exposure 3510 Mono Power-Amplifier
$5,599.00
Exposure XM9 Mono Power Amplifier
$3,699.00
Exposure 5010 Monoblock Power Amplifier
$10,000.00
Features
- Large custom made toroidal transformer and smoothing capacitors for power supply
- All bipolar transistor design using carefully selected parts
- DC coupled throughout
- Electronic, non-invasive overload protection circuit and thermal trip
- Balanced & Unbalanced Input
- Bi-wire speaker outputs using high quality shrouded sockets
- High quality all aluminium case work
- Three year guarantee
- Available in black or titanium
Specifications
Outputs
Power Output: 100W per channel, 8 Ohms
Frequency Response: -3dB at 60kHz, ref 1kHz
Total Harmonic Distortion: <0.01% @ 1kHz, ref rated power
Signal to Noise Ratio: >110dB, A weighted, ref rated output
Inputs (Line)
Input Impedance: 50K Ohms at 1kHz, unbalanced input
Input Sensitivity: 1.75V @ 1kHz (Unbalanced), 875mV each input @ 1kHz (Balanced)
General
Mains Supply: 220/240V, 50/60Hz (factory set)
Fuse: T4AL for 220/240V units
Power Consumption: <400W, 8 Ohms load
Dimensopns: 115mm x 440mm x 300mm
Net Weight: 12kg
Gross Weight: 14kg
Read More
