Quad 303

$2,799.00
$2,799.00

Quad 303’s legendary performance and distinct design have earned it a lasting place in Hi-Fi history, becoming an icon recognised by audiophiles across generations. Today’s 303 carries on that legacy. The same dedication to design. The same striking looks. Now crafted for the contemporary listener.

QUAD 303 POWER AMPLIFIER

Quad 303 is a 50W Class AB power amplifier sporting a custom 200VA toroidal transformer, Quad’s iconic 303 triples output stage, 10 ampere into difficult loads, and bridge mode selection for dual mono setups – all encased in Quad’s iconic anodised chassis with CNC-routed heat sinks.



THE POWER OF TRIPLES

Quad’s famed ‘symmetrical triples’ substantially minimise signal irregularities and temperature fluctuations that introduce noise into performance. By dropping the noise floor and increasing clarity, Quad 303 reveals the distinct timbre of individual instruments within the soundstage, their articulation and sustain, creating a three-dimensionality and texture to your listening sessions.



SWAGGER. MUSCLE. SHOWMANSHIP

A brand new 200VA, custom specified low-noise toroidal transformer, designed specifically for Quad 303, is the ultimate strongman. Compact and cool-running, 303s class AB power supply is entirely free from discrepancies caused by overheating and asymmetrical signals, delivering rich sonic detail with vice-like grip.



PERFORMANCE FINESS BEFORE UNRULY POWER

50w @ 8Ω (70w @ 4Ω) might sound conservative. But 303s honest power output, with a maximum current delivery of 10A into difficult loads, is ideally suited to the demanding requirements of modern, audiophile loudspeakers, driving even Quad’s electrostatic designs with ease.



THE FOREMAN OF HIGH FIDELITY

Output signals are cleverly monitored against input signals, through intelligent feedback topology, to check and correct discrepancies (distortion). In addition, 303s topology automatically adjusts transistor current flow regardless of temperature, so that you get exceptional audio clarity, even over long listening periods at high temperatures.



MORE POWER. MORE POSSIBILITIES

Native ‘Bridge Mode’ functionality allows dual 303s to be configured as a dual mono system, almost tripling its original 50W power output to 140W (@ 8Ω). Such flexibility ensures that Quad 33 & 303 will continue to unlock greater performance possibilities that keep pace with your growing aspirations, whatever they become.



NOTHING LOST IN TRANSLATION

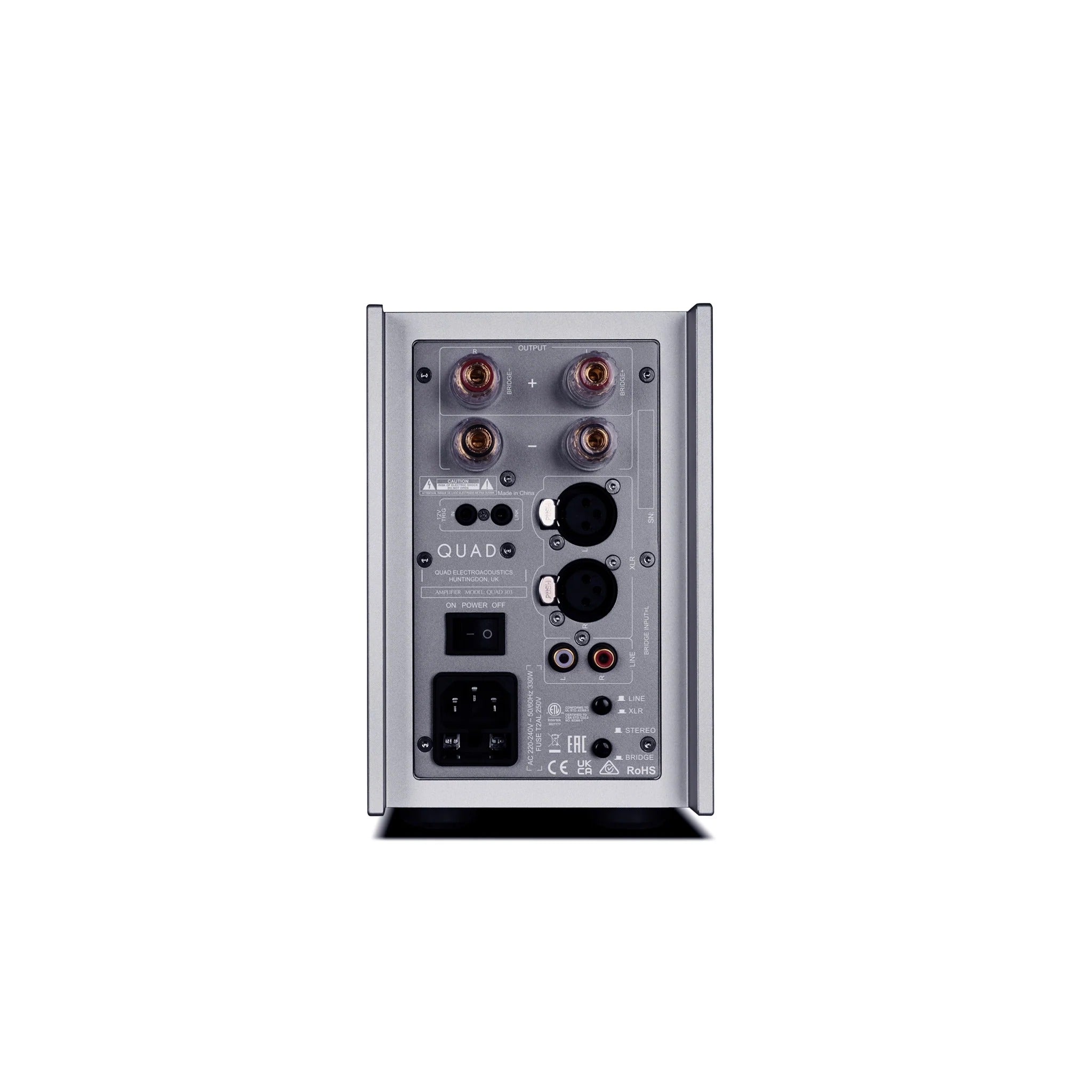

Premium speaker binding posts, single-ended RCA and balanced XLR inputs, plus a 12V trigger input for automatic power control complete 303s connectivity options, giving you the highest possible quality connections so that nothing is lost in translation.



Specifications

Design Philosophy / Core Technology

Class AB Power Amplifier

QUAD 303 Triples Output Stage

Custom 200VA Toroidal Transformer

Stereo / Bridge mode selection

Inputs 1 x Line, 1 x XLR
Ouputs

1 x 12V Trigger

1 x Stereo Speaker, 1 x 12V Trigger (link)

Power Amplifier Section



Gain +29dB
Rate Power Output

Stereo: 2 x 50W (8ohms, THD<1%)

Stereo: 2 x 70W (4ohms, THD<1%)

Bridged: 140W (8ohms, THD<1%)

Bridged: 170W (4ohms, THD<1%)

Frequency Response

20Hz - 20kHz (+/-0.3dB)

Total Harmonic Distortion

<0.002% (1kHz)

Input Impedance

10k ohms

Input Sensitivity

700mVrms (Line)

1.5Vrms (XLR)

Signal-to-Noise-Ration (S/N)

>108dB (A - weighted)

Max. Output Current

10A

General



Net Weight 8.4kg
Dimensions (W x H x D) 325 x 176 x 120mm
Finish Classic QUAD Grey
