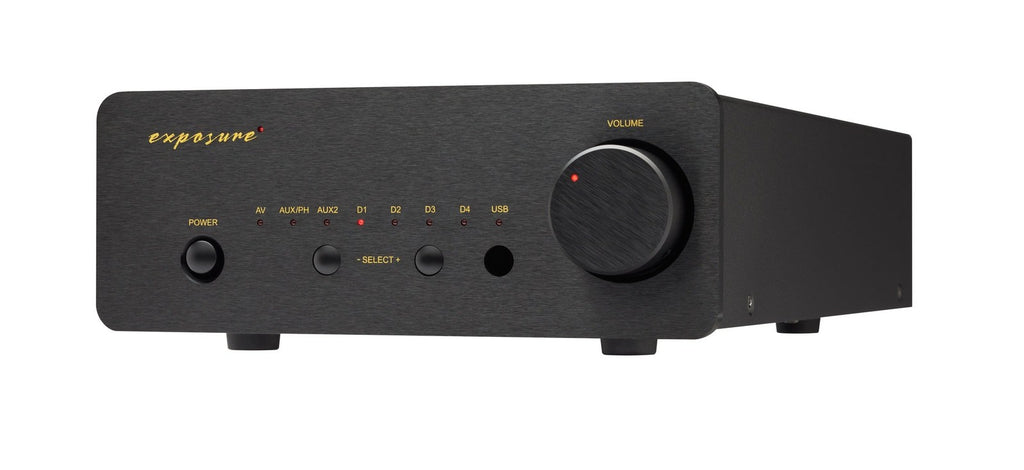

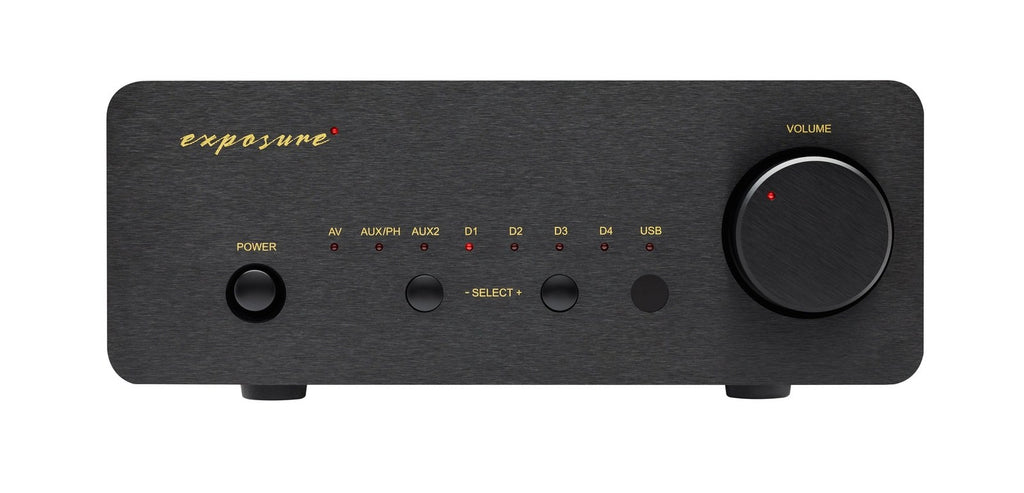

Exposure XM7 Pre Amplifier
Exposure XM7 Pre Amplifier - The HiFi Shop
Exposure XM7 Pre Amplifier - The HiFi Shop
Exposure XM7 Pre Amplifier - The HiFi Shop
Exposure XM7 Pre Amplifier
Click to zoom in
Load image into Gallery viewer, Exposure XM7 Pre Amplifier
Load image into Gallery viewer, Exposure XM7 Pre Amplifier - The HiFi Shop
Load image into Gallery viewer, Exposure XM7 Pre Amplifier - The HiFi Shop
Load image into Gallery viewer, Exposure XM7 Pre Amplifier - The HiFi Shop
Load image into Gallery viewer, Exposure XM7 Pre Amplifier

Exposure XM7 Pre Amplifier

$3,299.00
$3,299.00
Quad 33
Quad 33
$2,799.00
Exposure 3510 Pre-Amplifier
Exposure 3510 Pre-Amplifier
$3,499.00 - $4,598.00
Exposure XM7 Pre Amplifier
Black - $3,299.00
Description

Features

  • Large 200VA custom-made toroidal power transformer
  • High quality all aluminium casework and extruded front panel
  • High quality resistors and capacitors used in the signal path
  • Audio output stages use discrete transistors
  • High quality relays used for input selection
  • 3.5mm and 1/4" headphone outputs selectable by a switch at the back
  • Moving magnet phono input, fixed level AV input and one line level input

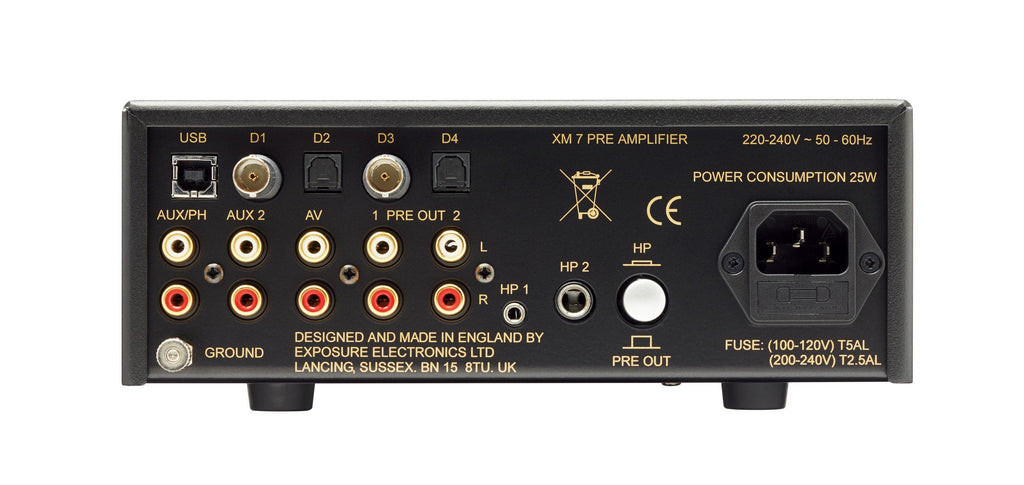

  • Two coax (bnc) and two optical inputs and one class 2 USB input with DSD
  • 2 pairs of pre-amp outputs for bi-amping or sub woofer
  • Remote control
  • Three year guarantee

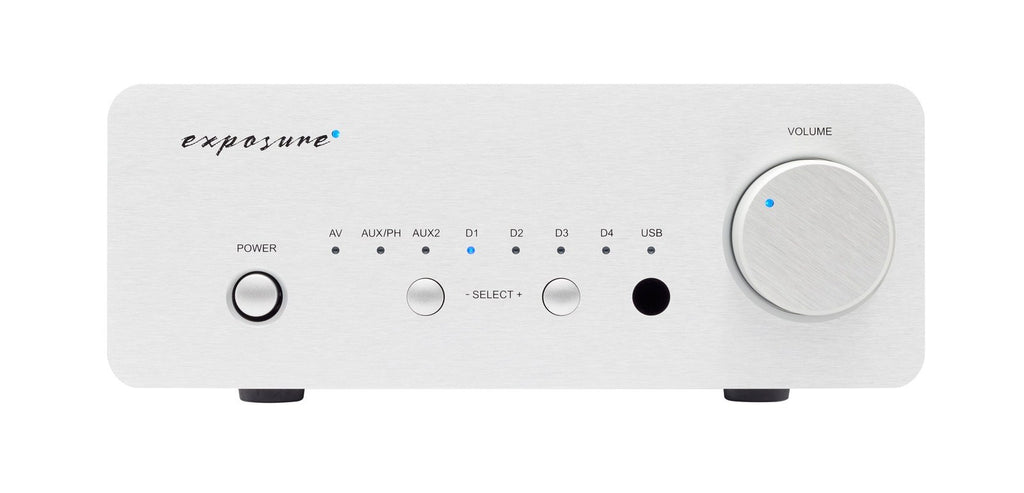

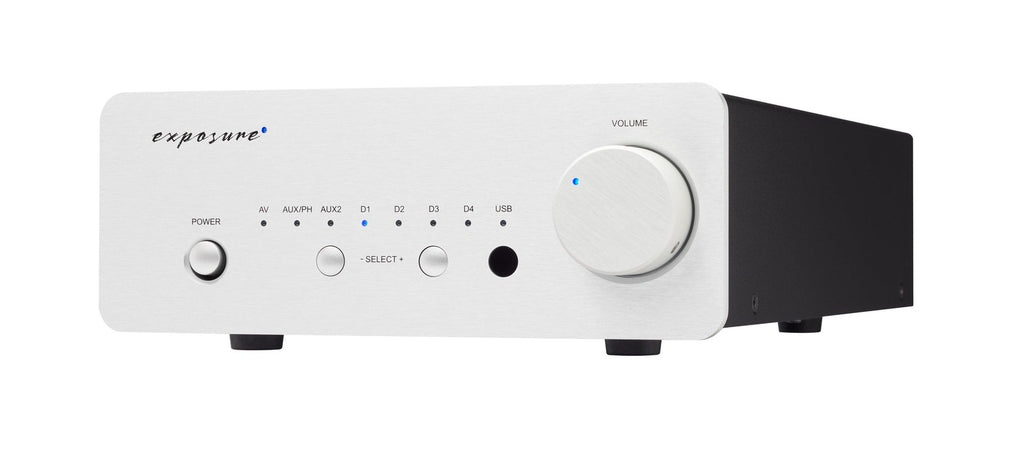

  • Available in black or titanium
Read More
Read Less

Preamplifier Specifications

Analogue Inputs

Pre Amplifier Output (input sensitivity / impedance / S/N):

  • AV input fixed level:

450mV @ 1KHz 12K ohms S/N 95dB

  • AUX/PH input MM:

2.5mV @ 1KHz, 47K ohms S/N 73dB

  • Frequency Response:

0.5dB 50Hz-20KHz. High pass roll off -1.5dB @ 20Hz

  • AUX 2 input line:

350mV @ 1KHz 14K ohms S/N output gain x3.75, +11.5dB

  • Total Harmonic Distortion:

0.005% at 1KHz : @ 1.3V RMS output

  • Frequency Response:

20Hz - 20KHz 0.5dB

  • Signal to Noise Ratio ref 1.3V RMS Output:

1KHz 92dB

  • Channel Separation @ 20KHz:

60dB

Digital Inputs

  • SPDIF inputs BNC Coax Optical:

32 - 192KHz @ 16-24 bits

  • Total Harmonic Distortion:

0.005% at 1KHz @ 1.3V RMS output

  • Signal to Noise Ratio ref 1.3V RSM Output:

1KHz : 98dB

  • USB input:

Linear PCM 44K1 - 192KHz @ 16-24 bits DSD x64 (DoP) Asynchronous transfer from host

Headphone Output

  • Output Impedance:

10 ohms

  • Maximum Level into 33 ohms:

@ 1KHz 0.1% THD : 5V RMS

  • Total Harmonic Distortion:

@ 2V output, 1KHz : 0.03%

  • Maximum Level into 330 ohms:

@ 1KHz 0.1% THD : 8V RMS

  • Total Harmonic Distortion:

@ 2V output, 1KHz : 0.01%

General Specifications

  • Mains Supply:

110/120V or 220/240V @ 50/60Hz (factory set)

  • Power Consumption:

25W

  • Dimensions (WxHxD):

218mm x 89mm x 363mm (inc knob)

  • Net Weight (unpacked):

5kg

  • Gross Weight (packed):

6kg
