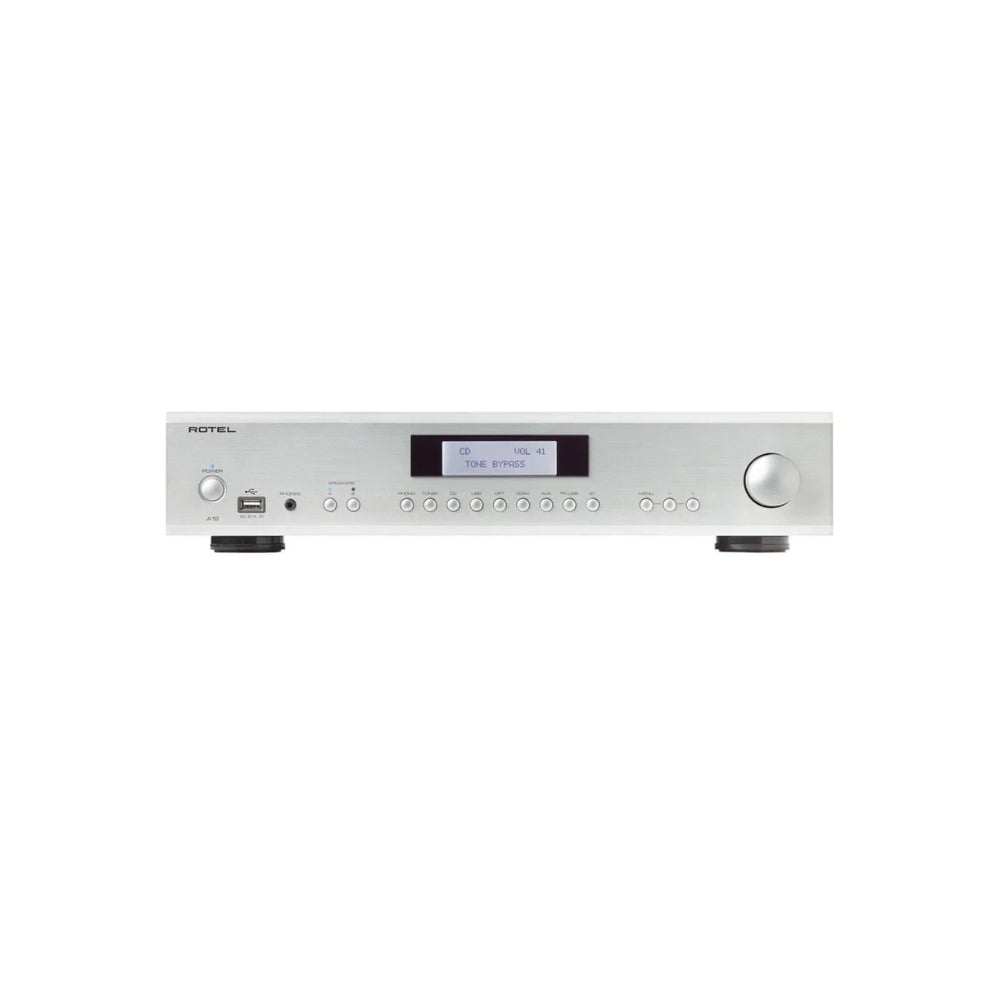

Rotel A12 MKII
KEY FEATURES
- Power 2 x 60 Watts of robust. Class AB power
- Turntable Moving magnet phono input for turntable connection
- Bluetooth streaming with aptX
- Texas Instruments premium 32-bit/384 kHz DAC
The A12MKII stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms. This integrated amplifier supports your favourite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth. Optimised circuits and a 32-bit DAC deliver spacious and open reproduction of the music.
The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers.
Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms.
A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favourite sources.
The premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimised circuits preserving the integrity of the audio stream.
Slim and powerful, the A12MKII delivers on Rotel’s iconic brand heritage.
Specifications
| Maximum Power Output | 120 W/Ch (4Ω) |
| Continuous Power Output | 60 W/Ch (8Ω) |
| Total Harmonic Distortion (THD) | <0.018% |
| Frequency Response | Line Level Inputs: 10 Hz - 100 kHz ±0.5 dB, Digital Inputs: 10 Hz - 90 kHz ±2 dB, Phono Input: 20 Hz - 20 kHz ±0.5 dB |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 100 dB, Digital Inputs: 103 dB, Phono Input: 90 dB |
| Intermodulation Distortion (60 Hz:7 kHz, 4:1) | <0.03% |
| Damping Factor | 220 |
| Input Sensitivity | Line Level Inputs: 230 mV, Digital Inputs: 0 dBfs, Phono Input (MM): 3.4 mV |
| Input Impedance | Line Level Inputs: 24 kΩ, Digital Inputs: 75 Ω, Phono Input (MM): 47 kΩ |
| Input Overload | Line Level Inputs: 4 V, Phono Input: 50 mV |
| Preout Level | 1.2 V |
| Output Impedance | 470 Ω |
| Tone Controls | ±10 dB at 100 Hz / 10 kHz |
| Digital Input | SPDIF LPCM (Up to 24-bit/192 kHz) |
| PC-USB | USB Audio Class 1: Up to 24-bit / 96 kHz, USB Audio Class 2: Up to 32-bit / 384 kHz (Driver Installation Required), Roon Tested |
| Dimensions (W x H x D) | 430 x 93 x 345 mm (17" x 3.6" x 13.5") |
| Front Panel Height | 80 mm (3.15") |
| Power Requirements | 230 V, 50 Hz |
| Power Consumption | 230 W |
| Power Consumption | <0.5 W |
| Net Weight | .768 kg (19.31 lbs.) |
| BTU Rating (4Ω, 1/8th Power) | 632 BTU/h |
