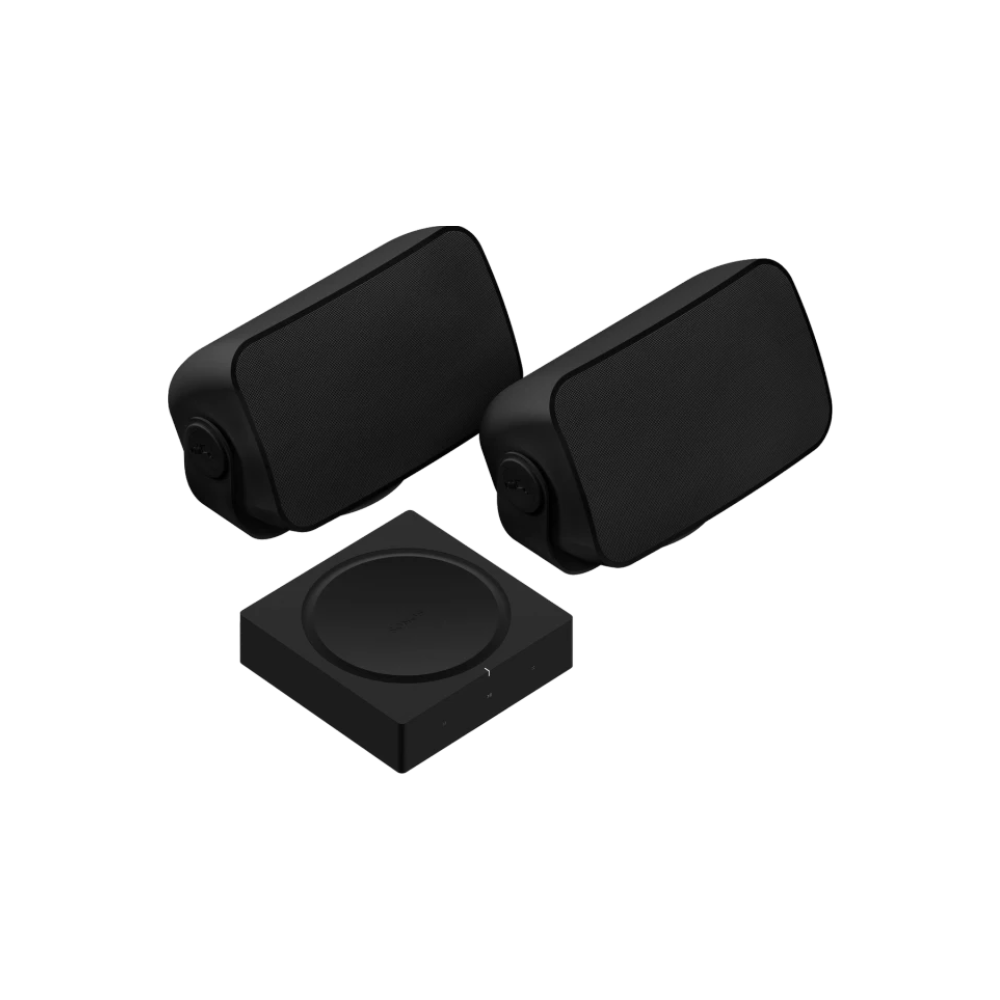

Sonos Outdoor Set

Audio

• Power:

125 watts per channel at 8 ohms

• Output:

Stereo or dual mono sound

• EQ:

Use the Sonos app to adjust bass, treble and loudness to optimise sound performance

• Trueplay:

This software measures the acoustics of the room then fine-tunes your speakers. Supported Sonos Architectural by Sonance speakers and iOS device required

• Home Theatre Audio Formats:

Stereo PCM, Dolby Digital, DTS Digital Surround* (*This is not an indication of a licensed decoder.) The Sonos app's Now Playing screen will display what type of audio is being decoded

Details & Dimensions

• Dimensions: Height:

64 mm, Width: 217 mm, Depth: 217 mm

• Weight:

2.1 kg

• Colours:

Black

• Finish:

Matte

Controls & Indicators

• Controls:

Use the capacitive touch controls on the product to play, pause, skip, replay, adjust the volume, and more

• LED:

Light on the product indicates connection status

Power & Connectivity

• WiFi:

Connect to WiFi with any 802.11b/g/n 2.4 GHz broadcast-capable router. For 5 GHz routers, enable 2.4 GHz 802.11b/g/n in router settings or hardwire a Sonos product

• Speaker Output Connections:

Custom-designed banana plugs (2) that can be swapped for standard diameter banana plugs

• Line-In:

Connect an audio device using an RCA cable

• Subwoofer Output:

Auto-detecting RCA type, user-adjustable 50–110 Hz crossover

• Voltage:

100–240 V 50/60 Hz internal power supply

• HDMI ARC:

Connect to your TV's HDMI eARC/ARC port with a HDMI cable. If your TV has an optical output only, use the Sonos Optical Audio Adapter

• Ethernet:

Dual 10/100 port for hardwiring to your router

• CPU:

Quad Core 1.3 GHz A7

• Apple AirPlay 2:

Works with AirPlay 2 on Apple devices iOS 11.4 and higher

Box Contents

• Main Unit:

Sonos Amp

• Power Cable:

Length: 2 m (6 ft)

• Sonos Banana Plugs:

Pair (2)

• Documentation:

Quickstart guide and legal/warranty information

Requirements

• Speakers:

Passive or wired required for audio output

• WiFi:

Internet connection

• Power Source:

Nearby electrical outlet

• Sonos App:

The latest generation of the Sonos app running on a compatible device

Speaker SPECS

• Woofer:

One high-excursion pivoting woofer produces rich mid and low frequencies

• Tweeter:

One-inch tweeter produces crisp, high frequencies

• Frequency Response:

55 Hz – 20 kHz (±3 dB)

• Rated Impedance:

8 Ohms nominal

• Sensitivity:

89 dB SPL (2.83 V / 1 m)

DETAILS + DIMENSIONS

• IP66:

Dustproof and weatherproof, conforming to Mil Spec 810 for humidity, salt spray, temperature and UV exposure

• Dimensions:

Height: 190.8 mm, Width: 328.4 mm, Depth: 199.6 mm

• Temperature:

-13°F to 149°F (-25°C to 65°C)

• Weight:

3.2 kg each, 6.4 kg per pair

• Colours:

White

• Finish:

Matte

POWER + CONNECTIVITY

• Power Handling:

5 watts minimum, 130 watts maximum

BOX CONTENTS

• Outdoor Speakers by Sonos and Sonance (Pair)
• Speaker Grilles (Pair)
• FastMount Brackets (Pair)
• Wiring Terminal Covers (Pair)
• Documentation:

Installation manual and legal/warranty information

REQUIREMENTS

• Amplifier
• Speaker Wire
