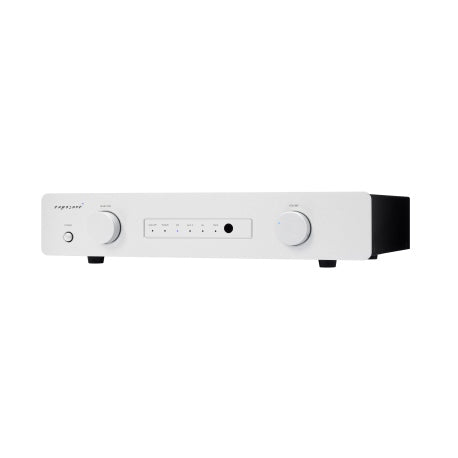

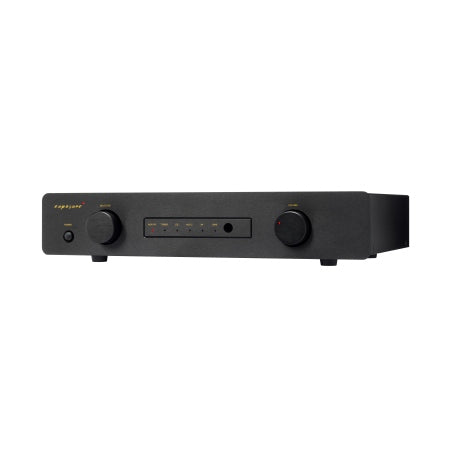

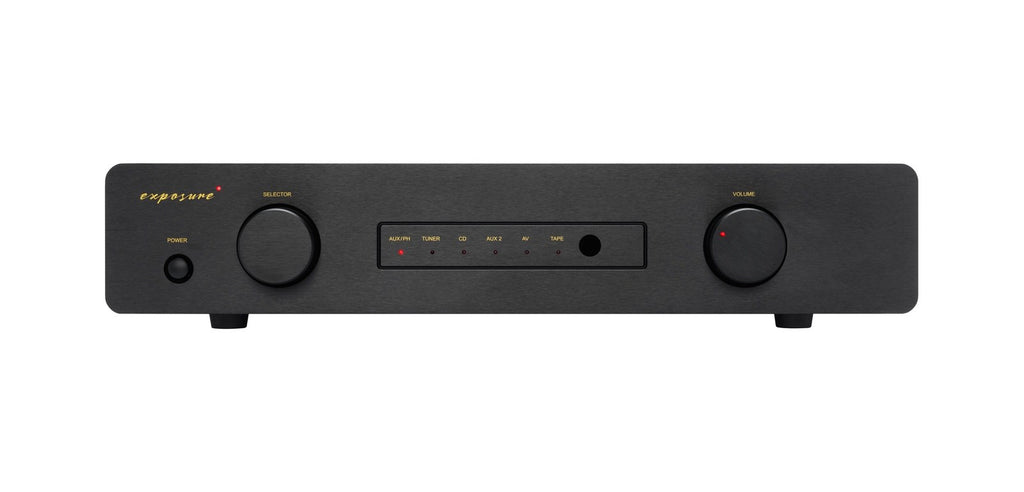

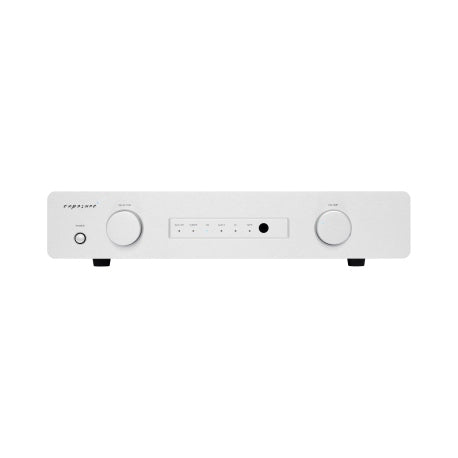

Pre-Amplifier
Pre-amplifier Output
1.9 V for rated input (gain +18 dB full volume)
Maximum Output
7.7 V RMS at 1 kHz
Frequency Response
20 Hz – 20 kHz ±0.5 dB
Total Harmonic Distortion
0.005% @ 1 kHz, ref rated output
Signal to Noise Ratio
100 dB, ref. rated output
Inputs (Line)
Input Impedance
18K ohms minimum (line input)
Input Sensitivity
250 mV
Mains Supply
220/240 V, 50/60 Hz (factory set)
Fuse
T2.5AL for 220/240 V units
Power Consumption
25 W
Dimensions (H × W × D)
90 mm × 440 mm × 300 mm
Net Weight
7 kg
Gross Weight
9 kg
