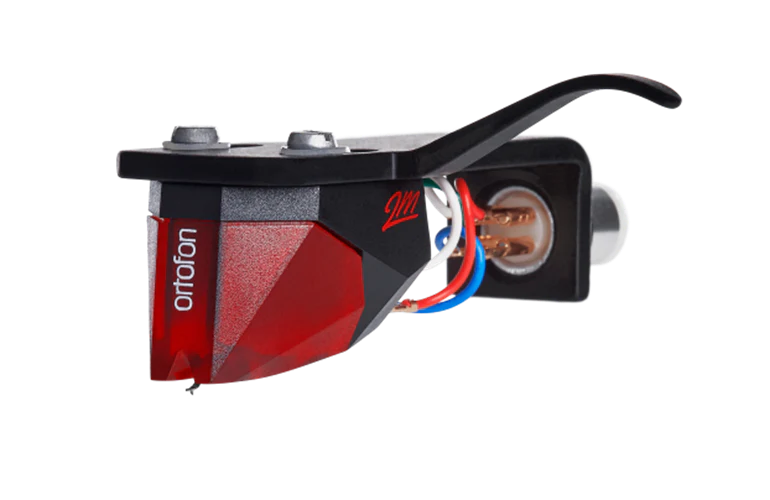

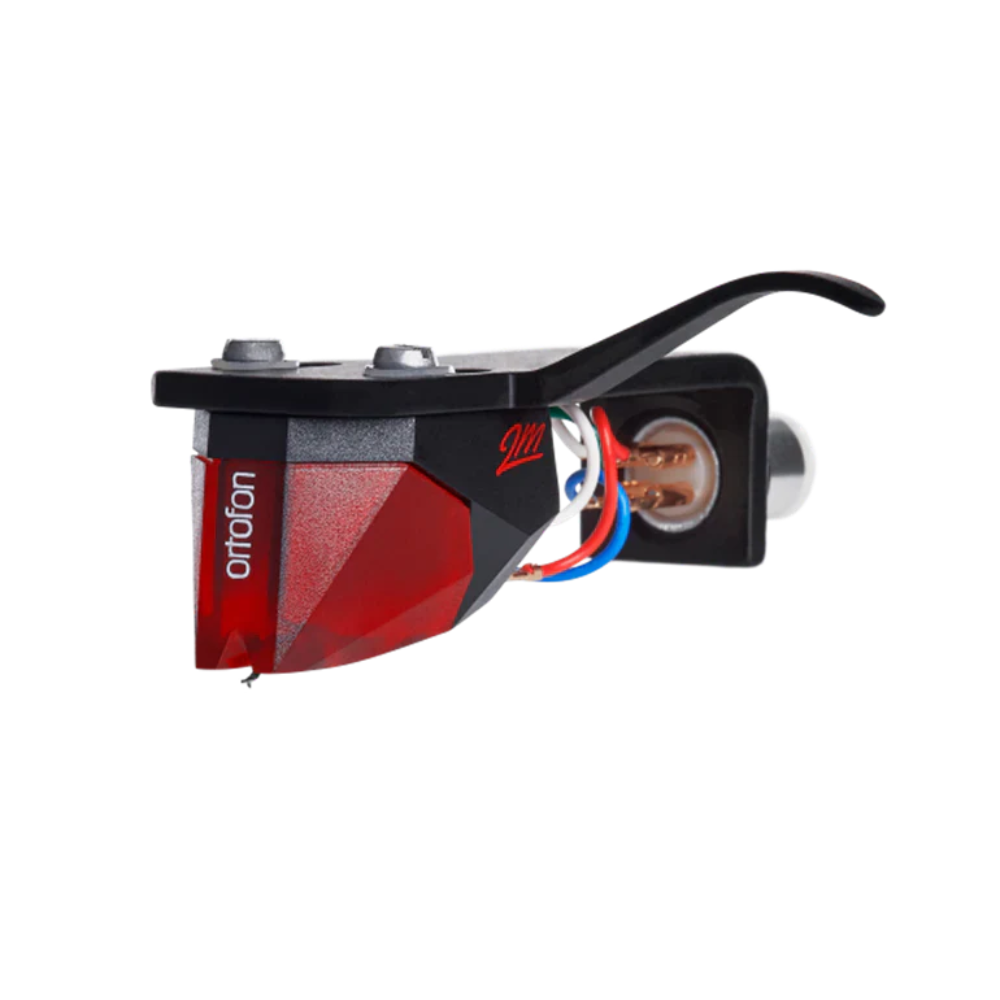

Ortofon 2M Red Premounted
Click to zoom in

Ortofon 2M Red Premounted

$269.00 $242.00
$242.00

Ortofon 2M Red Premounted

Experience the convenience of the 2M Red Premounted - a smart and refined choice for those seeking straightforward installation and effortless replacement on their S-shaped tonearm.

With the 2M Red Premounted, you will hear the music come to life on its own terms. It is like taking a step into music itself. This is our entry-level cartridge in the series, but what an entry.

Accuracy level

With the 2M Red Premounted, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry. The 2M Red delivers an open, dynamic sound with a slight touch of warmth.

Compatibility

Experience the convenience of the 2M Red Premounted – a smart and refined choice for those seeking straightforward installation and effortless replacement on their S-shaped tonearm. The SH-4 headshell's resilience and stability are enhanced by its slender and refined design. A robust yet lightweight construction, coupled with an ergonomic, extended finger lift, ensures easy handling and pickup.

Features

  • The 2M Red features Ortofon’s very own invention: the split pole pins with a copper wire that gives you a sound reproduction so precise only your heart dares skip a beat.
  • The engine provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy. With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry
Read More
Read Less

CARTRIDGE SPECIFICATIONS

Channel Balance at 1 kHz

1.5 dB

Output Voltage at 1 kHz, 5 cm/sec

5.5 mV

Channel Separation at 1 kHz

22 dB

Frequency Response

20 Hz – 20 kHz
3 / −1 dB

Tracking Ability at 315 Hz

70 µm

Compliance, Dynamic, Lateral

20 µm/mN

Cantilever Material

Aluminium

Stylus Type

Elliptical

Stylus Tip Radius

r/R 8 / 18 µm

Tracking Force Range

1.6 – 2.0 g (16 – 20 mN)

Tracking Force (Recommended)

1.8 g (18 mN)

Tracking Angle

20°

Internal Impedance (DC Resistance)

1.3 kOhm

Cartridge Colour

Black / Red

Cartridge Weight

7.2 g

Premounted Cartridge Weight

16.7 g

Internal Inductance

700 mH

Recommended Load Resistance

47 kOhm

Recommended Load Capacitance

150 – 300 pF
