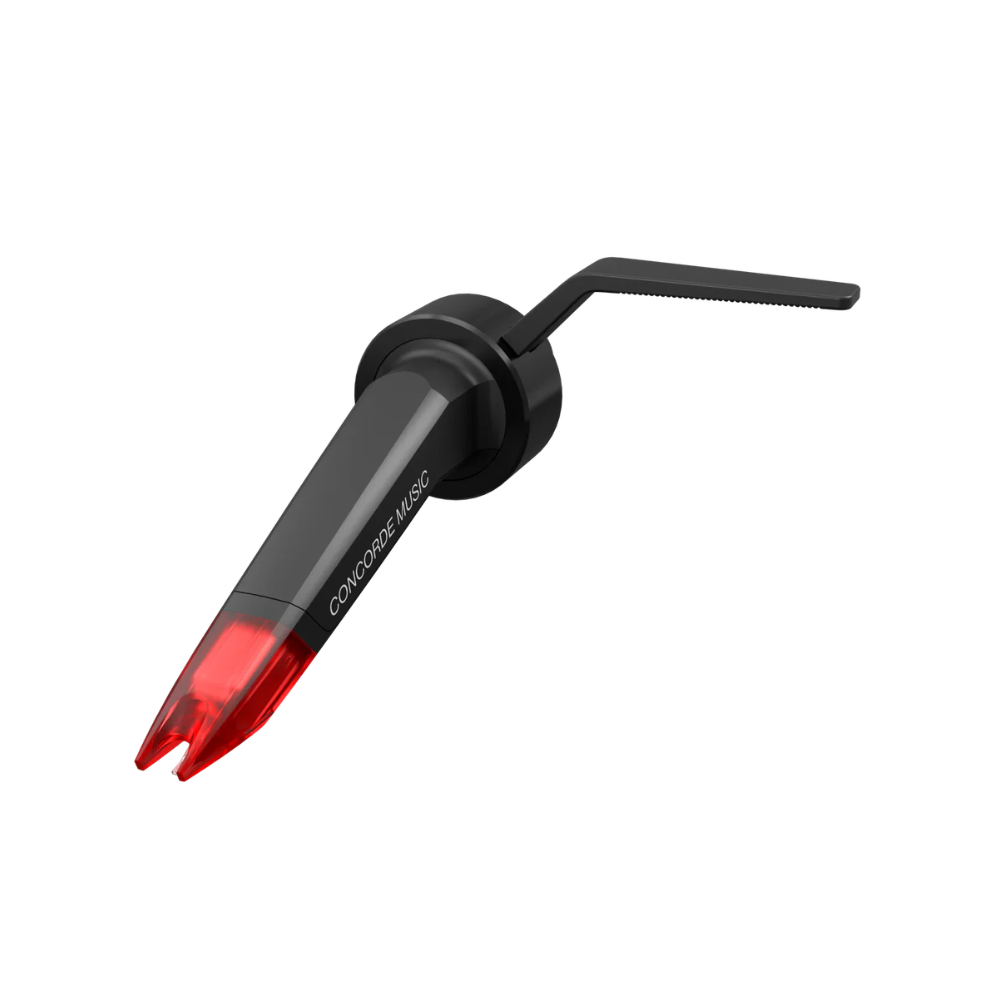

Ortofon Concorde Red
Ortofon Concorde Red
Ortofon Concorde Red
Ortofon Concorde Red
Ortofon Concorde Red
Ortofon Concorde Red
Ortofon Concorde Red
Click to zoom in

Ortofon Concorde Red

$269.00 $242.00
$242.00

Ortofon Concorde Red

Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever and can be upgraded through the entire series to Concorde Music Black LVB 250, simply by replacing the stylus.

The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.

Iconic design

Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio.
Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in the audio industry.

Stylus

The Concorde Music Red features an Elliptical diamond polished to the highest standards of the industry, mounted on a premium aluminum cantilever. This ensures the best possible transmission of the vinyl record groove modulations picked up by the diamond.

Rubber suspension

The Concorde Music Red utilizes an exclusive Ortofon rubber compound for its stylus suspension. Developed and produced in our unique in-house rubber production, this suspension is a crucial and vital component contributing to the overall performance of the phono cartridge.

Compatibility

Installing the Concorde Music cartridge on your turntable is easy and straightforward; no tools are required, making it hassle-free and convenient for all users. This is thanks to the bayonet/SME connector, which makes it compatible with all S-shaped tonearms.

Coil system

The Concorde Music Red is designed to work perfectly with a wide range of phono preamps. Its recommended load impedance is 47 kOhm, making it compatible with most modern phono stages available on the market today.
This results in exceptional channel balance and separation, delivering precise and dynamic sound. With a 6 mV output, it offers lifelike sound with exceptional clarity and fidelity, capturing every detail.

Upgradeability

The Concorde Music Red can be upgraded with all Concorde Music styli, enabling an upgrade path throughout the entire series up to the Concorde Music Black LVB 250.
Upgrading the stylus is a simple task; simply pull the stylus off and replace it with the new one. Remember to keep the stylus guard on when installing the new stylus to keep the needle safe.
Read More
Read Less
Channel Balance (1 kHz)

1.5 dB

Output Voltage (1 kHz, 5 cm/sec)

6 mV

Channel Separation (1 kHz)

22 dB

Frequency Response

20 Hz – 20 kHz

Response Accuracy

+3 / −1 dB

Tracking Ability (315 Hz)

80 µm

Dynamic, Lateral Compliance

15 µm/mN

Tracking Force (Recommended)

1.8 g

Stylus Type

Elliptical diamond

Stylus Tip Radius

r/R 8 / 18 µm

Tracking Angle

20°

Material

Aluminium

Design

Quad-coil design with split pole pins

Recommended Load Resistance

47 kΩ

Recommended Load Capacitance

150 – 300 pF

Cartridge Colour

Black / Red

Cartridge Weight

18 g
