Wiim Amp Pro

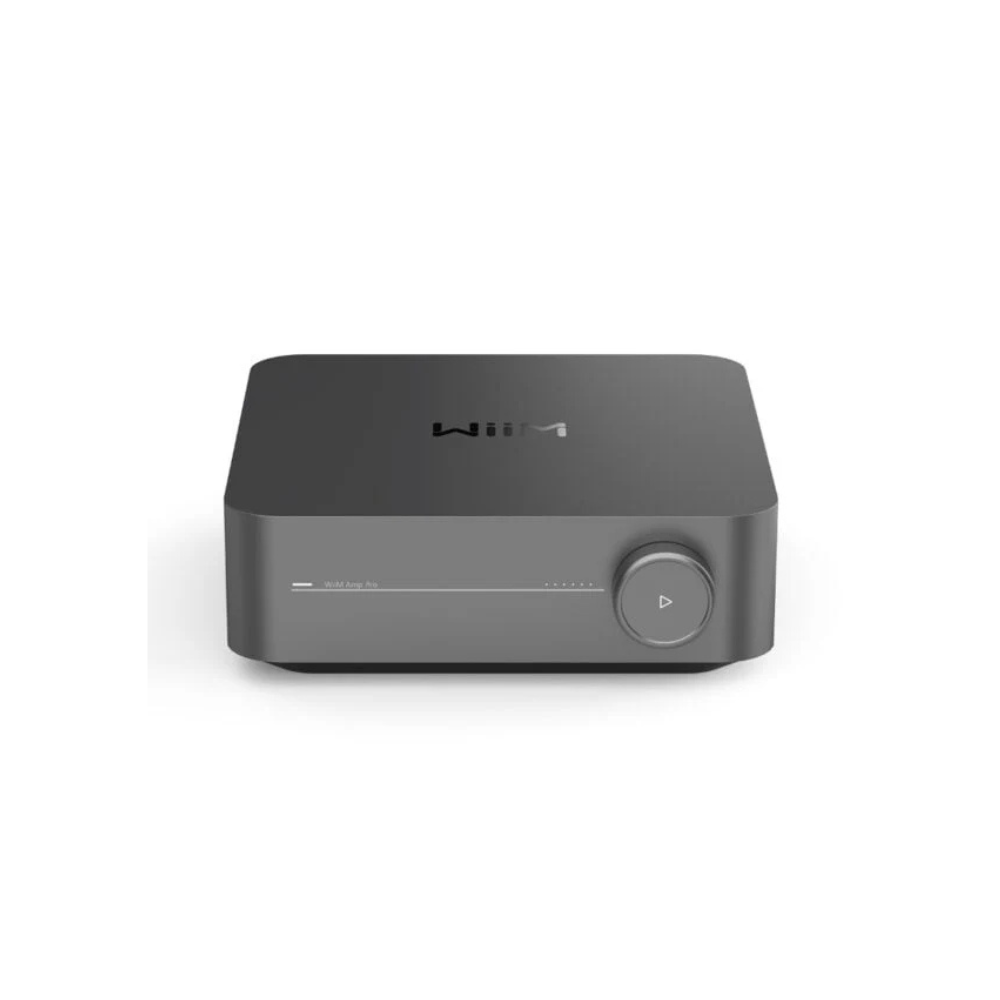

Introducing WiiM Amp Pro
The WiiM Amp Pro is our second-generation streaming amplifier, distinguished by its exceptional product design, audio quality, wireless and audio connectivity, performance, and functionality. It delivers 60W per channel power for 8 ohms, and 120W per channel power for 4 ohms. Supporting all major streaming services and protocols, along with Dolby Digital Audio, it incorporates the latest Wi-Fi 6E and BT 5.3 including LE Audio with two antennas, offering rock solid wireless audio streaming.
Elevating Your Audio Experience
Moreover, by employing premium components such as the ESS ES9038Q2M Audio DAC, TI TPA3255 Amplifier, and OP AMP components and sophisticated circuit design, it achieves an SNR of 118 dB (A-weighted) and THD+N of-101dB at 5W across a frequency range of 44.1k to 192k, setting a high standard for audio fidelity. Functioning as an all-in-one device, it seamlessly integrates the streamer and speaker amplifier into one unit, compatible with your existing passive speakers such as bookshelf, ceiling, and floor-standing speakers.
Seamless Connectivity, Boundless Versatility
Furthermore, it can be connected to various audio devices including turntables, MP3 players, TVs, or projectors, enriching the audio quality and listening experience across these devices. Once the WiiM Amp Pro is connected to your cherished classic passive speakers, your immersive cinematic TV setup, or even your vintage record player, a world of musical possibilities unfolds before you. Effortlessly stream your treasured music collection directly from your preferred music application, whether it’s through the intuitive WiiM Home App or via hands-free voice commands using Alexa or Google Assistant, all while revelling in the utmost sound fidelity available.
Specifications
Colours
Space Gray
Finish
Aluminum
Controls
Volume knob, play/pause, and more
LED
Status, Volume
Power
60 Watts/channel at 8 ohms
120 Watts/channel at 4 ohms
DAC
ESS ES9038 Q2M
Speaker Output
Stereo or dual mono sound
Home Theatre Audio Formats
Stereo PCM (Dolby Digital and DTS are not supported)
Audio Input
HDMI Arc, Optical, Line
Audio Output
Passive Speaker Terminal
Subwoofer Output
Audio Output Quality
SNR - 120 dB
THD+N - 105 dB (0.0005%) at 5W
Audio Format
MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG
EQ
Preset, 10-band Graphics EQ, 4-band parametric EQ
Subwoofer Output
Auto-detecting cable insert, user-adjustable 30-200 Hz crossover
Power Supply
100-240V 50/60Hz AC Power
Network
Wi-Fi 6, IEEE 802.11 b/g/n/ac Dual band, 10/100 Mbps LAN
Bluetooth
BT 5.3
A2DP Sink and Source, AVRCP
BLE HID
Supported Streaming Protocol: Chromecast, Spotify Connect,
TIDAL Connect, Alexa Cast, DLNA
