B&W CCM684

$1,098.00
$1,098.00

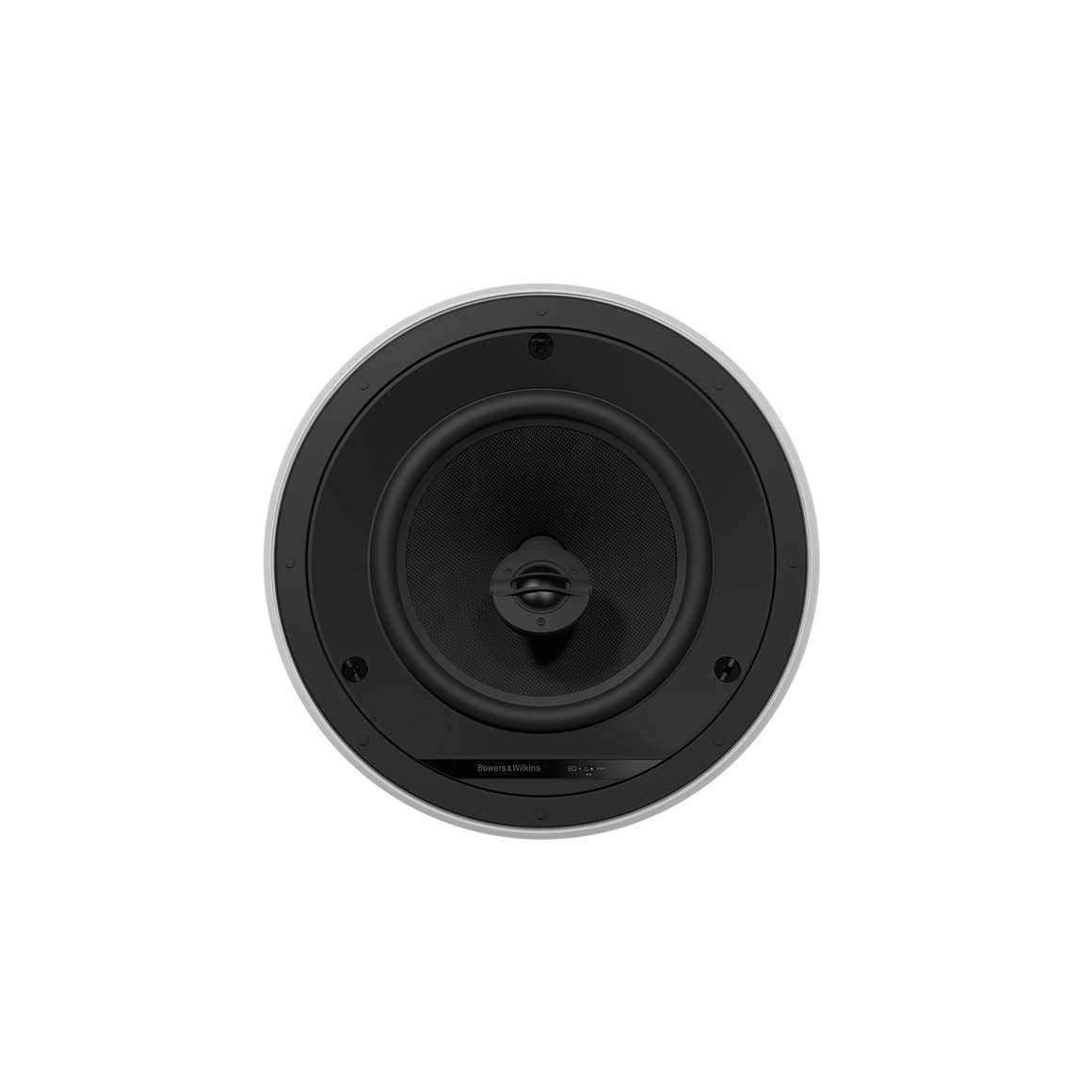

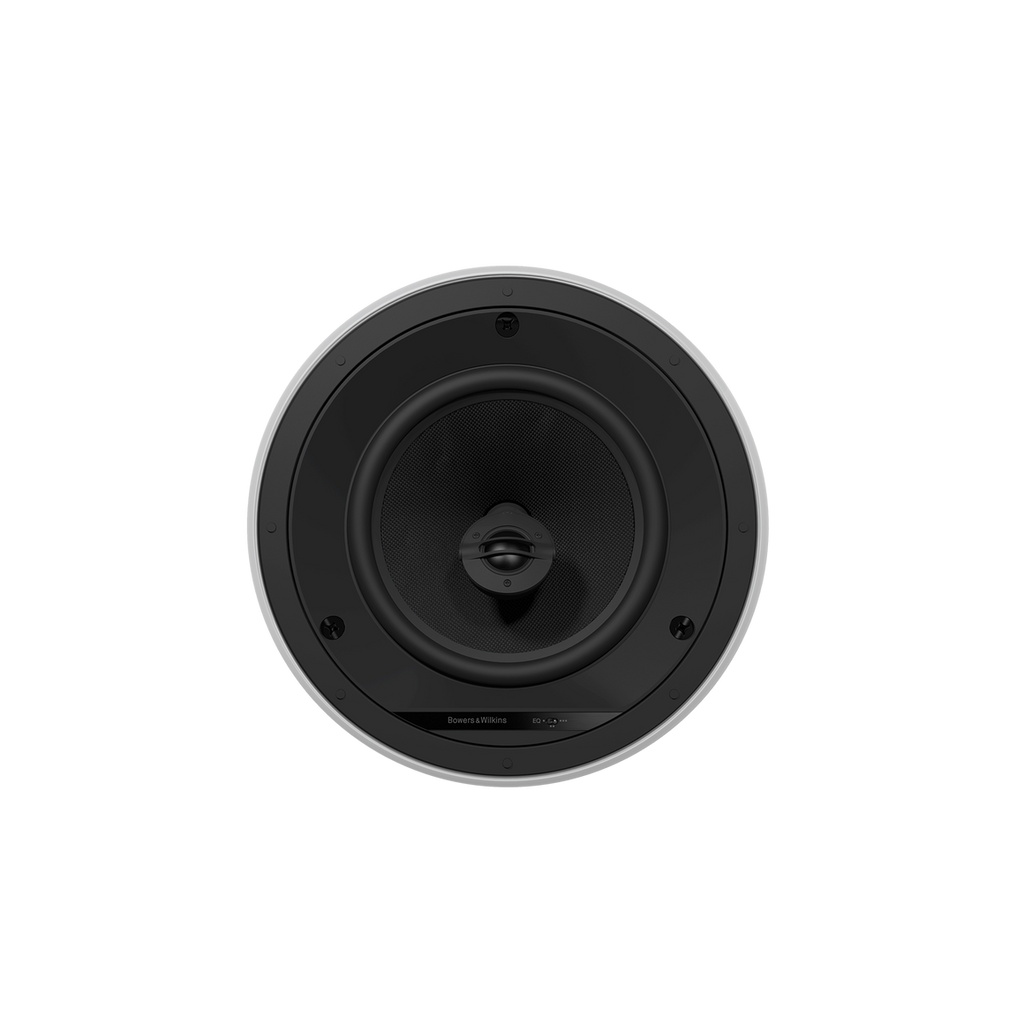

The CCM684 is a high-performance ceiling speaker that’s simple to install and use. Its two-way design features a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis.

The tweeter housing pivots for adjustable off-axis treble response and the speaker also features a three-position EQ switch for a better off-axis response. Incorporating QuickDogs™ and a plug-and-play functionality it is quick and easy to install.

Read More
Read Less

Description
2-way in-ceiling system

Drive Units
1x 25mm (1in) soft dome tweeter
1x 200mm (8in) black glassfibre cone

Frequency Range (-6dB)
 35Hz – 35kHz

Recommended Amp Power
25 – 130w

Sensitivity SPL (2.83V, 1m)
88dB 8Ω

Impedance Nominal (min)
4.5Ω

Frame diameter
290mm

Cut-out diameter
250mm

Depth behind surface
130mm

Protrusion
4mm

Pre-mount Kit
C8

Back Box
6C
