Denon AVC-X4800H
Denon AVC-X4800H
Denon AVC-X4800H
Click to zoom in

Denon AVC-X4800H

$4,299.00
$4,299.00

Denon AVC-X4800H

Designed and manufactured in Japan, the powerful AVR-X4800H drives 9.4 channels of amplification. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X4800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.

Features

  • 9.4 channels
  • 125 watts per channel
  • 8K Ultra HD
  • 3D Audio
  • HEOS Built-in
  • Dirac Live Ready

Experience the latest precision-based AV receiver

The latest visual and 3D audio formats via 8K HDMI with eARC support ensure incredible entertainment experiences for years to come.

Enveloping 3D audio

Feel like you're in the center of the action with enveloping 3D sound.

Expert ready

Take advantage of the wide variety of configuration options to best fit your space.

Denon craftsmanship

Designed and manufactured at Denon facilities in Japan and tuned by the Denon Sound Master.
Discrete high-current amplifiers deliver up to 125W per channel (at 8 ohms, 20- 20kHz, THD 0.05%) for more refined sound in large spaces.
Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced, and Auro 3D, along with Dolby Surround, DTS Neural:X, and Auro-Matic upmixer to optimize legacy content.
AVR-X4800H offers many setup options and the flexibility to adjust your home theater to meet your needs. Supports 11.4 channel processing capability, Pre- Amplifier mode, and optional Dirac Live upgradability (with fee).
Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional, with future update).
8K video is supported on all seven HDMI inputs and two of the three outputs. With HLG, HDR, Dolby Vision, HDR10+ and Dynamic HDR pass-through, there’s no need to worry about video compatibility or picture quality.
Read More
Read Less

Power Amplifier

Number of Power Amps

9

Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive)

125 W

Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)

165 W

Power Output (6 ohm, 1 kHz, 10% 1ch Drive)

200 W

Multichannel Surround

DTS HD Master / DTS:X / DTS:X Pro

Yes / Yes / No

DTS Neo:X / DTS Neural:X

No / Yes

DTS Virtual:X

Yes

IMAX Enhanced

Yes

Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music

Yes / Yes / Yes / Yes

Dolby ProLogic IIz / Dolby Surround

No / Yes

Auro 3D

Yes

360 Reality Audio / MPEG-H

Yes / Yes

Multichannel Stereo

Yes

Max. Number of Processing (Pre-Amp) Channels

11.4

Sound Enhancements

Discrete Power Amplifier

Yes

D.D.S.C. HD Digital

Yes (32 bit)

Pure Direct

Yes

Clock Jitter Reducer

Yes

Alpha Processing

AL32 Processing Multichannel

Audyssey MultEQ XT32

Yes

Audyssey Dynamic EQ / Dynamic Volume

Yes / Yes

Audyssey LFC

Yes

Dirac Live

Upgrade available

Compressed Audio Restorer

Yes

Network

Media Server

Yes

HEOS Wireless Multi-Room Technology

Yes

Alexa / Google Voice Assistant / Apple HomePod

Yes / Yes / Yes

Lossy Formats (MP3 / WMA / AAC)

Yes / Yes / Yes

Lossless Formats (FLAC / ALAC / WAV)

Yes / Yes / Yes

Lossless Formats (FLAC HD / WAV / ALAC 192kHz/24bit)

Yes / Yes / Yes

DSD Audio Streaming

Yes (2.8 / 5.6 MHz)

AirPlay 2

Yes

TuneIn

Yes

Spotify Connect

Yes

Roon Tested

Yes

HEOS App Control

Yes

Compatible Remote App

Denon 2016 AVR Remote

Ethernet Ports

Yes

Wi-Fi

Yes

Bluetooth

Yes

HDMI

HDMI Inputs (Back / Front)

7 / No

HDCP 2.3 Support

Yes

HDMI Outputs (Main / Zone 2)

1 / 1

HDMI 2.1 (8K/60Hz AB, 4K/120Hz AB)

Yes / Yes

HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR

Yes / Yes / Yes / Yes / Yes

ALLM (Auto Low Latency Mode)

Yes

Variable Refresh Rate / Quick Frame Transport / Quick Media Switching

Yes / Yes / No

3D Signal Pass-through

Yes

8K Signal Pass-Through / Scaling / GUI Overlay

Yes / Yes / Yes

DSD Audio Capability

Yes

Audio Return Channel (ARC) / Enhanced ARC

Yes / Yes

Auto LipSync

Yes

Multi-Room / CI

Multi-Room Zones

3

Zone Audio Source

HDMI (Yes 2ch) / Optical & Coax (Yes 2ch) / Network (Yes) / USB (Yes) / Analog (Yes)

Zone Audio Output (Speaker / Pre-Out)

Yes / Yes

Zone HDMI Output from HDMI Source

Yes

IP Control / RS232 Control / Web Control / App Control

Yes / Yes / Yes / Yes

Remote In / Out

Yes / Yes

DC Trigger Output

3

HDMI Diagnostics

Yes

Setup & Features

Auto Speaker Setup by Microphone

Audyssey MultEQ XT32

Dirac Live

Upgrade available

Front Display

2-Line FLD

GUI Languages

3

Setup Assistant

Yes

Quick Select Plus / Quick Select

Yes / No

Variable Crossover

Yes

Optimized Bass Redirection

Yes

Bass Sync

Yes

ECO Mode

Yes

Auto Power Off

Yes

Sleep Timer

Yes

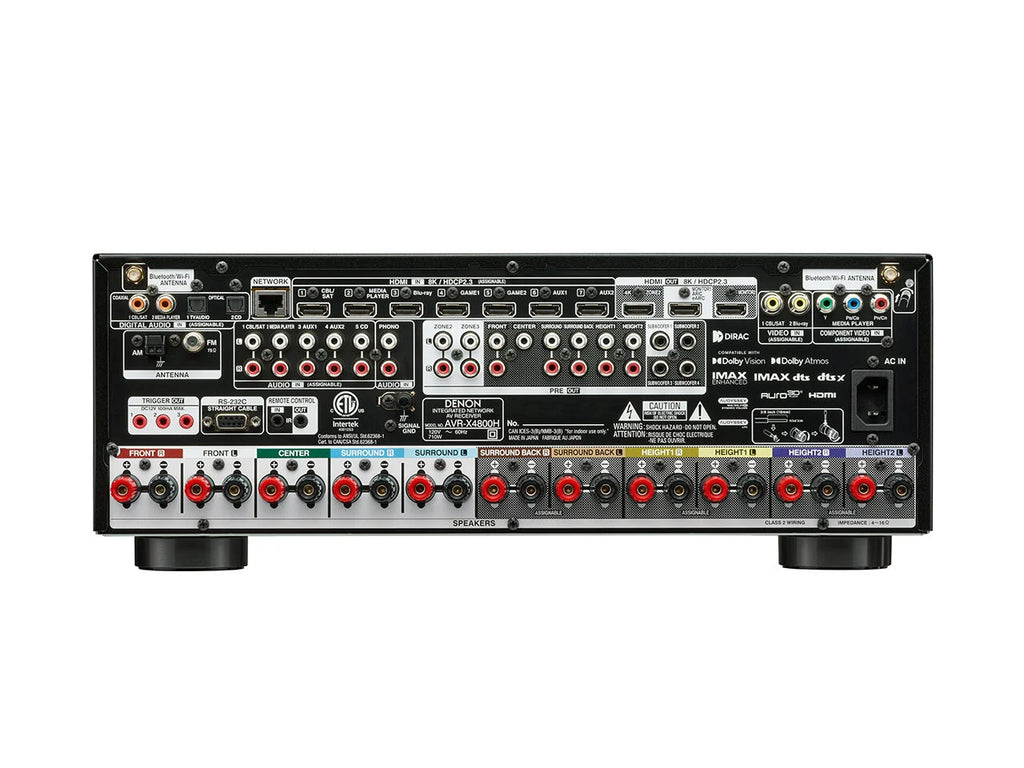

Inputs / Outputs

HDMI In / Out

7 / 3

Multi-Room Video Out (Video / HDMI)

No / Yes

Analog In / Out

6 / No

Phono (MM) In

Yes

Digital In (Optical / Coaxial)

2 / 2

Multi-Room Out (Analog / Digital)

2 / No

Multichannel Preout

Yes (11.4)

Subwoofer Out

4 (Independent)

Speaker Terminal (Gold-Plated Screw / Regular Screw)

No / Yes

Number of Speaker Terminals

11

Speaker A / B

Assignable

Bi-amp Drive

Assignable

Multi-Room Speaker Terminal

Assignable

Front Inputs (Audio / Composite / Digital Opt / HDMI / USB)

No / No / No / No / Yes

USB Audio / Made for iPod / Made for iPhone

Yes / No / No

AM / FM Tuner

Yes

General

Metal Front Panel

Yes

System Remote Control

RC-1252

Pre-Programmed / Learnable / LCD Display

Yes / No / No

Power Consumption

710 W

Power Consumption No-Sound (ECO On / Off)

65 W / 110 W

Standby Consumption

0.1 W

CEC Standby Consumption

0.5 W

Network Standby Consumption

Less than 2.0 W

Dimensions & Weight

Maximum Dimensions (Antenna Horizontal)

434 × 389 × 167 mm

Maximum Dimensions (Antenna Vertical)

434 × 389 × 236 mm

Dimensions (Without Antenna)

434 × 379 × 167 mm

Weight

13.4 kg

Carton Weight (Including Product)

16.0 kg
