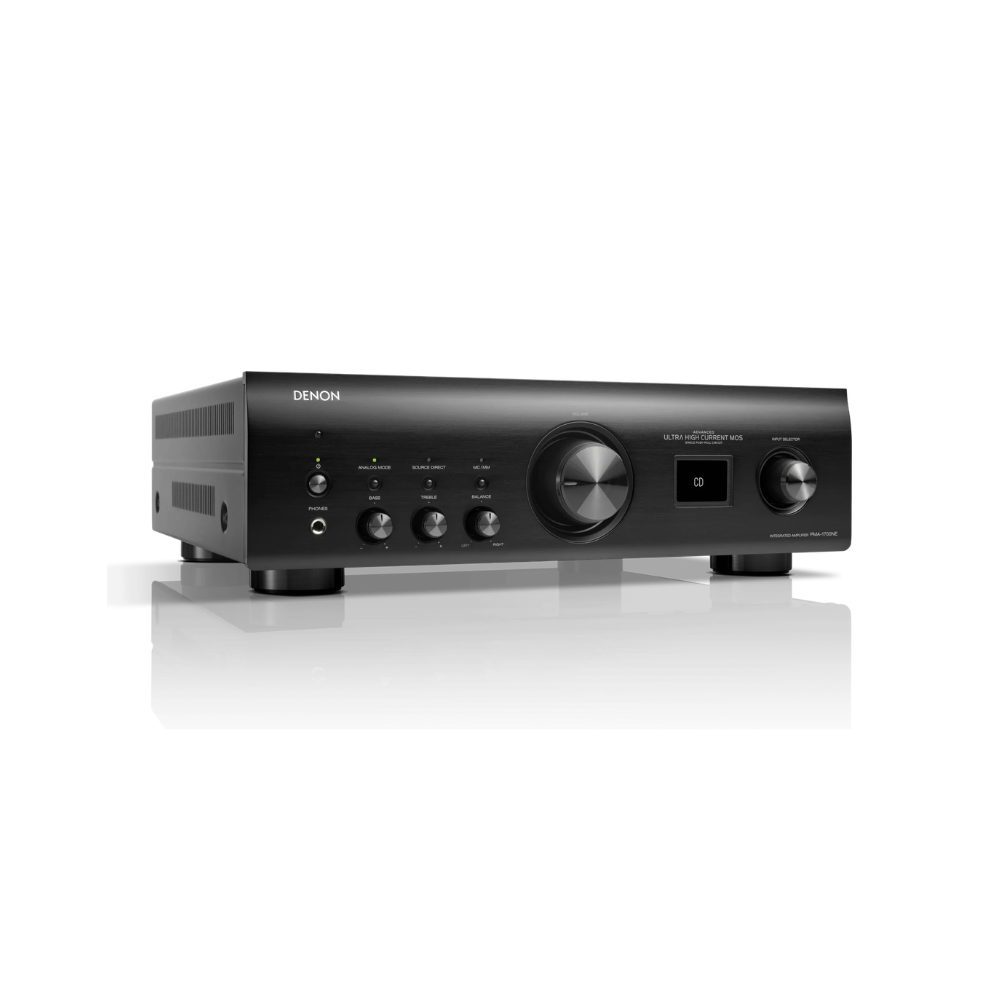

Denon PMA-1700NE
Denon PMA-1700NE
Denon PMA-1700NE
Click to zoom in

Denon PMA-1700NE

$2,999.00 $2,399.00
$2,399.00

Denon PMA-1700NE

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.

Features:

  • High-power 140W integrated amplifier
  • Advanced AL32 Processing Plus
  • USB-DAC supporting 11.2- MHz DSD and 384-kHz/32-bit PCM
  • MM and MC phono equalizer
  • High-precision electrical controls
  • Optical and coaxial digital inputs
  • External pre-amp input terminals
  • Six-block chassis configuration and direct mechanical ground construction
  • Build integrity with thoughtfully selected components

Powerful sound from an integrated amplifier

Engineered with premium Denon technologies, this amplifier drives two channels at 140W.

Faithful audio reproduction

Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.

Build integrity with selected components

With more than 110 years of audio excellence, Denon products are built to last.

Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.

Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.

To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.

The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.

SPECIFICATIONS:

  • Rated Output Power 70W + 70W
  • (8ohm,20Hz-20kHz,THD0.07%)
  • 140W + 140W
  • (4ohm, 1kHz, THD0.7%)
  • Speaker Impedance A or B : 4 ~ 16ohm
  • A + B : 8 ~ 16ohm
  • Frequency Response 5Hz - 100kHz (0~ -3dB)
  • Total Harmonic Distortion 0.01 % (Rated output: –3 dB),
  • 8 ohm/ohms, 1 kHz
  • Damping Factor 100 and over
  • Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm
  • MC: 200
  • RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
  • Phono Maximum Input MM : 130mV / 1kHz
  • MC : 10mV / 1kHz
  • Input Sensitivity: CD/LINE/RECORDER 125 mV / 19 kohm
  • Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
  • Signal to Noise Ratio PHONO (MM): (89dB)
  • PHONO (MC): (74dB)
  • CD: (107dB)
  • Tone Control BASS : 100Hz ±8dB
  • TREBLE : 10kHz ±8dB
  • Power Consumption 295W
  • at Standby 0.2W TV autoplay off
  • 0.4W TV autoplay on
