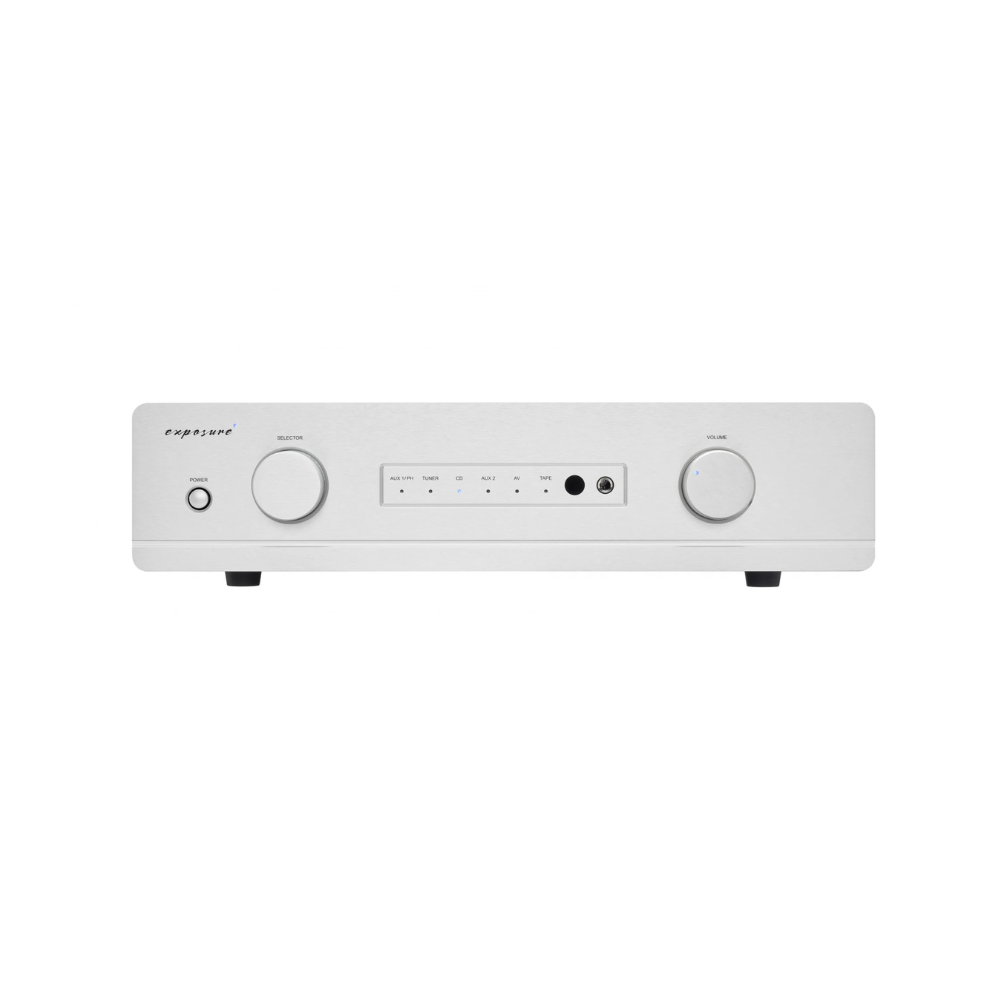

Exposure 3510 Integrated Amplifier

$4,299.00
$4,299.00

The Exposure 3510 Integrated Amplifier is built with high-quality components and advanced circuitry, ensuring a clean and transparent audio reproduction. With a power output of 110 watts per channel, this amplifier provides ample power to drive even the most demanding speakers, delivering a dynamic and engaging listening experience.

Features

  • 110 watts RMS per channel into 8 Ohms, 220 watts RMS per channel into 4 Ohms
  • Six line inputs
  • Option to fit a MC or MM phono module OR plug in DAC option
  • Bi-wiring compatible
  • Separate pre-amp output
  • High quality capacitors used in the signal path
  • Uniquely tuned short signal and power supply path PCB
  • Cascode circuitry utilised for improved power supply immunity
  • Fast bipolar transistor output stage for dynamic and vivid performance
  • All aluminium casework and extruded front panel to control resonance and stray electro-magnetic fields
  • Remote control
  • Three-year guarantee
  • Available in black or titanium

Specifications



Outputs

Power Output (Stereo): 110 Watts per channel at 1KHz into 8 Ohms



Pre-Amplifier

Pre-amplifier Output: 1.9V for rated input (gain + 18dB full volume)

Maximum Output: 7.7V RMS at 1kHz

Frequency Response : 20Hz - 20KHz ± 0.5dB

Total Harmonic Distortion : <0.03% at rated output, ref. 1KHz

Signal to Noise Ratio: >100dB, ref. rated output

Channel Separation: >60dB, 20Hz - 20KHz



Headphone

Output Impedance: <12 Ohms at 1kHz

Maximum Level into 33 Ohms at 1kHz & 0.05% THD: 4.8V RMS, (700mW)

Total Harmonic Distortion at 2V Output 1kHz: <0.02%, (120mW)

Maximum Level into 330 Ohms at 1kHz & 0.02% THD: 7V RMS (150mW)

Total Harmonic Distortion at 2V Output 1kHz: <0.015%, (12mW)


Inputs (Line)

Input Impedance: 17K Ohms minimum (line input)
Input Sensitivity: 250mV


General

Mains Supply: 220/240V, 50/60Hz (factory set)
Power Consumption: 400W, 8 Ohms load, both channels driven
Dimensions - H x W x D: 115mm x 440mm x 300mm
Nett Weight (unpacked): 12kg
Gross Weight (packed): 14kg
