Data sheet

Exposure VXN Phono Amplifier

Features

• All audio circuits using discrete transistors only - no ICs in the signal path

• Very low noise power supply regulators used with multiple stages of regulation

• High quality resistors & capacitors used in signal path

• Very high quality Polypropylene capacitors used in critical areas of the RIAA equalisation

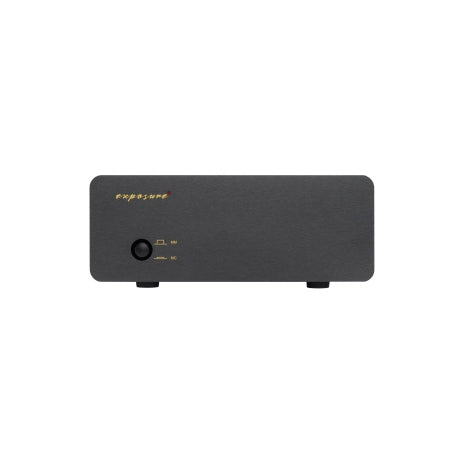

• Separate MM & MC inputs selectable on the front panel

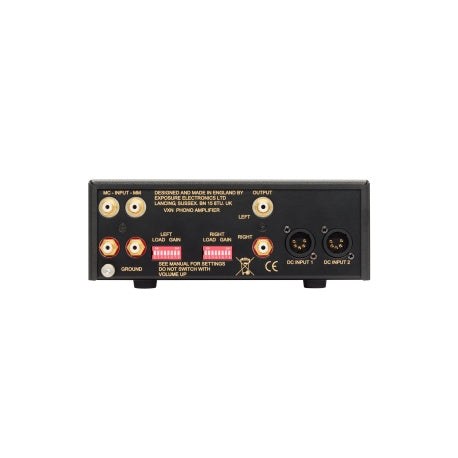

• Adjustable loading & gain switches on the back panel

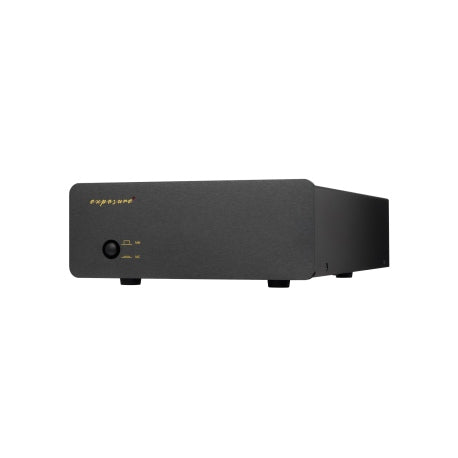

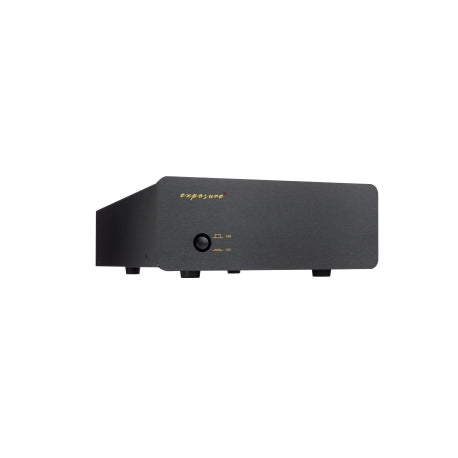

• High quality all aluminium case work and extruded front panel

• Three year guarantee

• Available in black only

Specifications

Outputs

• Nominal output (depends on gain setting) : Maximum Output: 500mV

• Output Impedance: 50 Ohms

• THD @ 1 kHz, ref 500mV output: 7.8V @ 1kHz

• Frequency Response : 30Hz - 20kHz within +/- 0.25dB ref 1kHz with low frequency roll off below 30Hz

Moving Magnet Input

• Sensitivity : 5mV input for 500mV output, 40dB gain setting

• Signal to Noise Ratio : ref 1kHz & 500mV out (A weighted) : >82dB

 Moving Coil Input

• Sensitivity : 500uV input for 500mV output, 60dB gain setting

• Signal to Noise Ratio : ref 1kHz & 500mV out (A weighted) : >72dB

General

• For use with VXN Power Supply only Power Consumption : <10W

•Dimensions (HxWxD) : 89mm x 218mm x 348mm

• Net Weight : 2kg

• Gross Weight : 3kg
