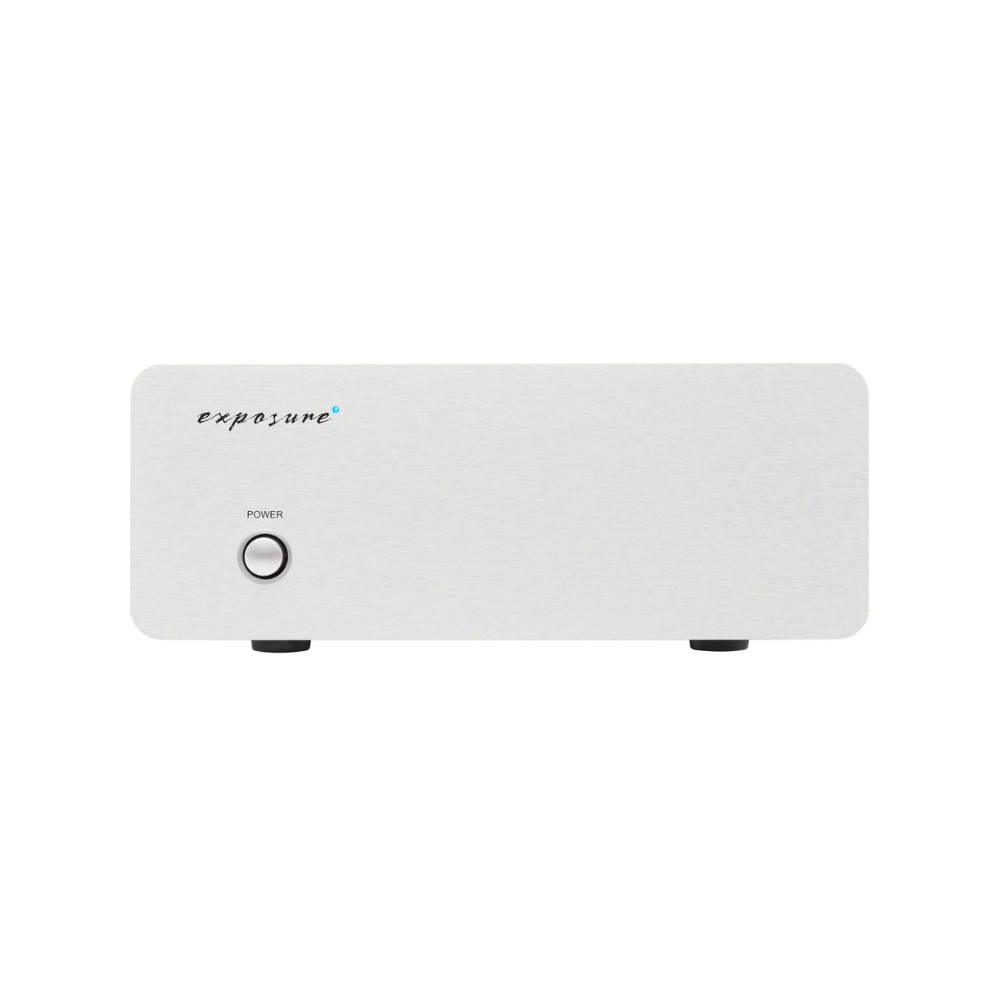

Exposure XM3 Phono Stage

$1,999.00
$1,999.00
Exposure XM3 Phono Stage
Black - $1,999.00
Description

Features

  1. Large 200VA custom made toroidal transformer for power supply
  2. Multiple power supply capacitors in parallel for low ESR
  3. All discrete transistor audio stages
  4. High quality resistors capacitors used in the signal path
  5. Separate MM MC inputs selectable on the back panel
  6. Adjustable loading gain switches on the back panel
  7. High quality all aluminium case work and extruded front panel
  8. Five year guarantee
  9. Available in black or titanium
Read More
Read Less

Moving Magnet Input

Sensitivity

3.5 mV input for 350 mV output, 40 dB gain setting

Signal to Noise Ratio (ref. 1 kHz, 350 mV out)
  • Gain Switch 4 ON: 70 dB
  • Gain Switch 4 OFF: 78 dB

Moving Coil Input

Sensitivity

350 µV input for 350 mV output, 60 dB gain setting

Signal to Noise Ratio (ref. 1 kHz, 350 mV out)

67 dB A-weighted (all gain switches 4–6)

General Specifications

Frequency Response

30 Hz – 20 kHz within 0.25 dB (ref. 1 kHz), with low-frequency roll-off below 30 Hz

Total Harmonic Distortion @ 1 kHz (ref. 350 mV out)

0.025% (MC input)

Maximum Output Voltage

7.8 V RMS @ 1 kHz

Output Impedance

50 ohms

Mains Supply

110/120 V or 220/240 V @ 50/60 Hz (factory set)

Power Consumption

25 W

Dimensions (W × H × D)

218 mm × 89 mm × 348 mm

Net Weight (unpacked)

4 kg

Gross Weight (packed)

5 kg
