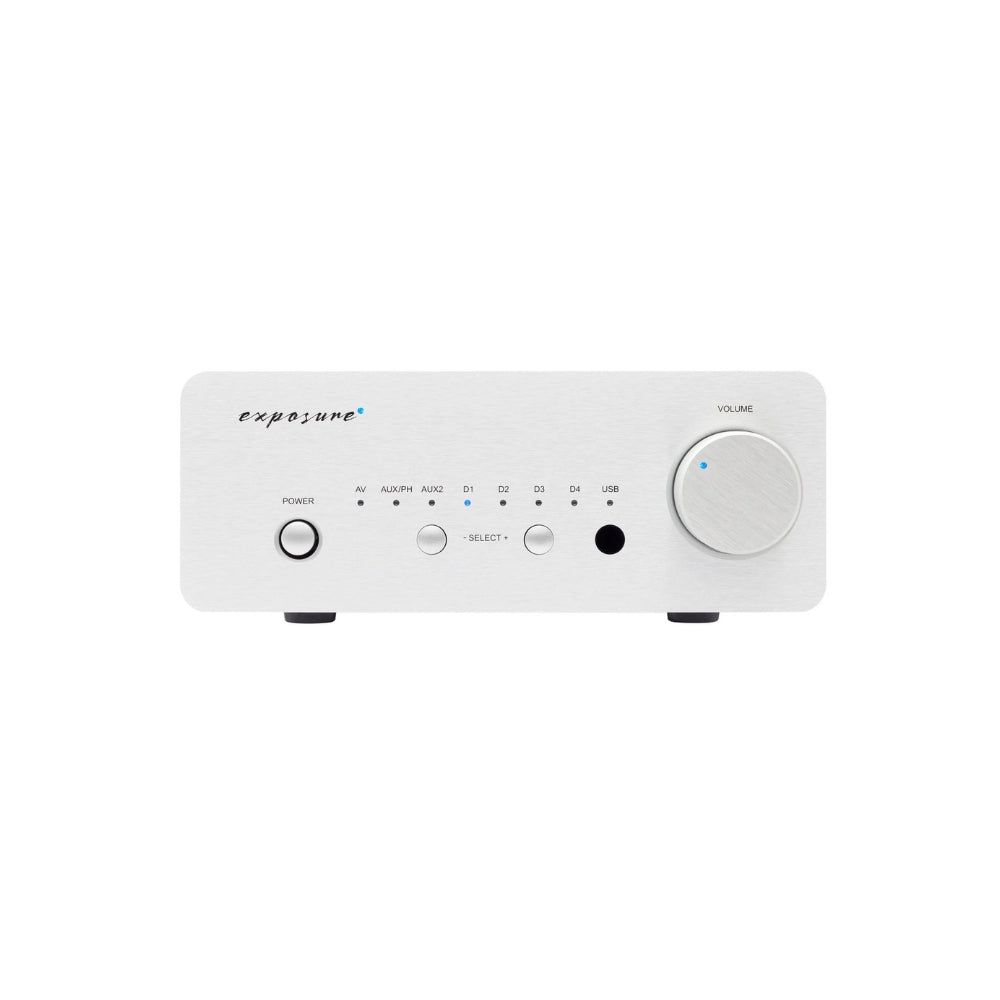

Exposure XM5 Integrated Amplifier

1. Large 200VA custom-made toroidal power transformer
2. High quality all aluminium casework and extruded front panel
3. High quality resistors & capacitors used in the signal path
4. Cascode circuitry utilised for improved power supply immunity
5. Toshiba bipolar output transistors for dynamics and performance
6. 60 watts per channel into 8 Ohms
7. Moving magnet phono input, fixed level AV input and one line level input
8. Two coax ( bnc) and two optical inputs and one class 2 USB input with DSD
9. Separate pre-amp output
10. Remote control
11. Five-year guarantee
12. Available in black or titanium

Specifications

• Speaker Output Specifications

  • Power Output (1KHz) : 60 Watts per channel into 8 ohms
  • Total Harmonic Distortion : 0.01% at 1KHz, rated power
  • Frequency Response : 20Hz - 20KHz 0.5dB
  • Channel Separation :60dB @ 1KHz AUX 2 input open (shorted 80dB)40dB @ 20KHz AUX 2 input open (shorted 63dB)

  Pre Amplifier Specifications

  • Pre Amplifier Ouput : Gain +12dB
  • Frequency Response : 20Hz - 20KHz 0.5dB
  • Total Harmonic Distortion :@ 1KHz: 1V ouput : 0.002%
  • Signal to Noise Ratio ref 1KHz 1V ouput :100dB, A weighted
  • Channel Separation @ 20KHz :62dB input shorted 41dB input open AUX 2 input

• Input Specifications

  • AV input fixed level : 450mV @ 1KHz 12K ohms S/N ; 100dB
  • AUX/PH input MM : 2.5mV @ 1KHz, 47K ohms S/N 70dB
  • AUX 2 input Line : 350mV @ 1KHz 14K ohms S/N 100dB
  • SPDIF inputs BNC Coax Optical : 32 - 192KHz @ 16-24 bits
  • USB input : Linear PCM 44K1 - 192KHz @ 16-24 bits DSD x64 (DoP) Asynchronous transfer from host

  General Specifications

  • Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
  • Power Consumption : 200W both channels driven, 8 ohms load
  • Dimensions (WxHxD) : 218mm x 89mm x 363mm (inc knob)
  • Net Weight (unpacked) : 5kg
  • Gross Weight (packed) : 6kg
