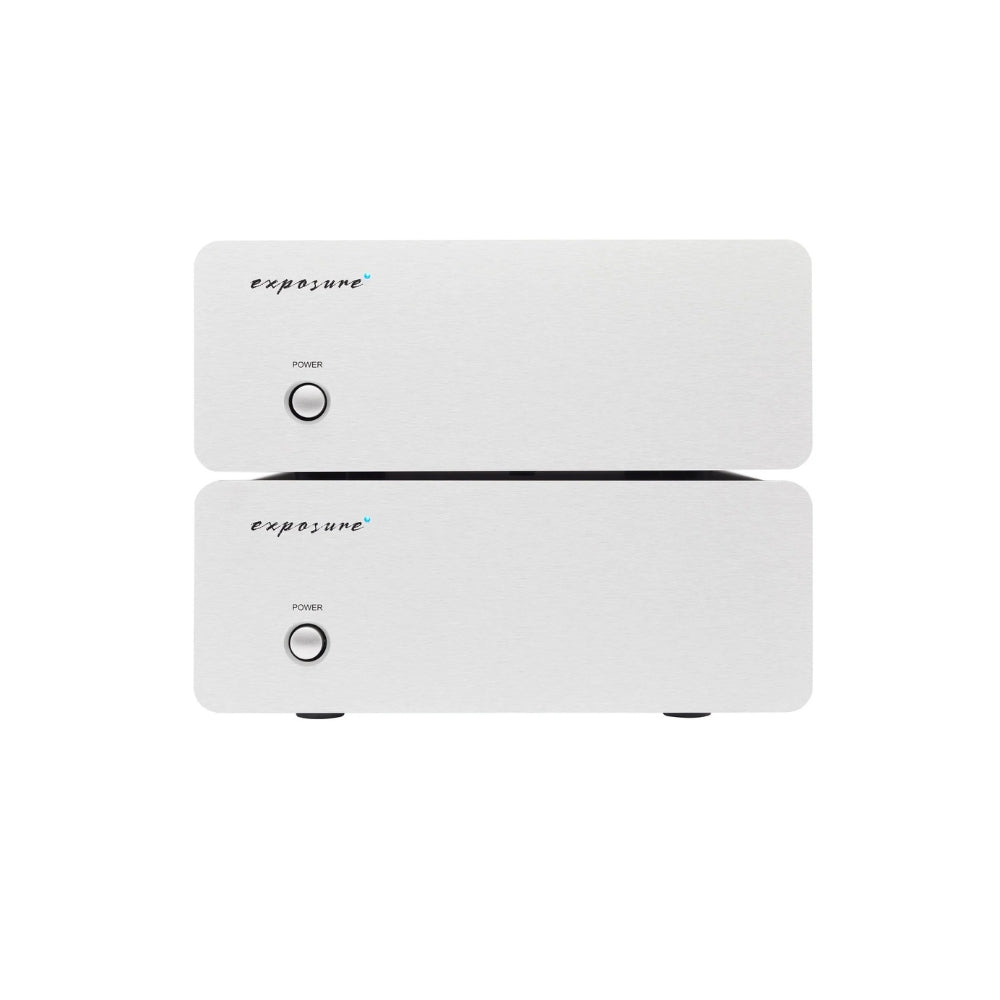

Exposure XM9 Mono Power Amplifier
$3,699.00
"
XM9 Mono Amplifier
Features
- Large 200VA custom-made toroidal power transformer
- High quality all aluminium casework and extruded front panel
- High quality resistors & capacitors used in the signal path
- Cascode circuitry utilised for improved power supply immunity
- Toshiba bipolar output transistors for dynamics and performance
- 80 watts per channel into 8 ohms
- Unbalanced & balanced input selectable by internal link
- DC coupled throughout
- Electronic, non invasive current overload protection
- Bi-wire speaker outputs using high quality shrouded sockets
- Three year guarantee
- Available in black or titanium
Specifications
-
General Specifications
- Power Output (1KHz) : 80 watts per channel into 8 ohms
- Total Harmonic Distortion : @ 1KHz, rated power : 0.005%
- Frequency Response : 20Hz - 20KHz .5dB
- Input Sensitivity, Unbalanced ref 1KHz rated output : 1.6V RMS
- Gain : Unbalanced input x16, 24dB @ 1KHz
- Input Impedance, Unbalanced : 77K ohms
- Signal to Noise, Unbalanced, ref 1KHz rated output : 95dB
- Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
- Power Consumption : 200W
- Dimensions (WxHxD) : 218mm x 89mm x 363mm (inc knob)
- Net Weight (unpacked) : 5kg
- Gross Weight (packed) : 6kg
