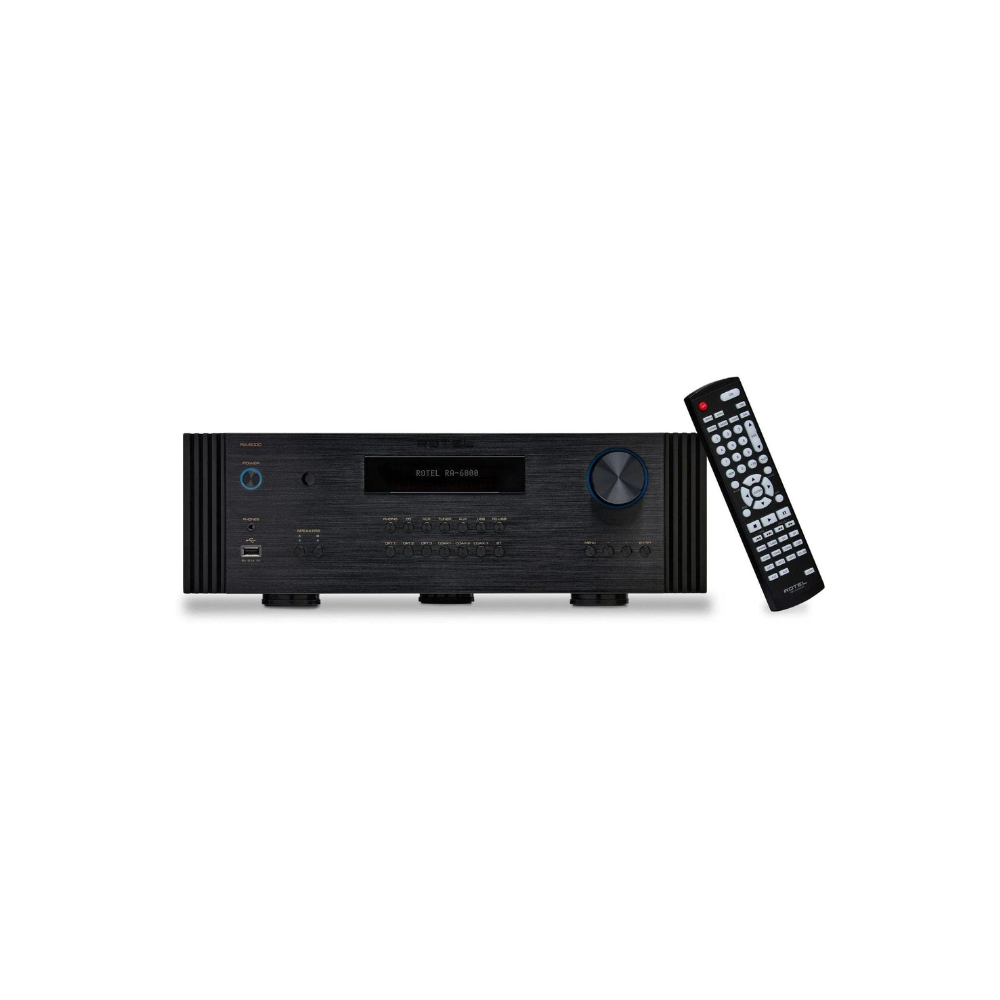

Rotel RA-6000 Diamond
Rotel RA-6000 Diamond
Click to zoom in

Rotel RA-6000 Diamond

$6,499.00 $3,239.00
$3,239.00

Rotel RA-6000 Diamond

Features

  • Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested.  A Moving Magnet Phono stage is also included for vinyl fans.
  • Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation.
  • Ethernet, RS232,12V trigger and external remote input simplify integration with control systems.
  • The RA-6000 is available in both black and silver colours.

The Rotel Diamond Series RA-6000 Integrated Amplifier celebrates 60-Years of heritage and tradition delivering performance, passion, and value synonymous with the brand’s iconic Japanese heritage. The RA-6000 supports an exceptional array of modern and legacy sources with RCA (3), XLR, Moving Magnet Phono stage for vinyl fans, aptXTM HD and AAC wireless Bluetooth, Coaxial (3), Optical (3), and asynchronous PC-USB inputs.

Conveniently packaged in the elegant Diamond Series industrial design the RA-6000 delivers 350 watts of robust, Class AB output power into 4 ohm speakers. An in-house manufactured toroidal transformer feeds dedicated power to all critical circuits utilising high efficiency, low ESR slit-foil smoothing capacitors delivering an abundance of ripple free, reserve power and current with exceptional control of rich, deep bass energy.

Physical and electrical isolation techniques are utilised in the digital and high gain amplifier circuits reducing noise in the highly sensitive analog stages further lowering the noise floor and reducing distortion.

Digital sources are processed via a premium 32-bit/384kHz Texas Instruments Digital-Analog converter extracting the finest of details portrayed on an immersive sound stage. Coaxial and Optical inputs support 24-bit/192kHz PCM audio. The PC-USB input renders up to 32-bit/384kHz high resolution music files, unfolds and renders MQA and MQA Studio, and is fully certified Roon Tested for the highest compatibility with Roon software.

Front panel controls, a back-lit IR remote control and 2-line display provide intuitive operation of the unit.



SPECIFICATIONS


DIMENSIONS (W × H × D)
431 × 144 × 425mm

FRONT PANEL HEIGHT
3U / 132.6mm

POWER REQUIREMENTS
230v, 60Hz

POWER CONSUMPTION
500W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
18.81kg

BTU (4 ohms, 1/8th power)
1239 BTU/h

MAXIMUM POWER OUTPUT
350W/Ch (4Ω)

CONTINUOUS POWER OUTPUT
200W/Ch (8Ω)

TOTAL HARMONIC DISTORTION
 (THD)
<0.0075%

FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, ±0.5dB
Digital Inputs:
10Hz - 90kHz, ±2dB
Phono Input:
20Hz - 20kHz, ±0.5dB

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 103dB
Digital Inputs: 102dB
Phono Input: 80dB

INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
600

INPUT SENSITIVITY
Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Digital Inputs: 0 dBfs
Phono Input (MM): 5.2mV
INPUT IMPEDANCE
Line Level Inputs (RCA): 5.6kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

INPUT OVERLOAD
Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 4.5V
Phono Input: 52mV

PREOUT LEVEL
1.9V
OUTPUT IMPEDANCE
100Ω

COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested

Ethernet, RS232,12V trigger and external remote input ensure simplified integration with all popular control systems.
