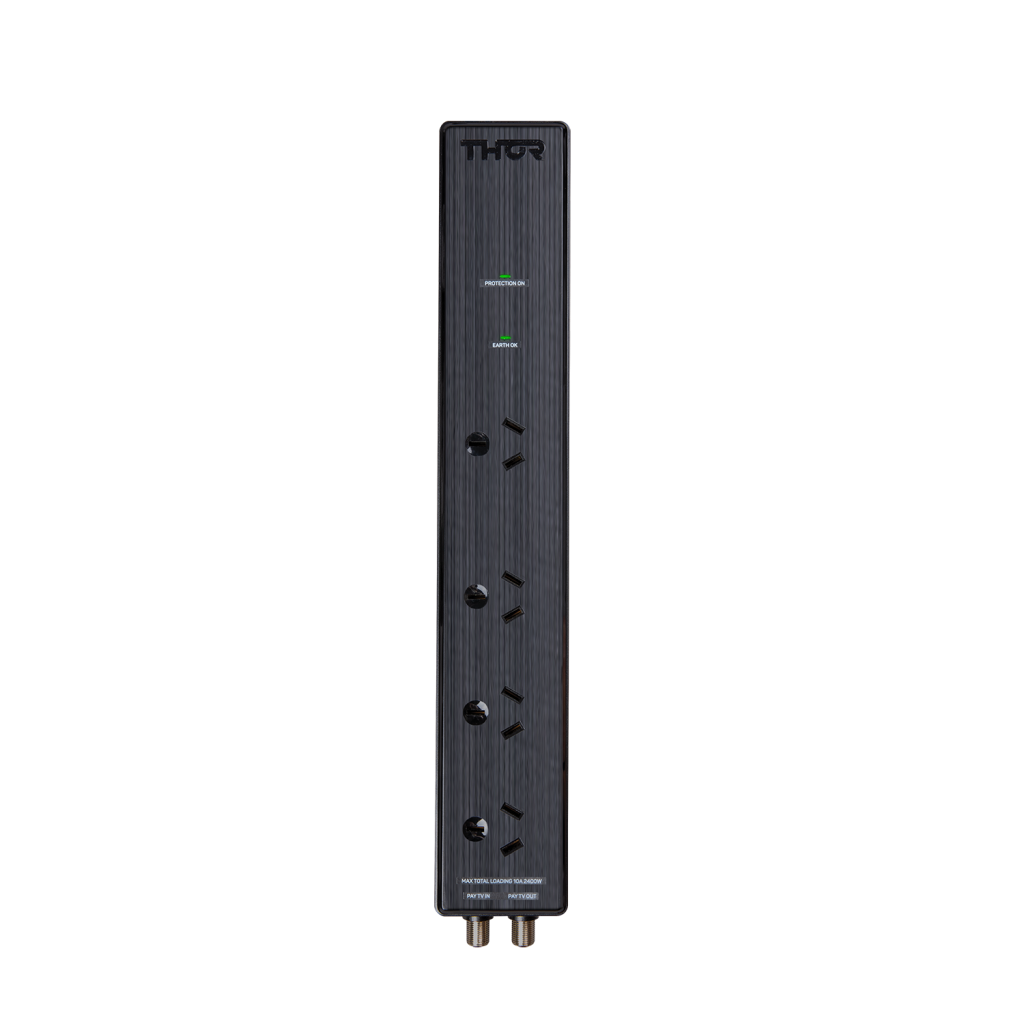

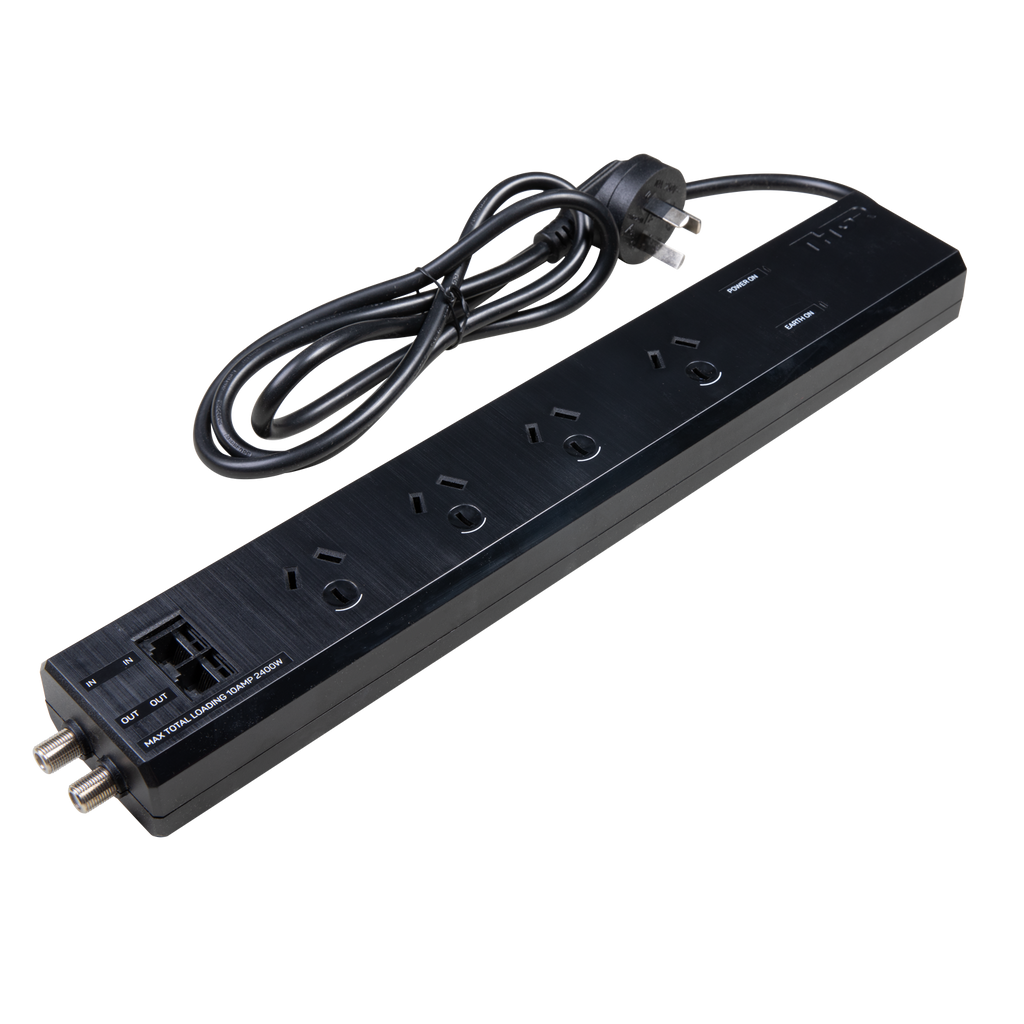

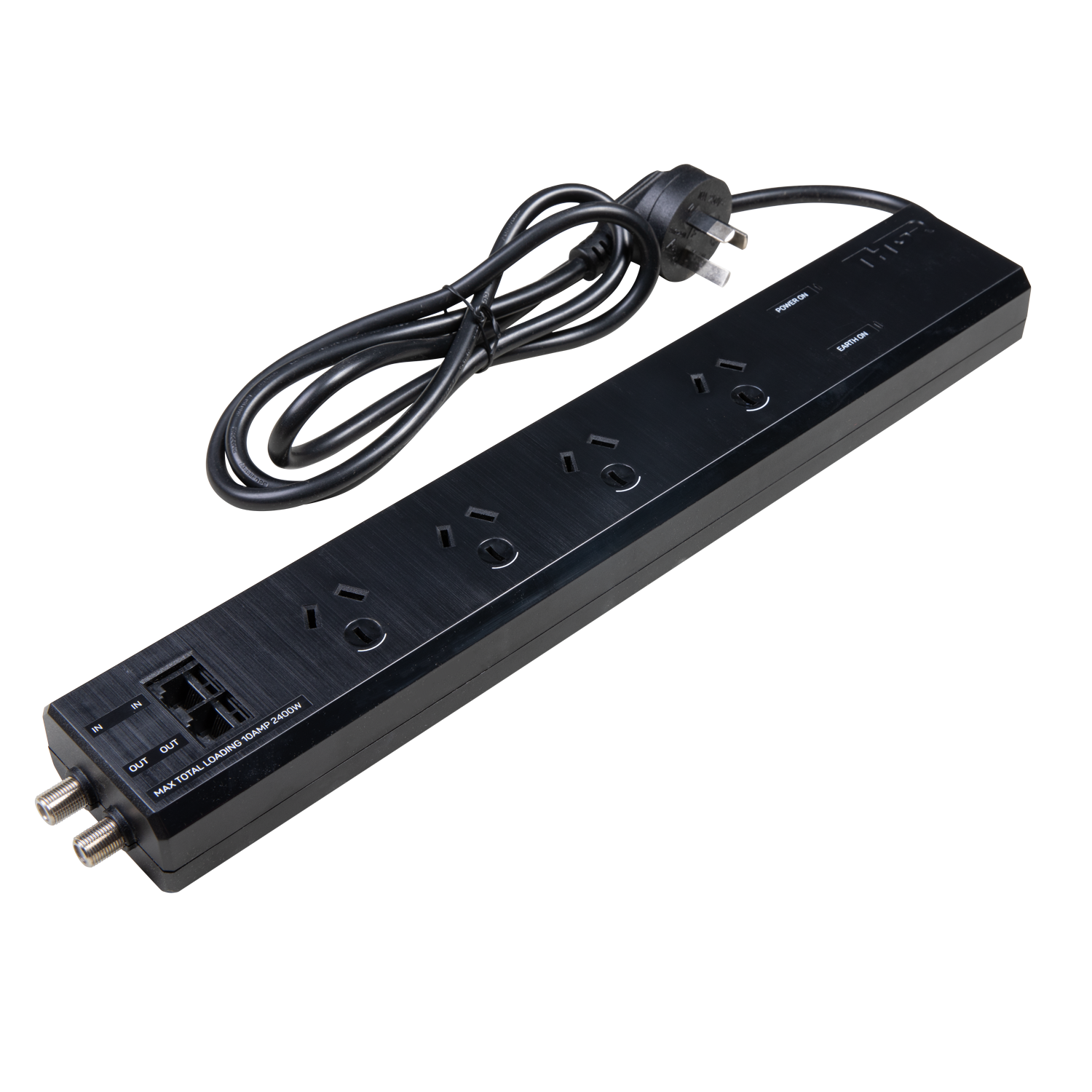

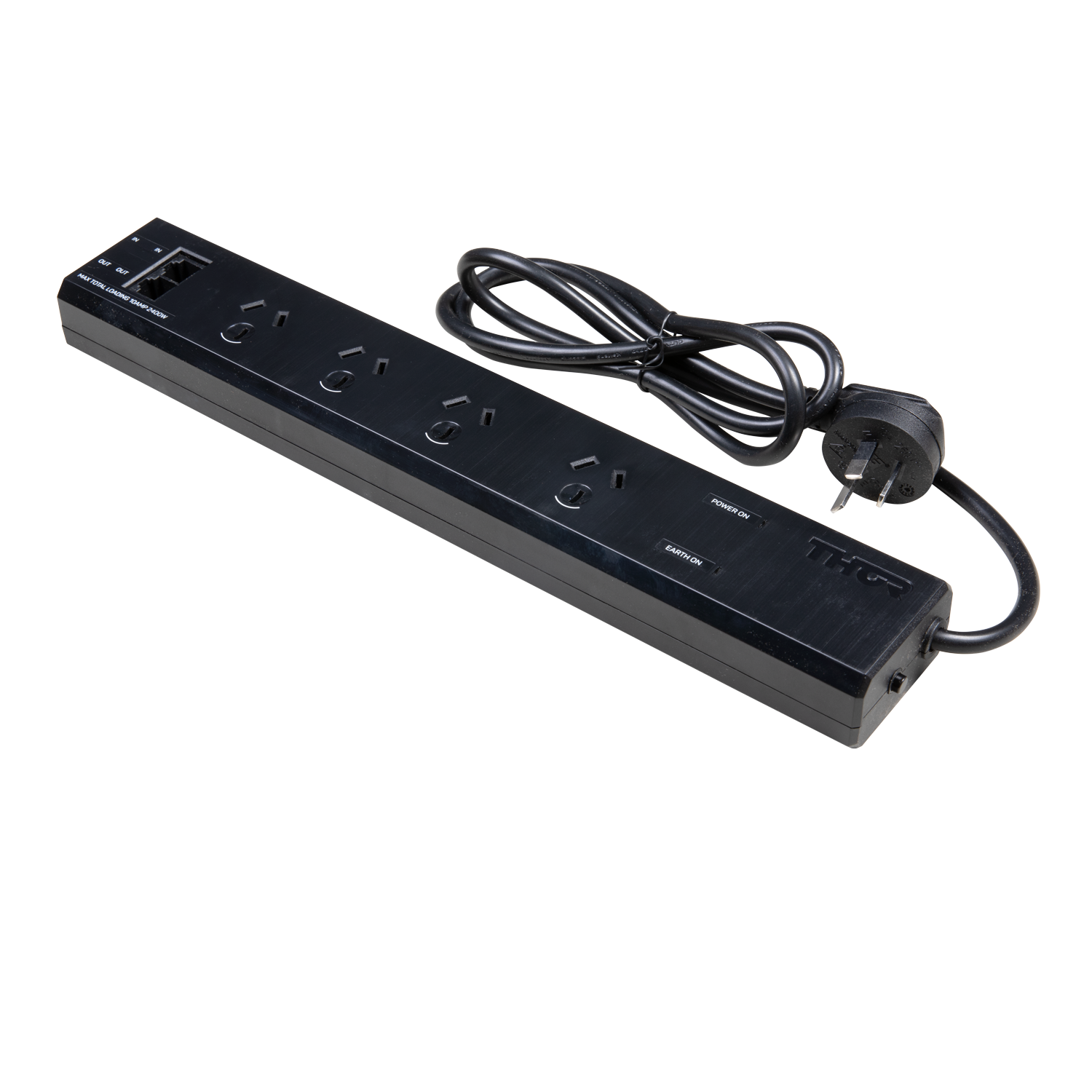

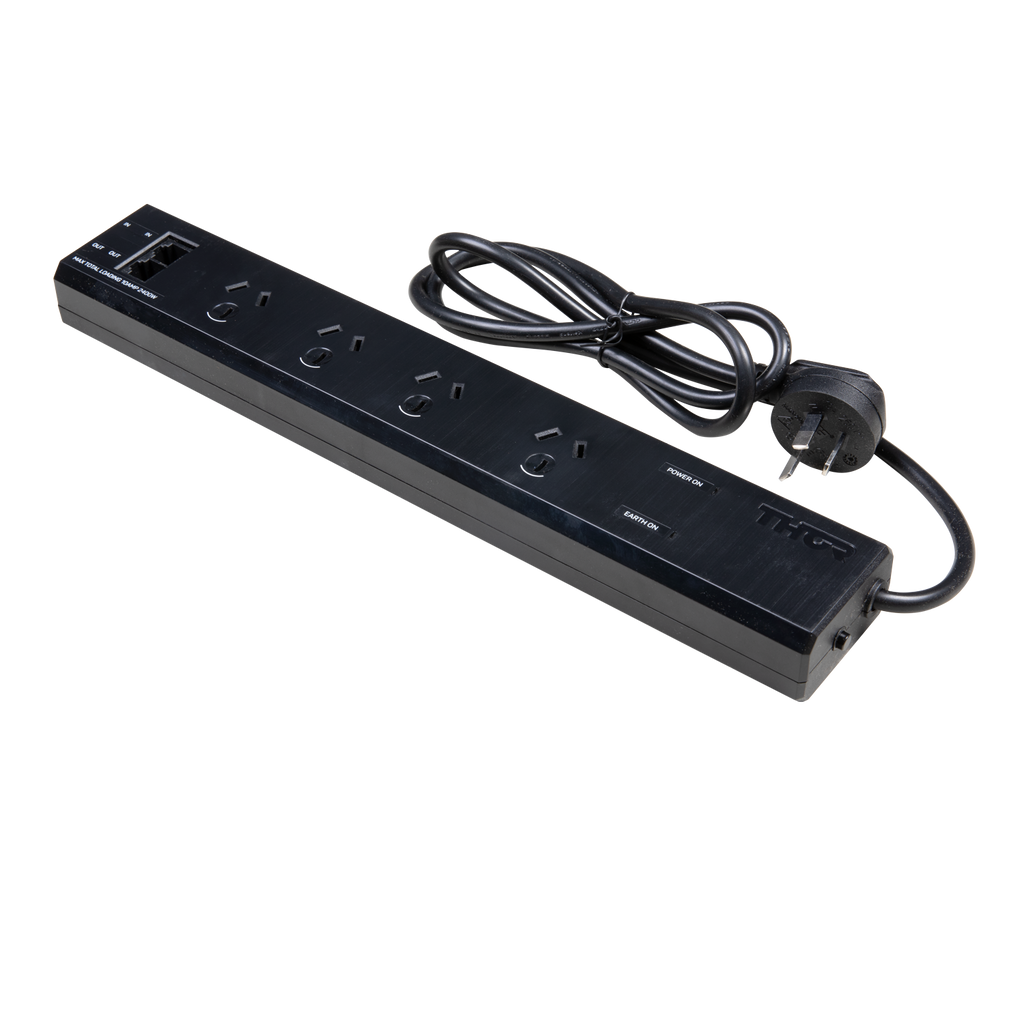

Thor E1/45A – 4 Way Filtered Board
Thor E1/45A – 4 Way Filtered Board
Thor E1/45A – 4 Way Filtered Board
Thor E1/45A – 4 Way Filtered Board
Thor E1/45A – 4 Way Filtered Board
Thor E1/45A – 4 Way Filtered Board
Click to zoom in

Thor E1/45A – 4 Way Filtered Board

$149.00 $139.00
$139.00

Thor E1/45A – 4 Way Filtered Board

Inside the Brain

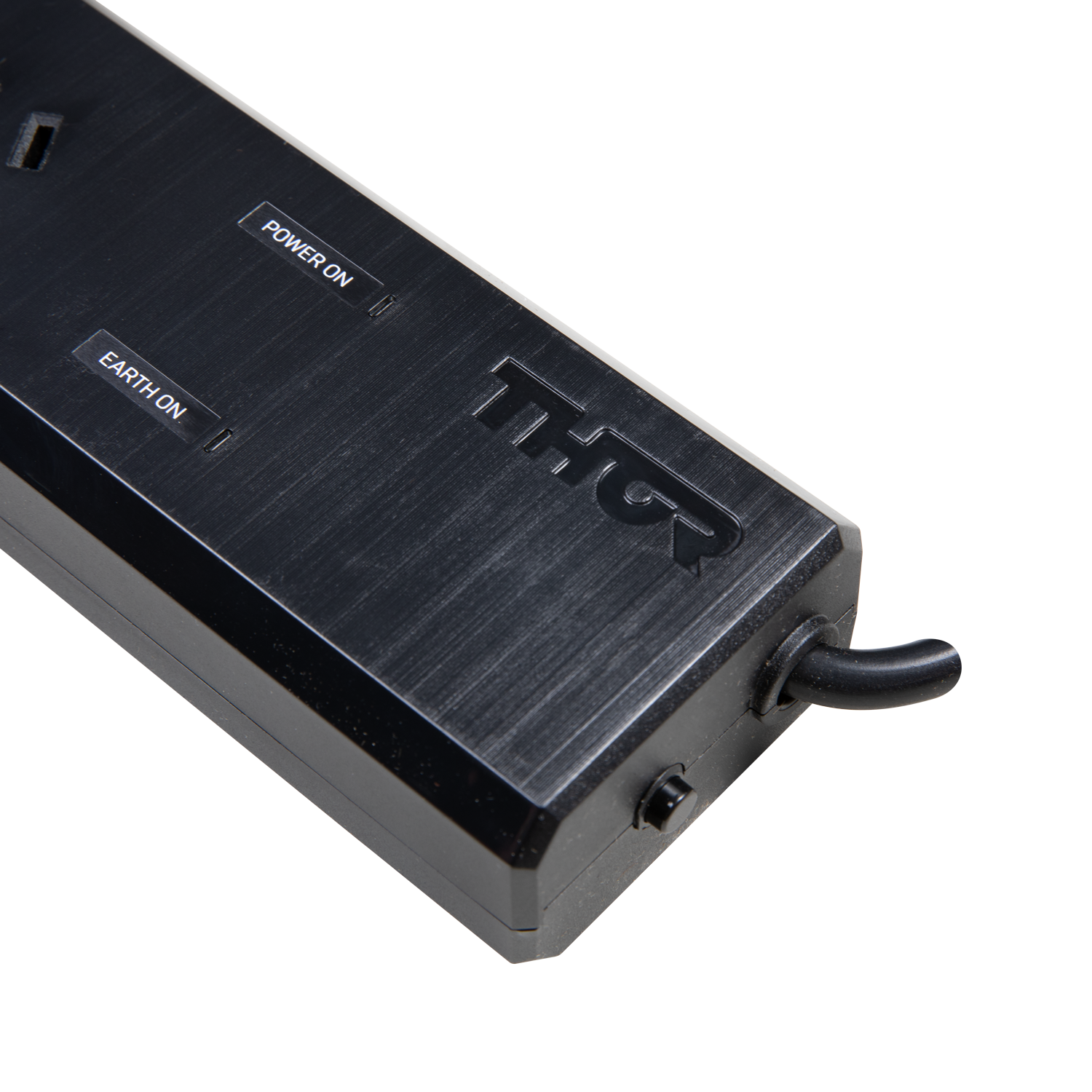

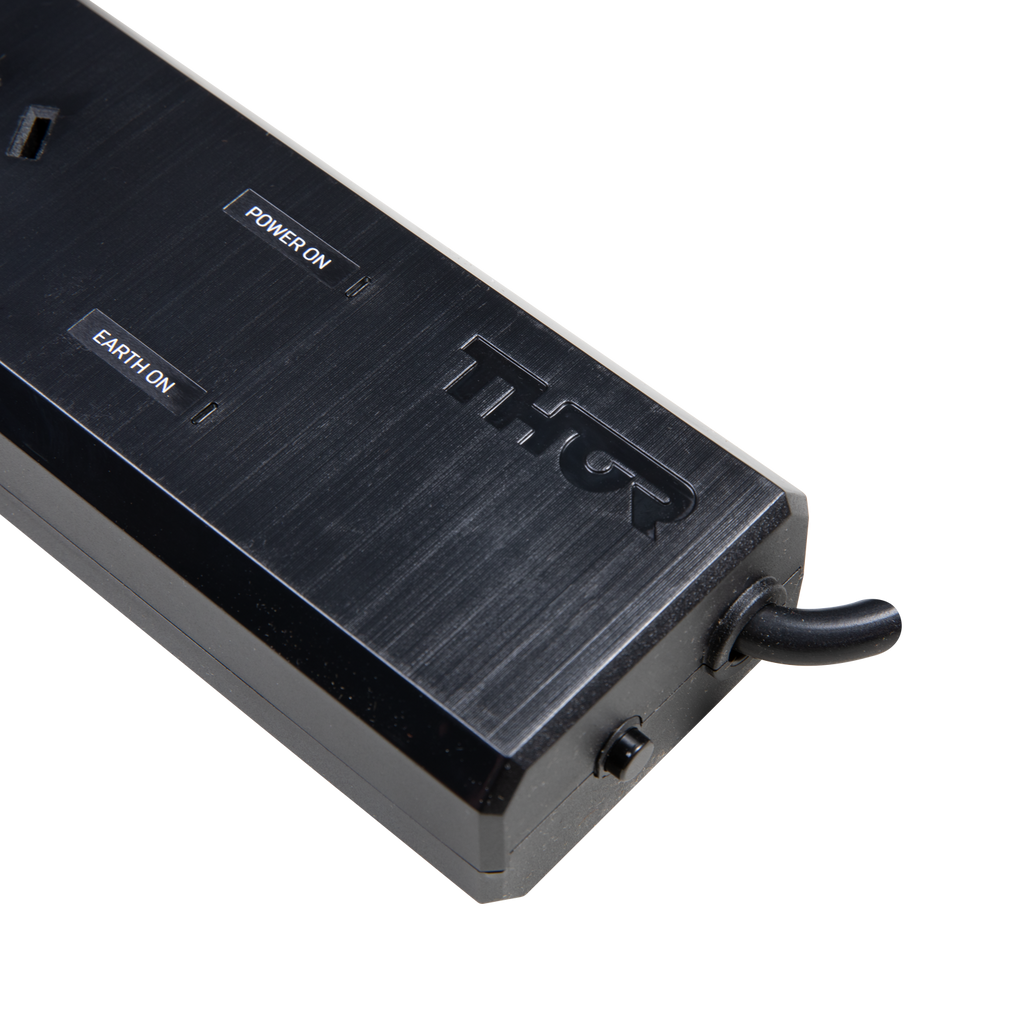

All serious power protection diverts excess energy to earth first. If there is good earth connection then the protector will last longer. E1/45S has an earth detection LED for this reason. SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.

Features

  • 4 PROTECTED OUTLETS
  • ANTENNA PROTECTION
  • DATA/VOICE PROTECTION
  • LARGE PLUG ADAPTOR
  • 1.2 m CABLE LENGTH
  • FIRE RETARDENT
  • 1 NANO SECOND REACTION TIME
  • 6 YEAR REPLACEMENT WARRANTY

CLEVER PROTECTION FOR SMART TECHNOLOGY

SmartProtect 4 does more than protect your valuable electronic equipment. The space saving design now means you can have surge protection and filtration anywhere.

The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound.
Read More
Read Less

PRODUCT SPECIFICATIONS

Product Dimensions

• 360 mm (L) × 35 mm (H) × 60 mm (W)

Supply Voltage

• 230–240 V AC / 50 Hz

Maximum Current Rating

• 10 Amps / 2400 W (VA)

Reaction Time

• Less than 1 nanosecond

Clamping / Let-Through Voltage

• 510 VAC

Maximum Energy Dissipation

• 2115 Joules
• Equivalent to 705 Joules (UL1449 standard)

Protection Modes

• All 4 outlets protect on all 3 conductors
• Active / Neutral
• Active / Earth
• Neutral / Earth

EMI / RFI Noise Reduction

• EMI / RFI noise reduction filter type

Total Protected AC Outlets

• 4

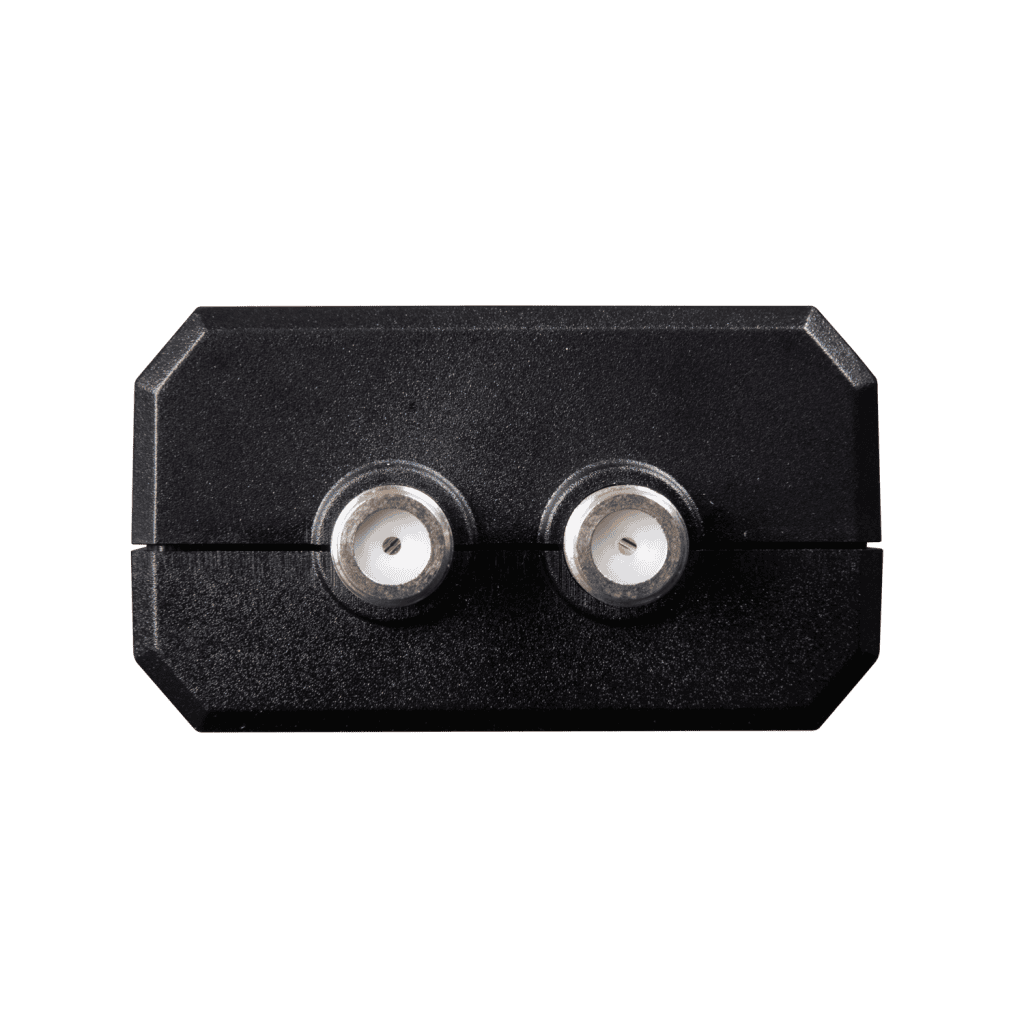

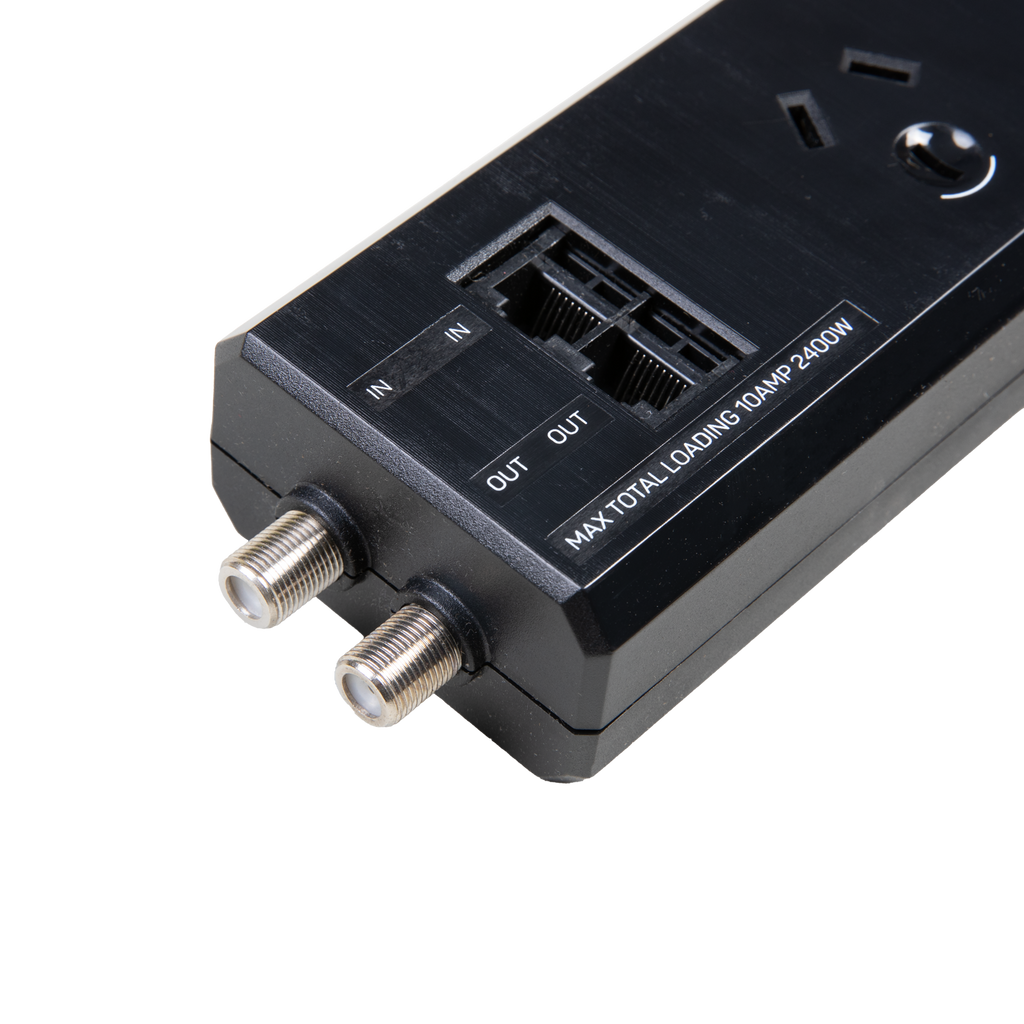

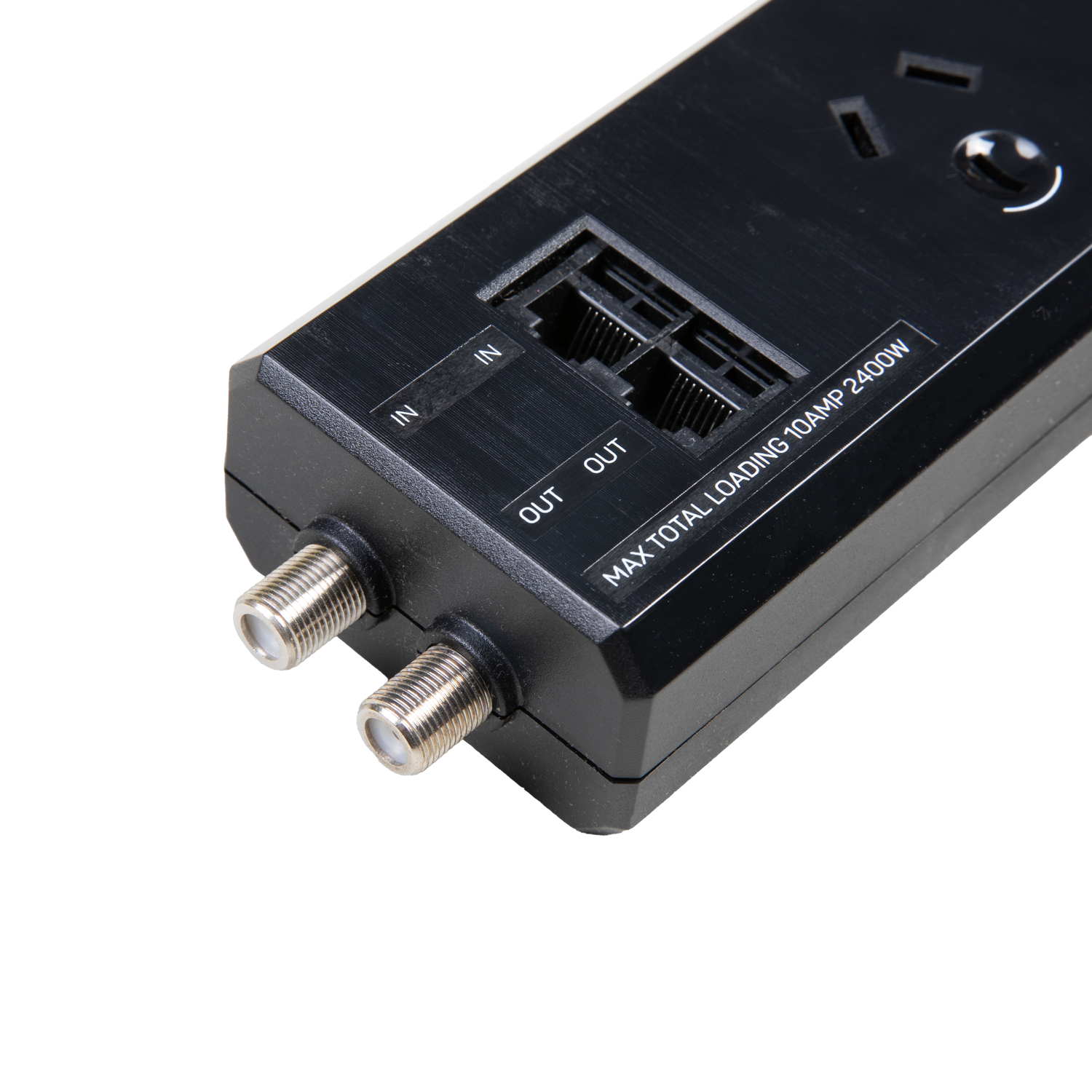

Antenna ‘F’ Type Connection

• 1 input
• 1 output

RJ45 Data Protection

• 1 input
• 1 output

Earth Potential Rise Protection

• Yes

Earth Leakage Range

• Less than 1 milliamp

Operating Conditions

• Indoor use
• AC mains

Operating Temperature Range

• −10°C to +60°C

Cable Length

• 1.2 m

Model Number

• E1/45A
